AV Receivers Lectrosonics

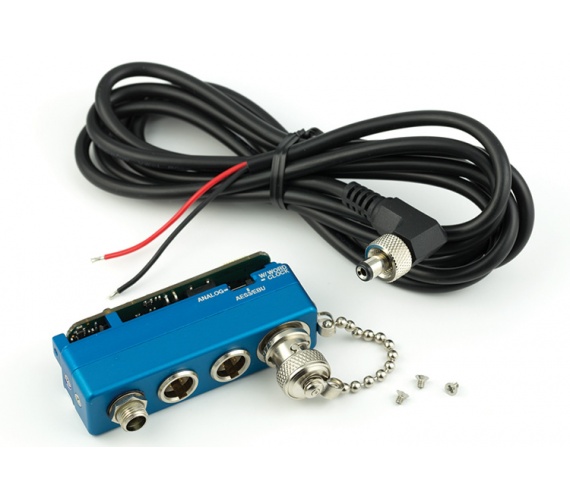

The output of any SR Series receiver can be delivered in analog or digital audio formats using this adapter. The unit will work with all receiver versions to provide audio in the following formats:AES3 digital audio at 48 kHz sampling with an internal clockAES3 digital audio with an external word clock at 44.1, 48 or 96 kHz samplingBalanced analog audio from - 50 dBu to +5 dBu in 1 dB steps Lectrosonics SRAES3 Adapter with AES3 and Analog Outputs for SR Series Receivers.

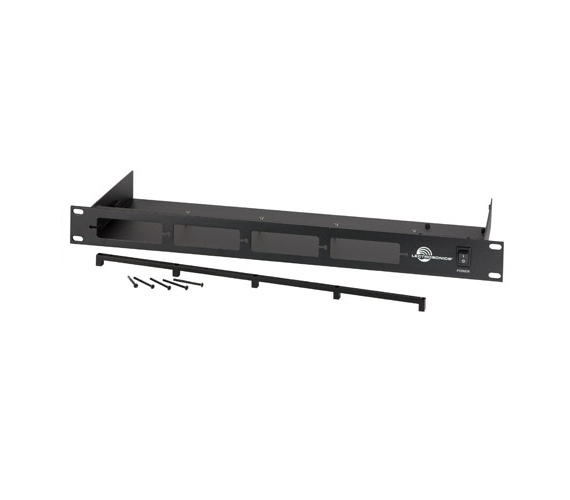

4-channel rack mount for up to four DR175, R175, UCR195/D, UCR200/205/300D, UCR210/310D, UCR211 and UCR411a receivers. Lectrosonics RMP195 4-Channel Rack Mount for Select Wireless Receivers.

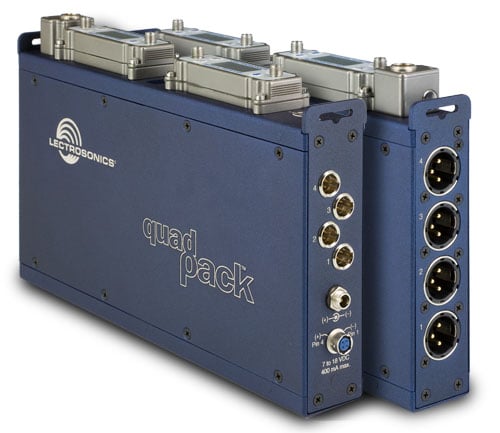

Designed for portable field production, Lectrosonics' Quadpack simplifies the mounting and interconnection of two SRa Series compact receivers. Lightweight and rugged, it is perfectly at home in bag systems containing mixer, recorder and wireless transmitters used for audio feed to cameras. One set of audio outputs is used to feed the recorder and the other set to feed wireless transmitters.Power is taken from an external DC source via one or both connectors. Circuitry is employed between the two jacks that takes power from the source with the higher voltage. This can be used to provide a backup power supply where the DC is automatically taken from the opposite jack if power is interrupted

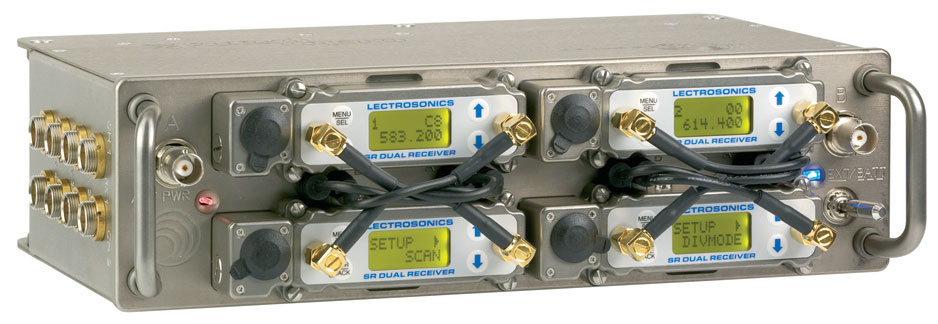

To address an increasing demand for more wireless channels in location production, the Octopack combines up to four SRa Series compact receivers into a lightweight, rugged assembly with self-contained power supply and antenna signal distribution. This powerful production tool provides up to eight audio channels in a tiny package ready to work in applications from production cart to a portable mixing bag.High quality antenna distribution requires the use of ultra quiet RF amps plus isolated and optimally matched signal paths through the circuitry to ensure equal performance from all connected receivers. In addition, the amplifiers used must be high overload types to avoid generating IM

To address an increasing demand for more wireless channels in location production, the Octopack combines up to four SRa Series compact receivers into a lightweight, rugged assembly with self-contained power supply and antenna signal distribution. This powerful production tool provides up to eight audio channels in a tiny package ready to work in applications from production cart to a portable mixing bag.High quality antenna distribution requires the use of ultra quiet RF amps plus isolated and optimally matched signal paths through the circuitry to ensure equal performance from all connected receivers. In addition, the amplifiers used must be high overload types to avoid generating IM

To address an increasing demand for more wireless channels in location production, the Octopack combines up to four SRa Series compact receivers into a lightweight, rugged assembly with self-contained power supply and antenna signal distribution. This powerful production tool provides up to eight audio channels in a tiny package ready to work in applications from production cart to a portable mixing bag.High quality antenna distribution requires the use of ultra quiet RF amps plus isolated and optimally matched signal paths through the circuitry to ensure equal performance from all connected receivers. In addition, the amplifiers used must be high overload types to avoid generating IM

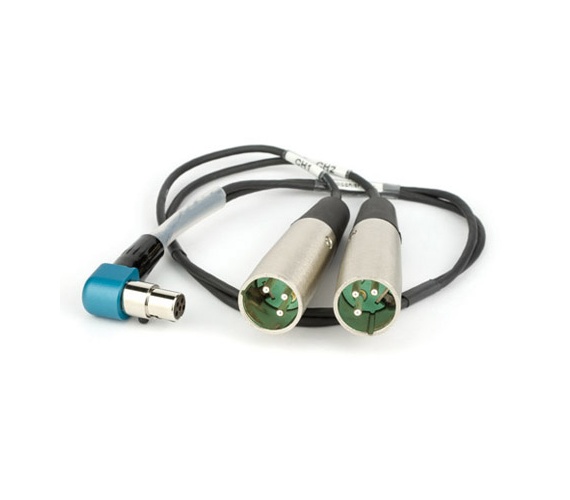

Audio cable for SR-type receivers, rotatable right angle TA5 to two 3-pin male XLRs. Lectrosonics MCSR/5PXLR2 12 Female TA5F to two Male XLR Adapter for SR Type Receivers.
