Batteries 341

341

— the "three hundredth" series includes miniature 1.5 V "coin" batteries — analogues of the LR series alkaline cells, made using more advanced silver-oxide technology. This technology is more expensive, but allows to achieve greater capacity, more stable voltage, and resistance to high discharge currents (although nominal currents can be relatively low).

Note that the most popular marking for silver-oxide batteries is SR with two numbers (the same as in LR cells of the same size). However, our catalog uses a purely digital three-digit marking as a basis. It is more accurate, since it takes into account not only physical dimensions , but also the discharge current — high (HD) or low (LD); and it significantly affects the specifics of using the battery. For example, it is impossible to determine the discharge current by marking SR69; but according to the rules of the "three hundredth" series, such elements of the HD discharge format will be marked as 370, LD as 371.

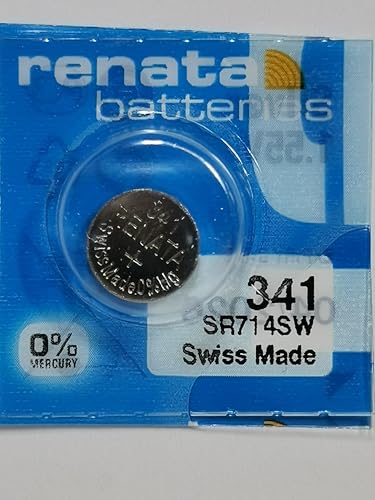

As for the 341 type specificly, these are thin batteries with an average size in diameter (diameter 7.9 mm, thickness — 1.45 mm) and low discharge current. According to generally accepted rules, they are marked as SR714, the alkaline analogue is LR714.
