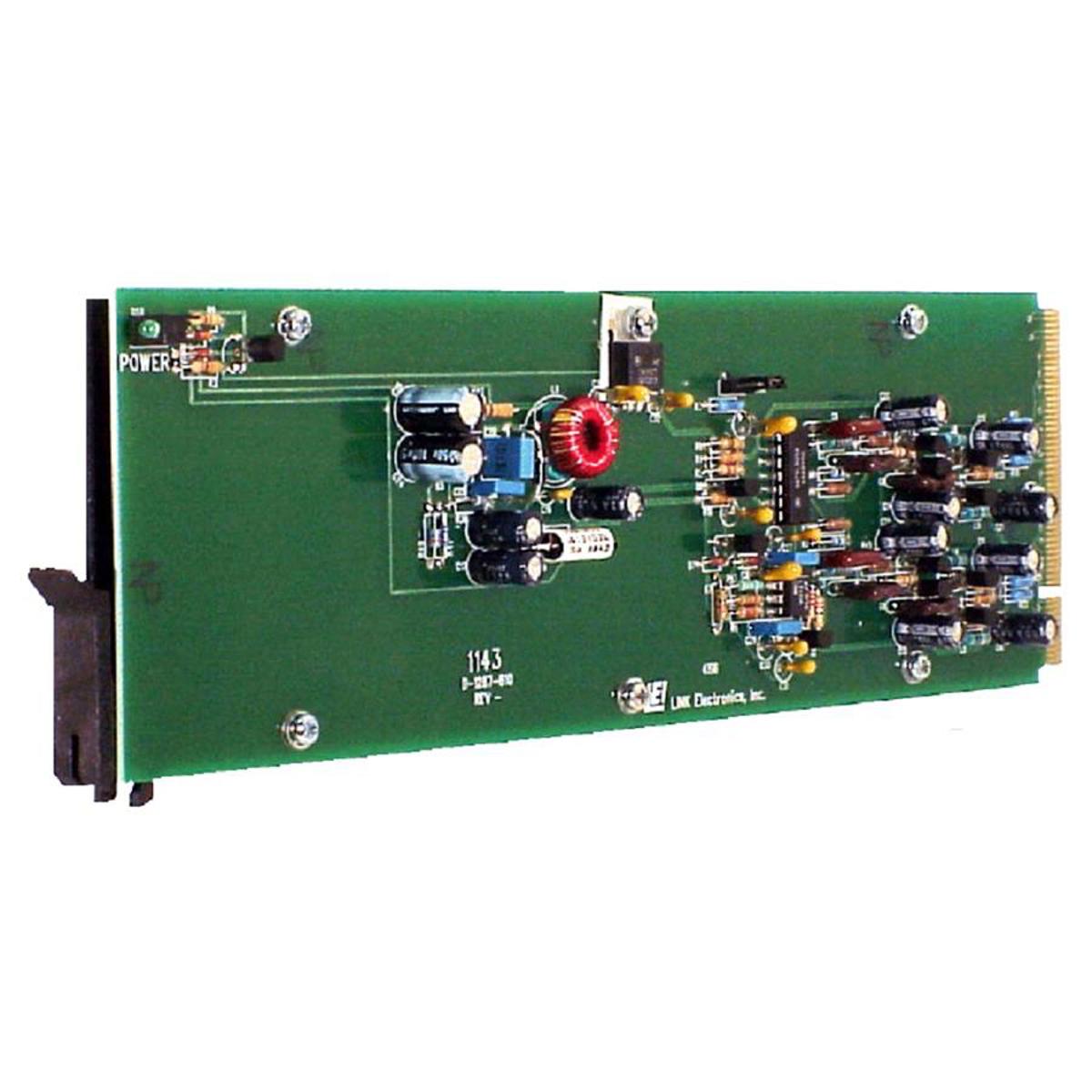

The DigiFlex 1143 is a regenerative pulse distribution amplifier designed to operate in the DigiFlex 1000 or 7200 frame. Its input is connected through a companion rear cell, Model 1011. The input pulse is re-sliced at the 50% point by a level-tracking comparator circuit. Regardless of the input level, it always slices at the 50% point. The output width is constant, based on the input signal at the 50% point. Overshoot and ringing are eliminated due to this process.Discrete linear amplifiers are used in the output drivers to insure that pulse shape and rise/fall times are accurately set by LC filter circuits. The outputs are therefore fixed at 4.0Vpp with 140ns rise/fall times and pulse

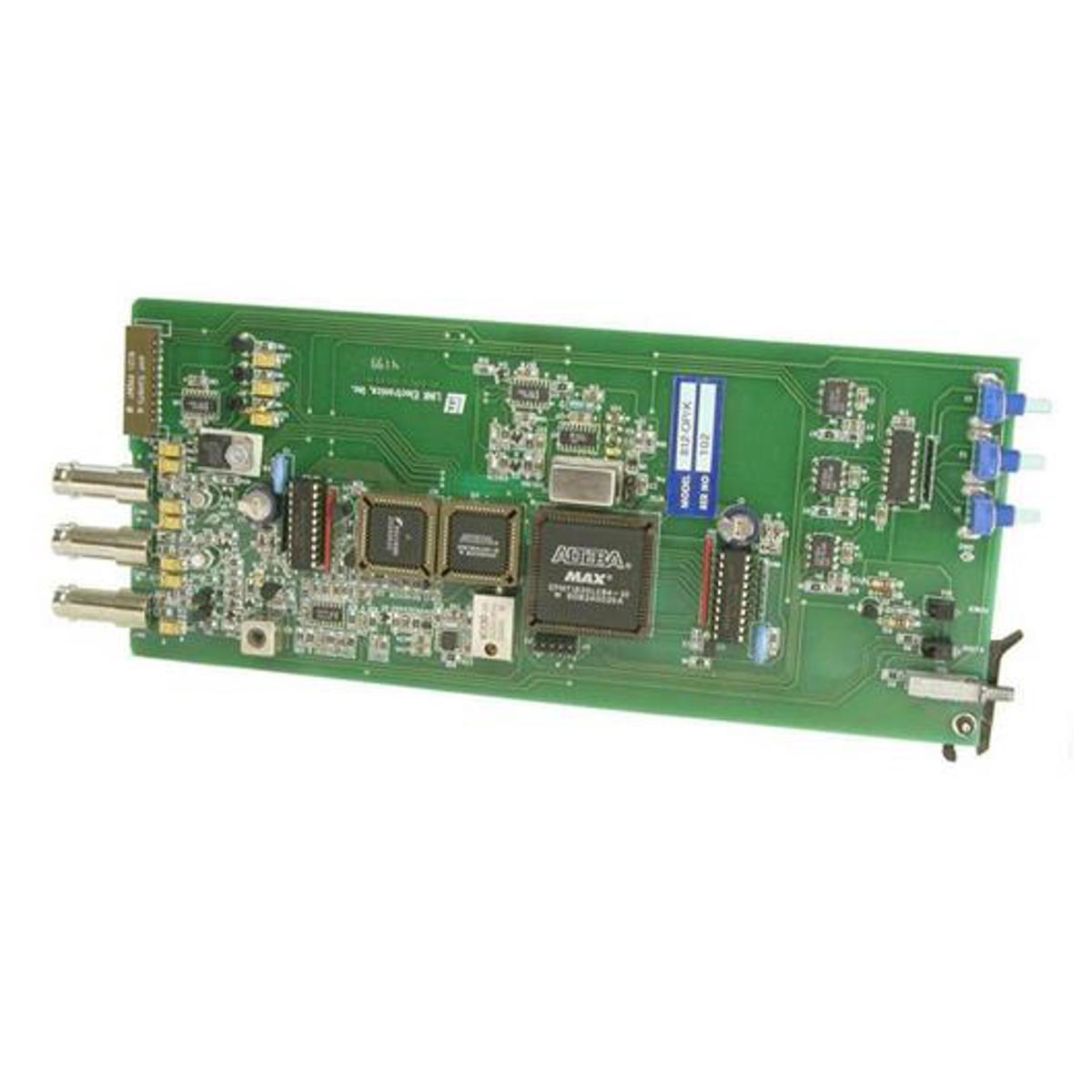

Take your video system applications to the next level with the sophisticated 812-OP/H Analog Pulse Generator, Color Subcarrier, Composite Sync. This advanced piece of equipment, designed by the reputable Link Electronics, is engineered to provide composite sync, composite blanking, and color subcarrier for systems requiring 4Vpp drive pulses and 2Vpp subcarrier. Each output pulse of this high-tech generator is meticulously controlled to meet EIA standards, ensuring it can drive a 75 Ohm load at its specified voltage. The color subcarrier output is filtered for low harmonic distortion and is powered by a discrete amplifier, offering clear and detailed images for your calibration and testing

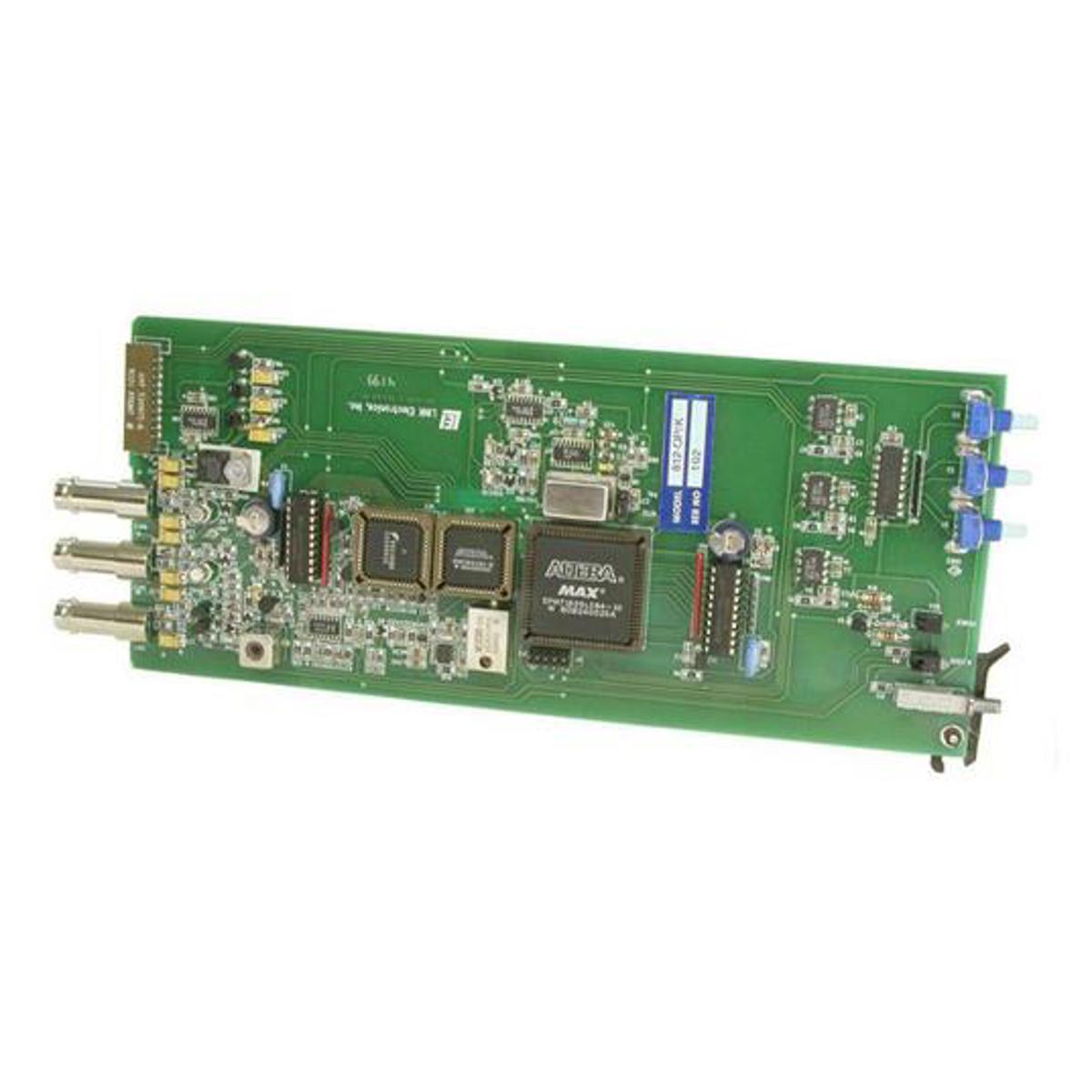

Enhance your video production and broadcasting capabilities with the sophisticated 812-OP/L Analog Pulse Generator from Link Electronics. This high-quality test pattern generator is engineered to deliver precise composite sync, composite blanking, and color subcarrier signals, essential for system applications that demand 4Vpp drive pulses and 2Vpp subcarrier. Crafted for professional use, the 812-OP/L ensures that each output pulse conforms to EIA standards with controlled rise times, capable of driving a 75 Ohm load at the specified voltage. The color subcarrier output benefits from low harmonic distortion due to its filtered design and is powered by a discrete amplifier for reliable

The 812 OP/K is designed to provide H Drive, V Drive and color subcarrier for system applications which require 4Vpp drive pulses and 2Vpp subcarrier. Each of the output pulses is rise-time controlled to EIA standards and will drive a 75 Ohm load at its specified voltage. The subcarrier output is filtered for low harmonic distortion and is driven by a discrete amplifier. The 812 OP/K will reside in the SPG-812 chassis alongside various analog and digital modules-up to six modules per chassis. • Subcarrier • H Drive • V Drive When gen-locking to incoming video, the SPG-812 chassis will have either an analog 812 OP/C, genlock to analog black or a 812 OP/D digital genlock module
