Other Sound & Hi-Fi Matrix

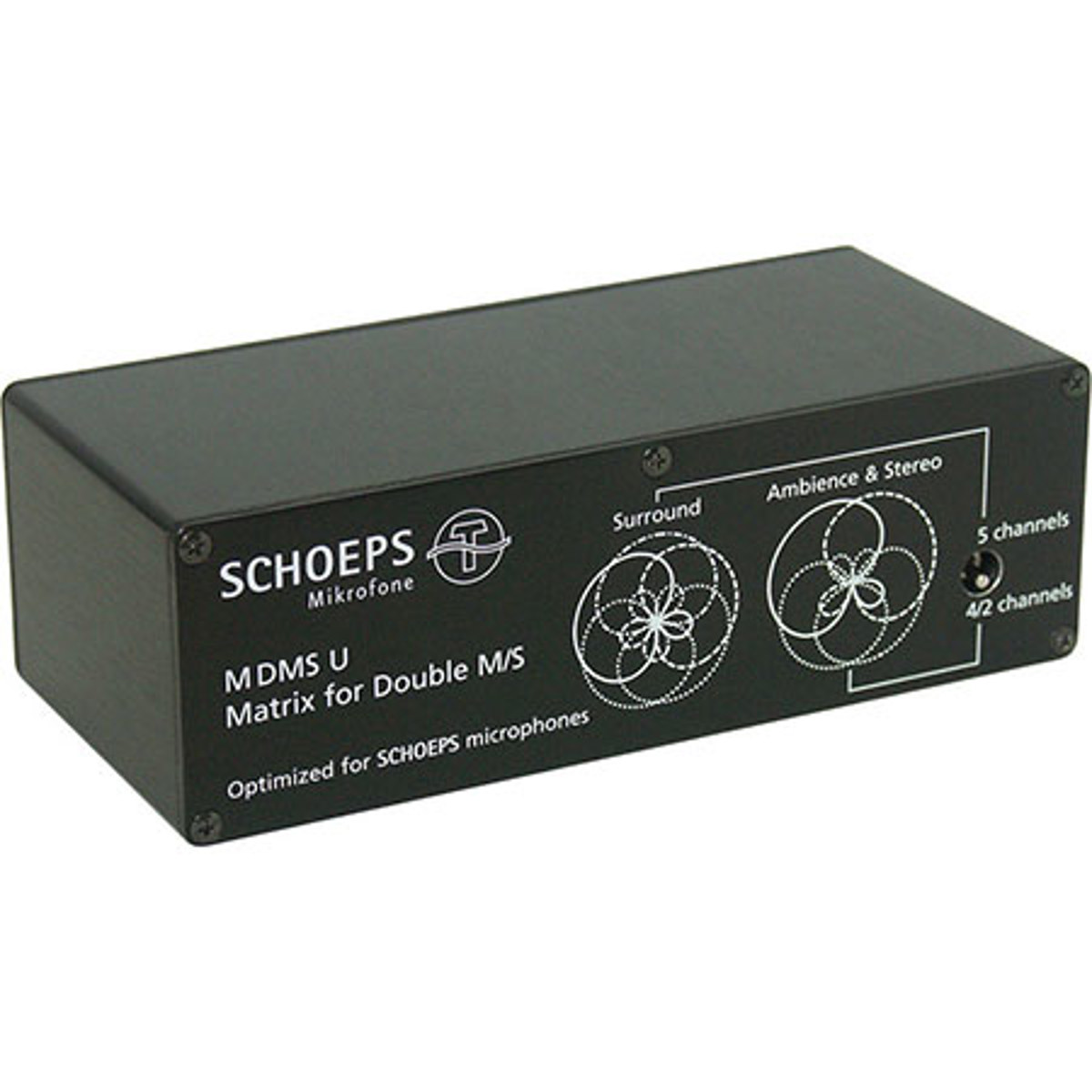

The Schoeps MDMS U Passive Matrix Box for Double M/S is in all respects, the simplest and most elegant way to obtain surround signals. It is a small, sturdy box with high-quality transformers forming a passive decoder matrix. Microphone signals are converted directly into 5.0 L / R / C / LS / RS surround signals. A second, switchable mode supplies four signals with no center-channel output. The matrix parameters have been chosen so that the resulting signals correspond to an optimal arrangement (as shown at left) while avoiding unwanted artifacts. The matrix settings were determined through extensive practical testing, including ambient recordings, television shows and theatrical and musical

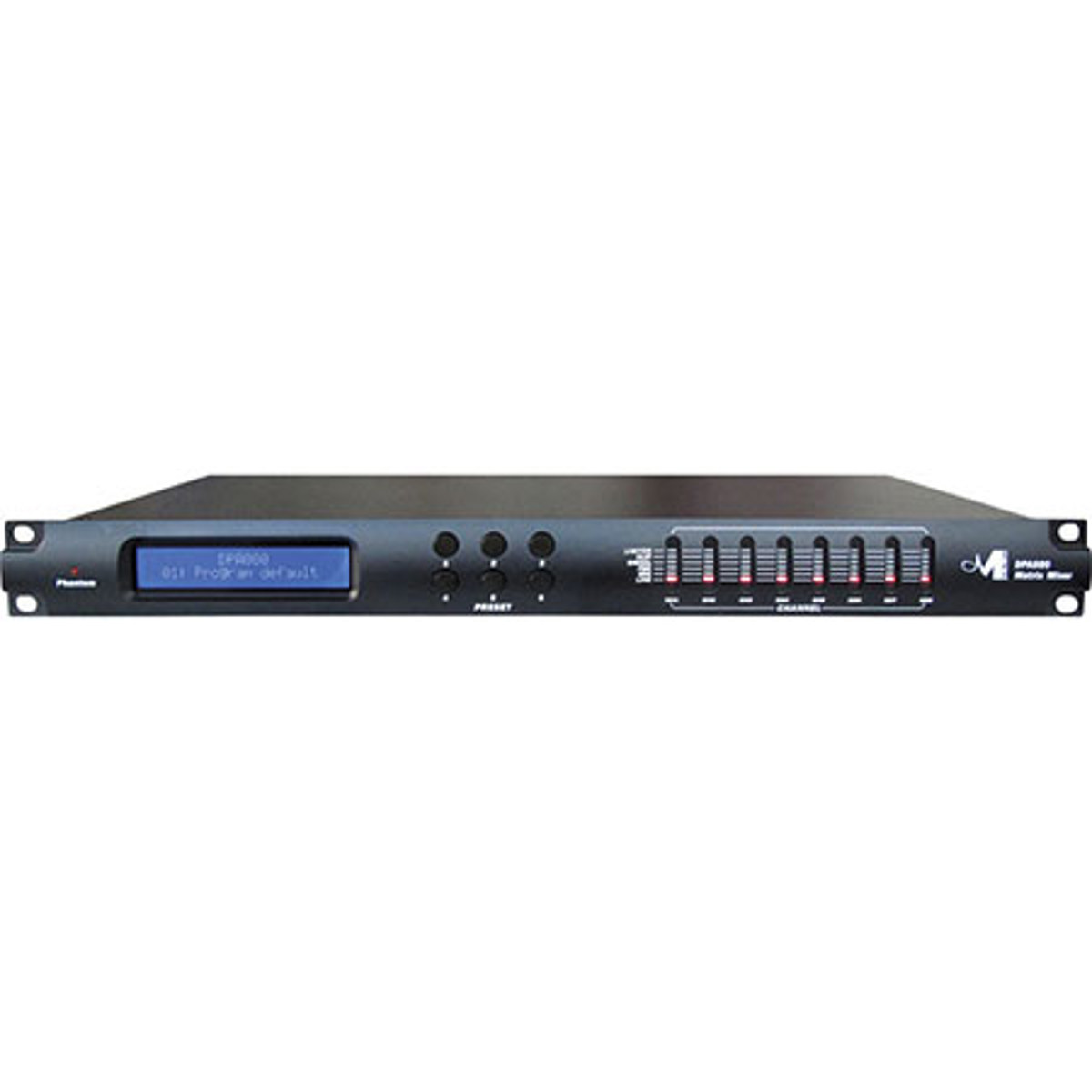

The Marani DPA880 8"x 8 Out Speaker Management System with Matrix Mixer is Designed for maximum versatility, it provides all the processing and control necessary for both live and fixed installation use. It offers 8 analog inputs, 8 analog outputs and 2 digital S/PDIF inputs, managed by a powerful DSP Engine, in addition to high performance 24 Bit AD/DA converters. Each input channel provides a choice of EQ with 5-band Parametric equalizer, Noise Gate function, Gain control and configurable Delay. In addition each input includes Pink/White noise internal generator which may be used for tuning sound reinforcement systems during installation. Each output offers up to 7-band of parametric equalization,…

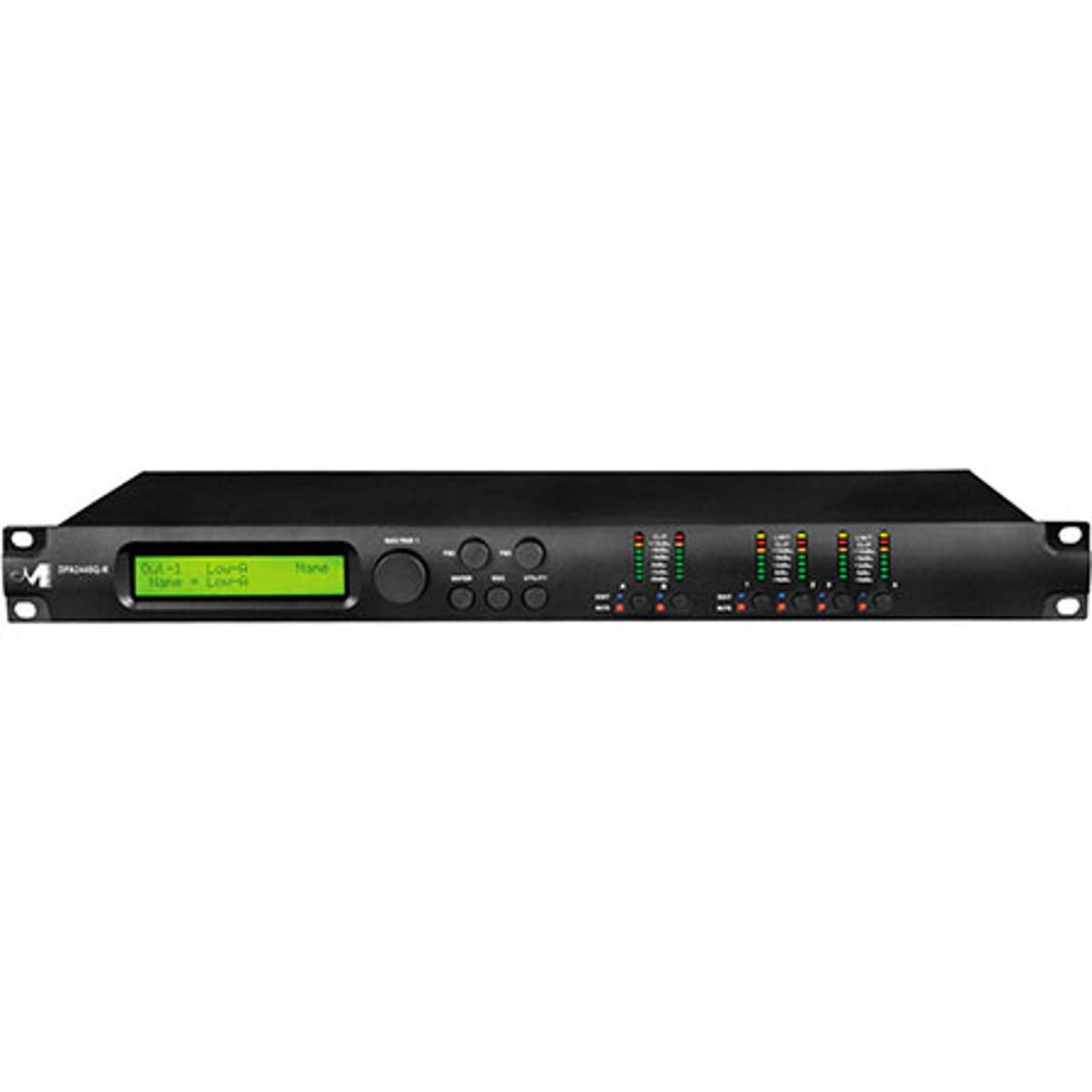

The Marani DPA2448QR 2 Input and 4 Output Speaker Management System with Matrix Mixer is a high performance 2-IN/4-OUT digital speaker management system. Designed for maximum versatility, it provides all the processing and control necessary for both live and fixed installation use. Providing for any crossover configuration, it offers 2 analog inputs, 4 analog outputs and a digital S/PDIF input, managed by a powerful DSP Engine, in addition to high performance 24Bit AD/DA Converters. Each input channel provides a choice of EQ with 5-band Parametric equalization, Gain control and configurable Delay. Each output offers up to 7-band of parametric equalization, in addition to the crossover filters …

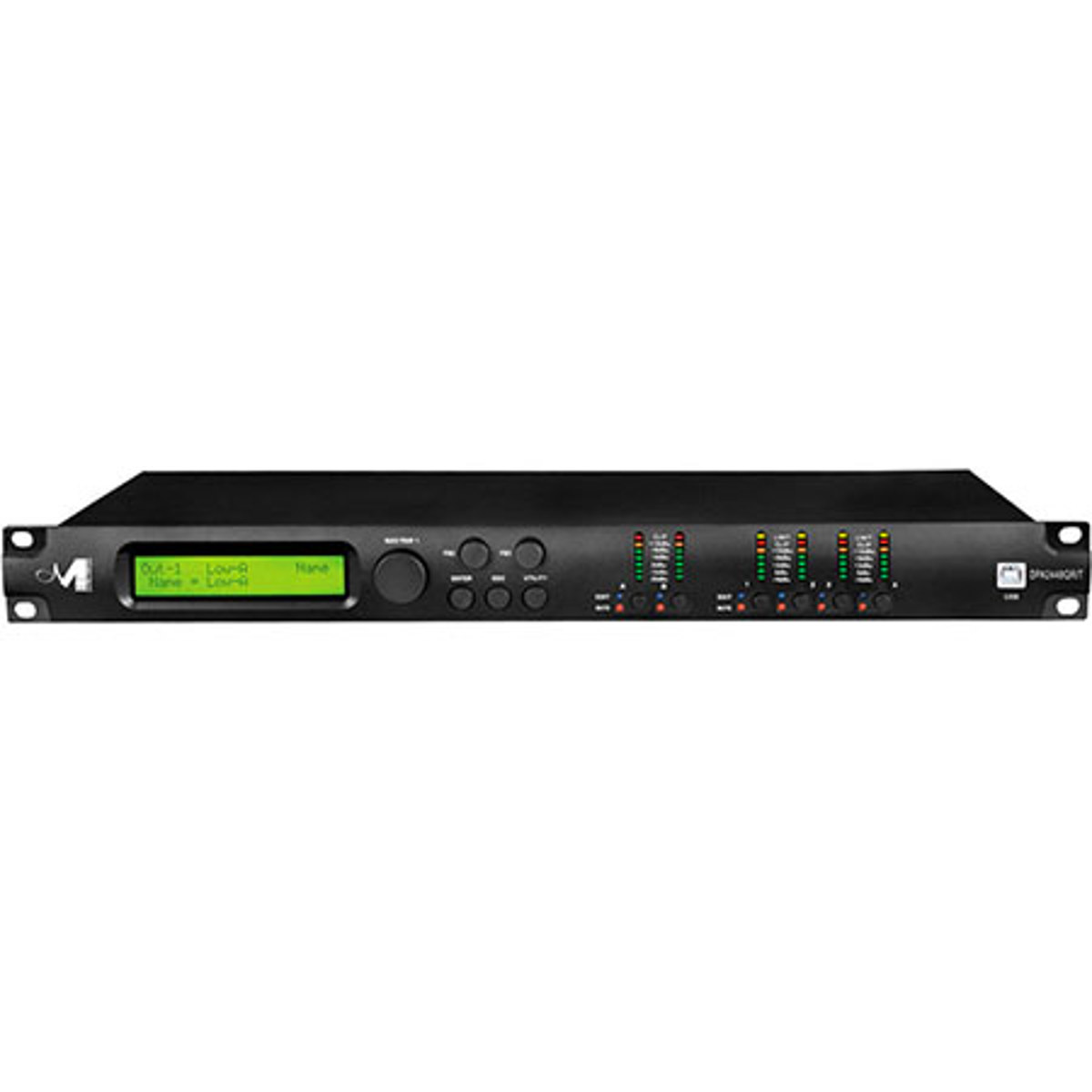

The Marani DPA2448QRT 2 Input and 4 Output Speaker Management System with Matrix Mixer is a high performance 2-IN/4-OUT digital speaker management system. Designed for maximum versatility, it provides all the processing and control necessary for both live and fixed installation use. Providing for any crossover configuration, it offers 2 analog inputs, 4 analog outputs and a digital S/PDIF input, managed by a powerful DSP Engine, in addition to high performance 24Bit AD/DA Converters. Each input channel provides a choice of EQ with 5-band Parametric equalization, Gain control and configurable Delay. Each output offers up to 7-band of parametric equalization, in addition to the crossover filters …

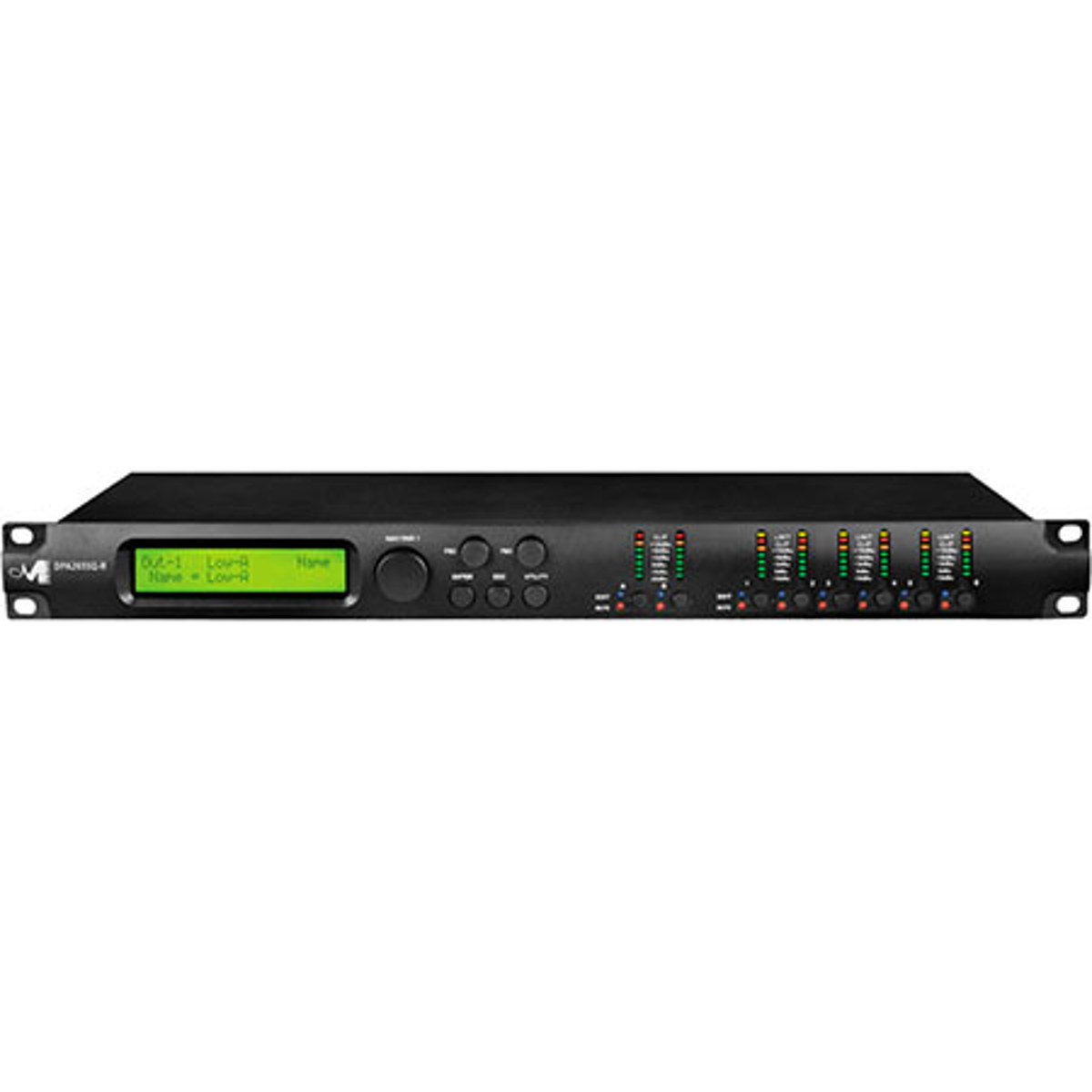

The Marani DPA2655QR 2 Input and 6 Output Speaker Management System with Matrix Mixer is Designed for maximum versatility, it provides all the processing and control necessary for both live and fixed installation use. Providing for any crossover configuration, it offers 2 analog inputs, 6 analog outputs and a digital S/PDIF input, managed by a powerful DSP Engine, in addition to high performance 24Bit AD/DA Converters. Each input channel provides a choice of EQ with 5-band Parametric equalization, Gain control and configurable Delay. Each output offers up to 5-band of parametric equalization, in addition to the crossover filters which themselves provide slopes from 6dB/Octave up to 24dB/Octave.…

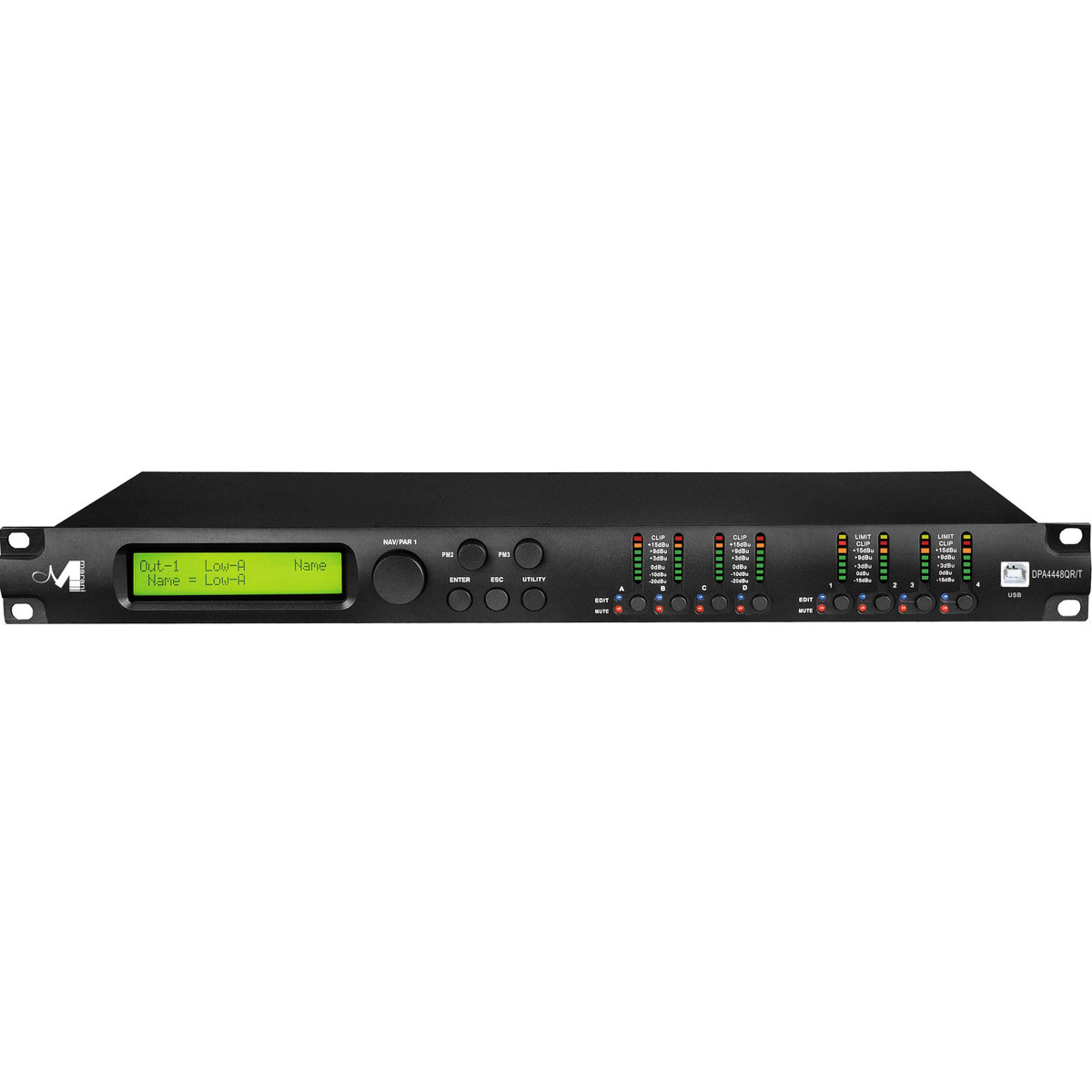

The Marani DPA4448QRT 4 Input and 4 Output Speaker Management System with Matrix Mixer is Designed for maximum versatility, it provides all the processing and control necessary for both live and fixed installation use. Providing for any crossover configuration, it offers 4 analog inputs, 4 analog outputs and a digital S/PDIF input, managed by a powerful DSP Engine, in addition to high performance 24Bit AD/DA Converters. Each input channel provides a choice of EQ with 5-band Parametric equalization, Gain control and configurable Delay. Each output offers up to 5-band of parametric equalization, in addition to the crossover filters which themselves provide slopes from 6dB/Octave up to 24dB/Octave.…
