Amplifiers TOA

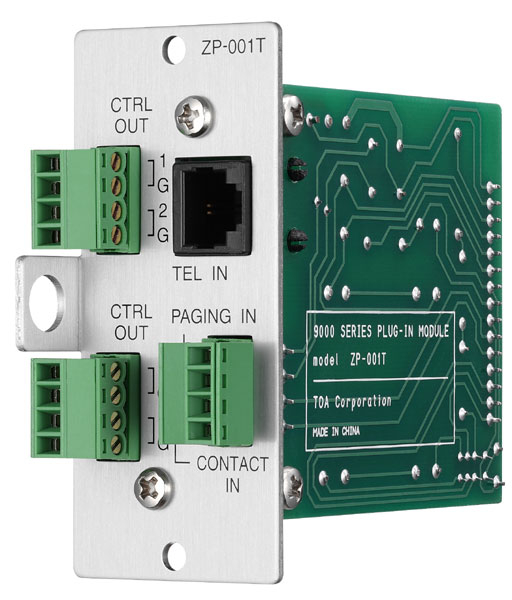

The TOA ZP-001T is a Zone Paging module designed for use with the 9000 Series amplifiers and also functions as an interface to connect the 9000 Series amplifier to an analog PBX, allowing zone paging to be initiated from the PBX. There are two operation modes: Ring signal and paging trunk modes. Broadcast can be initiated regardless of operation mode.Includes:Removable terminal plug (4 pins) x3Module mounting screw x2Features:Telephone Access Paging to up to eight zonesPBX Trunk or Station compatibleRJ-11 Telephone Jack and Removable Terminal BlocksUses DTMF dialing to access outputsAnalog extension or page port compatibleSpecification:Power Source: +24VDC, +6VDCCurrent Consumption: 38mA (@

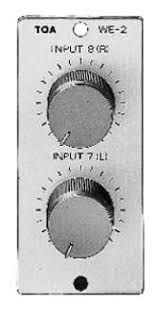

The TOA WE-2 Expanding Kit increases the number of input of the TOA W-906A and W-912A IN-WALL amplifiers. Two more module input ports can be set up by inserting this expanding kit into amplifier's user's blank space, thus allowing the W-906A and W-912A amplifiers to have up to 8 inputs. It is possible to control the sound volume of an individual input . The WE-2 can accommodate all TOA modules for the 900 Series Amplifiers. TOA WE-2 2-Module Port Expander for W-906 Series In-Wall Mixers and Amplifiers.

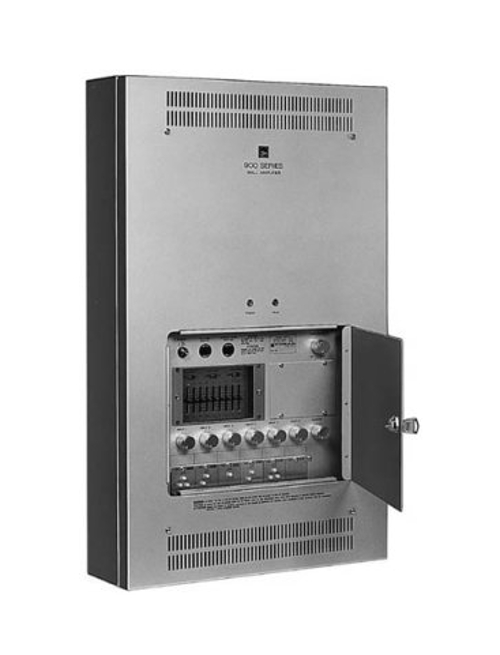

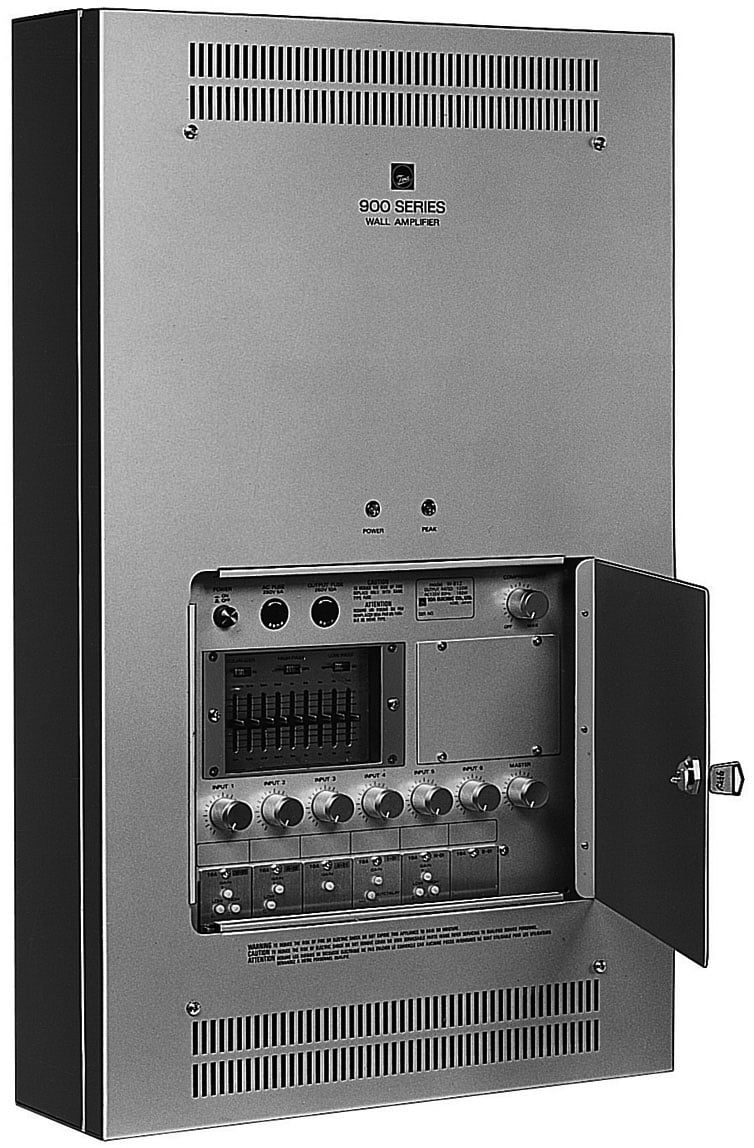

The TOA W-912A Mixer Power Amplifier controls and mixes up to six independent input signals plus two inputs with use of an expanding kit WE-2. The W-912A delivers up to 120 watts of output power. 21 optional accessory modules are available to allow the W-912A amplifier to be configured for a variety of applications. Edge connectors on the rear of the units permit TOA modules to be easily inserted for use.Modules include the M Series microphone preamplifiers, available with muting, remote volume control, voice gate and compressor options. The U Series auxiliary preamplifiers, available with muting, remote volume control and compressor options. The B Series bridging transformers, available

The TOA W-906A Mixer Power Amplifier controls and mixes up to six independent input signals plus two inputs with use of an expanding kit WE-2. The W-906A delivers up to 60 watts of output power. Twenty one optional accessory modules are available to allow the W-906A amplifier to be configured for a variety of applications. Edge connectors on the rear of the units permit TOA modules to be easily inserted for use.Modules include the M Series microphone preamplifiers, available with muting, remote volume control, voice gate and compressor options. The U Series auxiliary preamplifiers, available with muting, remote volume control and compressor options. The B Series bridging transformers,

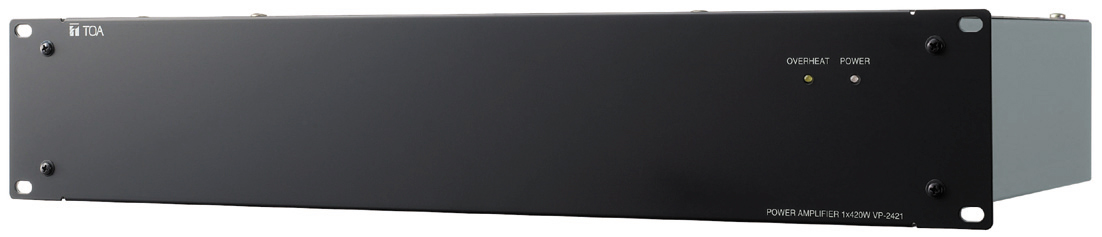

The VP-2421 Power Amplifier features a 420W-by-1 channels configuration, and uses the VP-200VX Power Amplifier Module per channel.This is a Restock item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.TOA VP-2421 Includes:4 Rack mounting screws4 Fiber washersTOA VP-2421 Specifications:Power Source: 28VDC (operating range: 20 - 40VDC) M4 screw terminal, distance between barriers: 12mmCurrent Consumption: 0.03A (standby mode), 0.60A (no audio input), 7.6A (1/8 rated output, EN60065), 29A (rated output)Rated Output Power: 420W (at

The VP-2421 Power Amplifier features a 420W-by-1 channels configuration, and uses the VP-200VX Power Amplifier Module per channel.TOA VP-2421 Includes:4 Rack mounting screws4 Fiber washersTOA VP-2421 Specifications:Power Source: 28VDC (operating range: 20 - 40VDC) M4 screw terminal, distance between barriers: 12mmCurrent Consumption: 0.03A (standby mode), 0.60A (no audio input), 7.6A (1/8 rated output, EN60065), 29A (rated output)Rated Output Power: 420W (at min. resistive and max. capacitive load)Output Power (at AC Mains: 195.5V): 320W (at min. resistive and max. capacitive load)Output Voltage: 100V (70V, 50V: selectable by internal wiring change)Minimum Resistive Load: 24Ω (@ 100V),

The VP-2122 Power Amplifier features a 120W-by-2 channels configuration, and uses the VP-200VX Power Amplifier Module per channel.Includes:Rack mounting screw x4Fiber washer x4Specifications:Power Source: 28VDC (operating range: 20 - 40VDC) M4 screw terminal, distance between barriers: 12mmCurrent Consumption: 0.04A (standby mode), 0.40A (no audio input), 4.8A (1/8 rated output, EN60065), 17A (rated output) Channel totalRated Output Power: 120W × 2 (at min. resistive and max. capacitive load)Output Power (at AC Mains: 195.5V): 90W × 2 (at min. resistive and max. capacitive load)Output Voltage: 100V (70V, 50V: selectable by internal wiring change)Minimum Resistive Load: 83Ω

The VP-2064 Power Amplifier features a 60W-by-4 channels configuration, and uses theVP-200VX Power Amplifier Module per channelIncludes:Rack mounting screw x4Fiber washer x4Specifications:Power Source: 28VDC (operating range: 20 - 40VDC)M4 screw terminal, distance between barriers: 12mmCurrent Consumption: 0.07A (standby mode), 0.48A (no audio input), 4.8A (1/8 rated output, EN60065), 17A (rated output) Channel totalRated Output Power: 60W × 4 (at min. resistive and max. capacitive load)Output Power(at AC Mains: 195.5V): 45W × 4 (at min. resistive and max. capacitive load)Output Voltage: 100V (70V, 50V: selectable by internal wiring change)Minimum Resistive Load: 167Ω (@

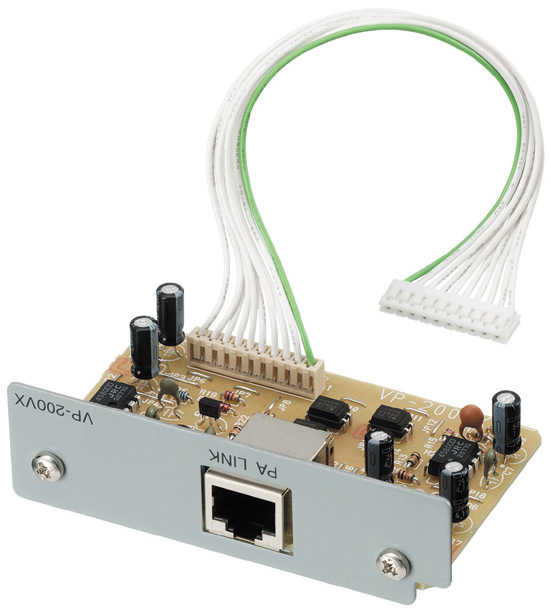

The VP-200VX Power Amplifier Input Module is designed to be used in conjunction with the VP-2064, VP-2122, VP-2241 or VP-2421 power amplifier.Specifications:Power Source: Supplied from VP-2064, VP-2122, VP-2241 or VP-2421Current Consumption: 30mA or lessPower Amplifier Link: RJ-45 female connector for connecting the VX-200SP, VX-200SZ Audio Output module, or SX-2100AO. Twisted-pair straight cable (TIA / EIA-568A standard)Finish: Panel: Surface-treated steel plateDimensions: 88 (W) × 25.8 (H) × 53.2 (D) mmWeight: 50g TOA VP-200VX Power Amplifier Input Module for VP-2000 Series.

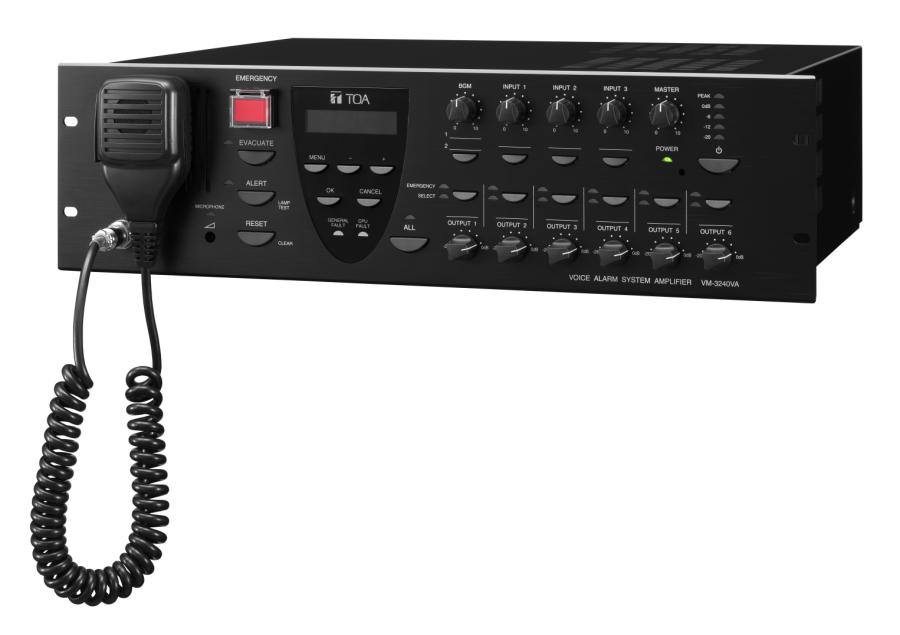

The VM-3240VA is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with audio inputs including the background music input, and the speaker output section which has an internal attenuator and 6-output selector. It permits not only general-purpose broadcast, but also Emergency broadcast based on the EN60849 Standard which gives pre-recorded voice instructions in the emergency situation. Emergency broadcast can be made from an optional RM-300MF Fireman's Microphone as well as from the amplifier, and can be remotely controlled from external equipment. In addition, the unit features the surveillance function which automatically checks

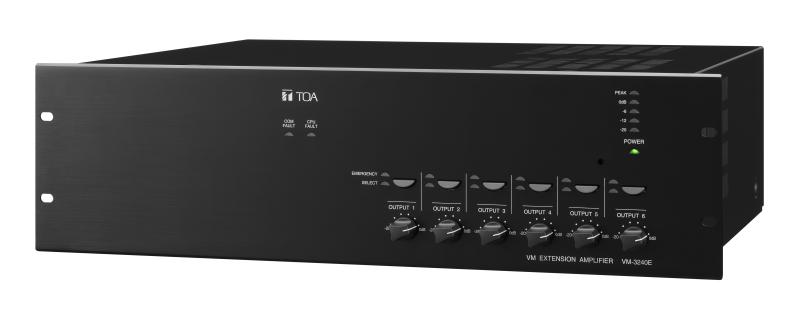

The VM-3240E is a multi-functional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures.Includes:Power cable (2m (6.56ft)) x1Link cable (3m (9.84ft)) x2Plastic foot x4Plastic foot mounting screw x4Removable terminal plug (14-pin) x3Removable terminal plug (16-pin) x1Specifications:Power Source: 230VAC, 50 / 60HzPower Consumption: 600W (with rated output signal), 260 W (according to EN60065)Rated Output: 240WFrequency Response: 50Hz - 20kHz, ±3 dB (at

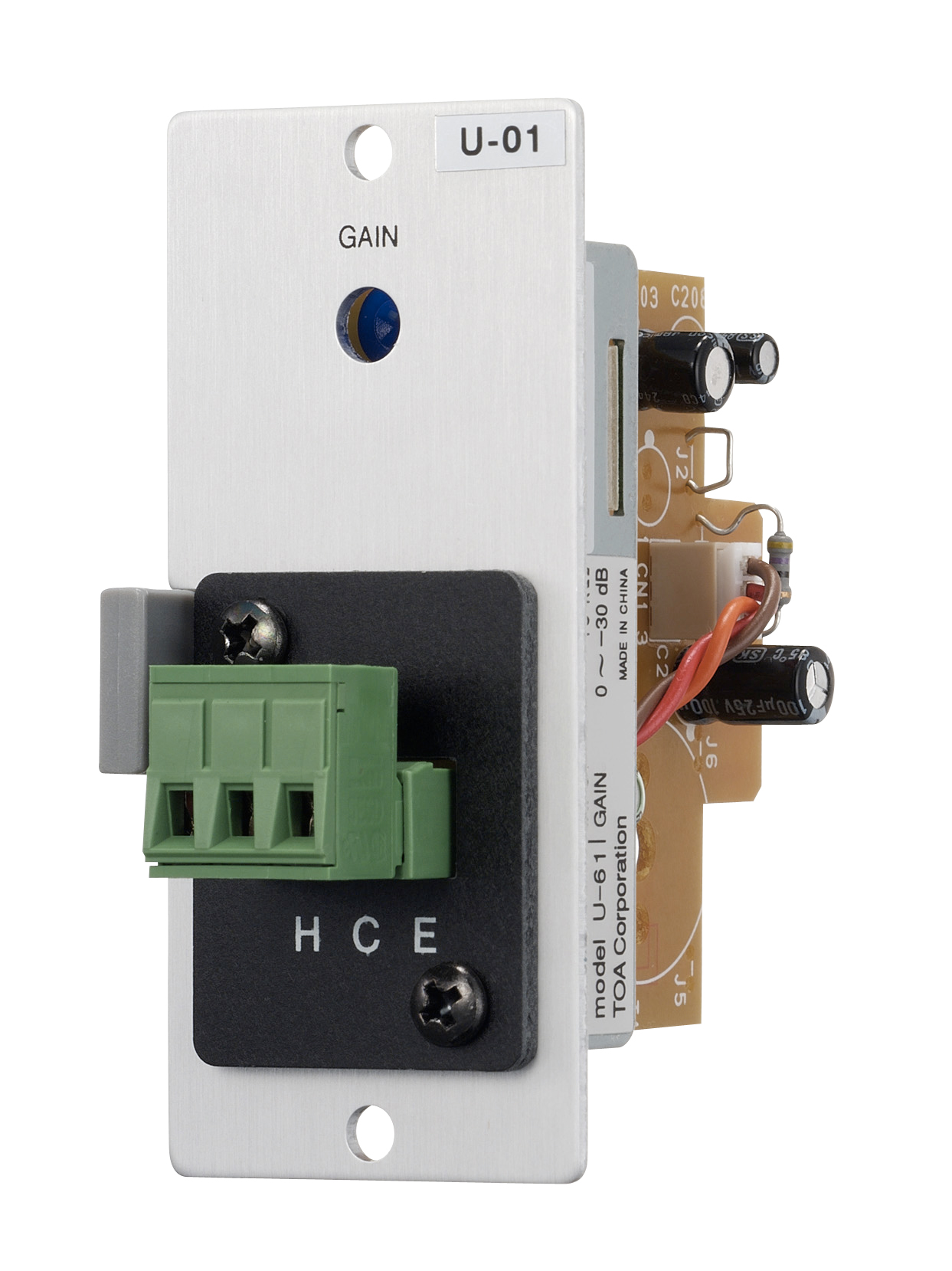

Aux-Preamp module for the 900 series with removable terminal block (screw terminals). For unbalanced, line level equipment such as AM / FM tuners, tape decks, and CD players.- Use For Adjacent Sources (less than 15 feet from the host unit)- Connector: removable terminal blockSpecifications:Controls/Functions: Gain ControlPerformance Input: 220kΩInput Sensitivity: -18 ~ +12dBuGain (Adjustable): -30 ~ 0dBMaximum Input: +18dBSignal to Noise (S/N): 90dBu TOA U-01S T Unbalanced Line Input Module for 900-Series Amplifier with Removable Terminal Block.

Aux-Preamp module for the 900 series with female RCA. For unbalanced, line level equipment such as AM / FM tuners, tape decks, and CD players.Specifications:Controls / Functions: Gain ControlPerformance Input: 220kΩInput Sensitivity: -18 ~ +12dBuGain (Adjustable): -30 ~ 0dBMaximum Input: +18dBSignal to Noise (S/N): 90dBu (S/N)Power Source: 24VDC (supplied from the main frame)Current Consumption: 4mAInput Sensitivity" -20dB* (rated output: -20dB*), adjustable: -20 to +10dB*Input Impedance: 220kΩ, unbalancedFrequency Response: 20Hz - 20kHz ± 1dBDistortion: 0.05% or less (1kHz, output: 0dB*)Noise Level: -106dB* (20Hz - 20kHz BPF)Connector: RCA pin jack (1-Pin)Dimensions: 35

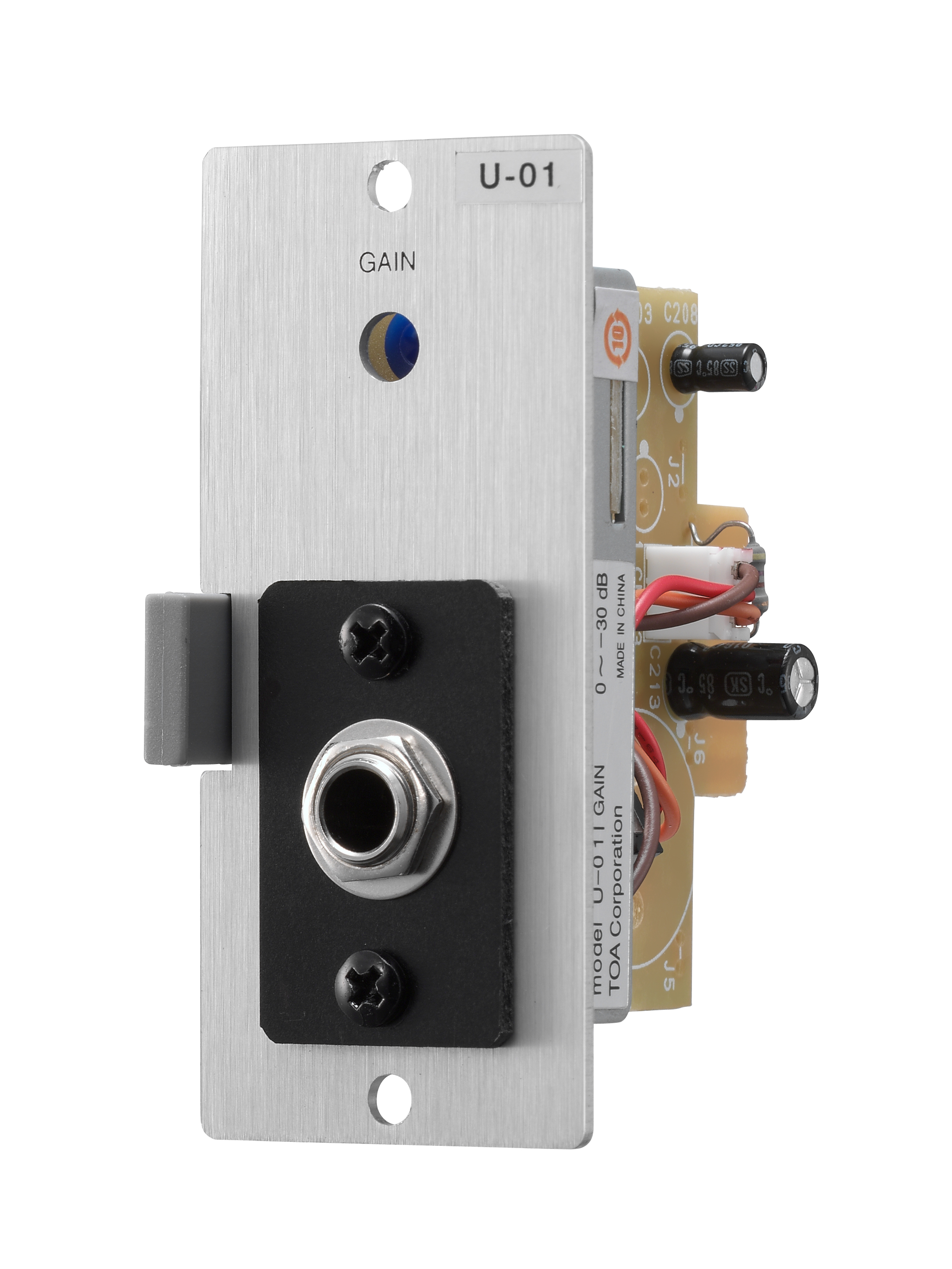

The TOA U01P is a aux-preamp module for the 900 series with female 1/4". For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players.Specifications:Controls/Functions: Gain ControlPerformance Input: 220kΩGain (Adjustable): -30 ~ 0dBMaximum Input: +18dBSignal to Noise (S/N): 90dBuPower Source: 24VDC (supplied from the main frame)Current Consumption: 4mAInput Sensitivity: -20dB* (rated output: -20dB*), adjustable: -20 to +10dB*Input Impedance: 220kΩ, unbalancedFrequency Response: 20Hz - 20kHz ± 1.0dBDistortion: 0.05% or less (1kHz, output: 0dB*)Noise Level: -106dB* (20Hz - 20kHz BPF)Connector: 6.3mm (1/4") Phone jack (3-Pin)Dimensions: 35 (W)

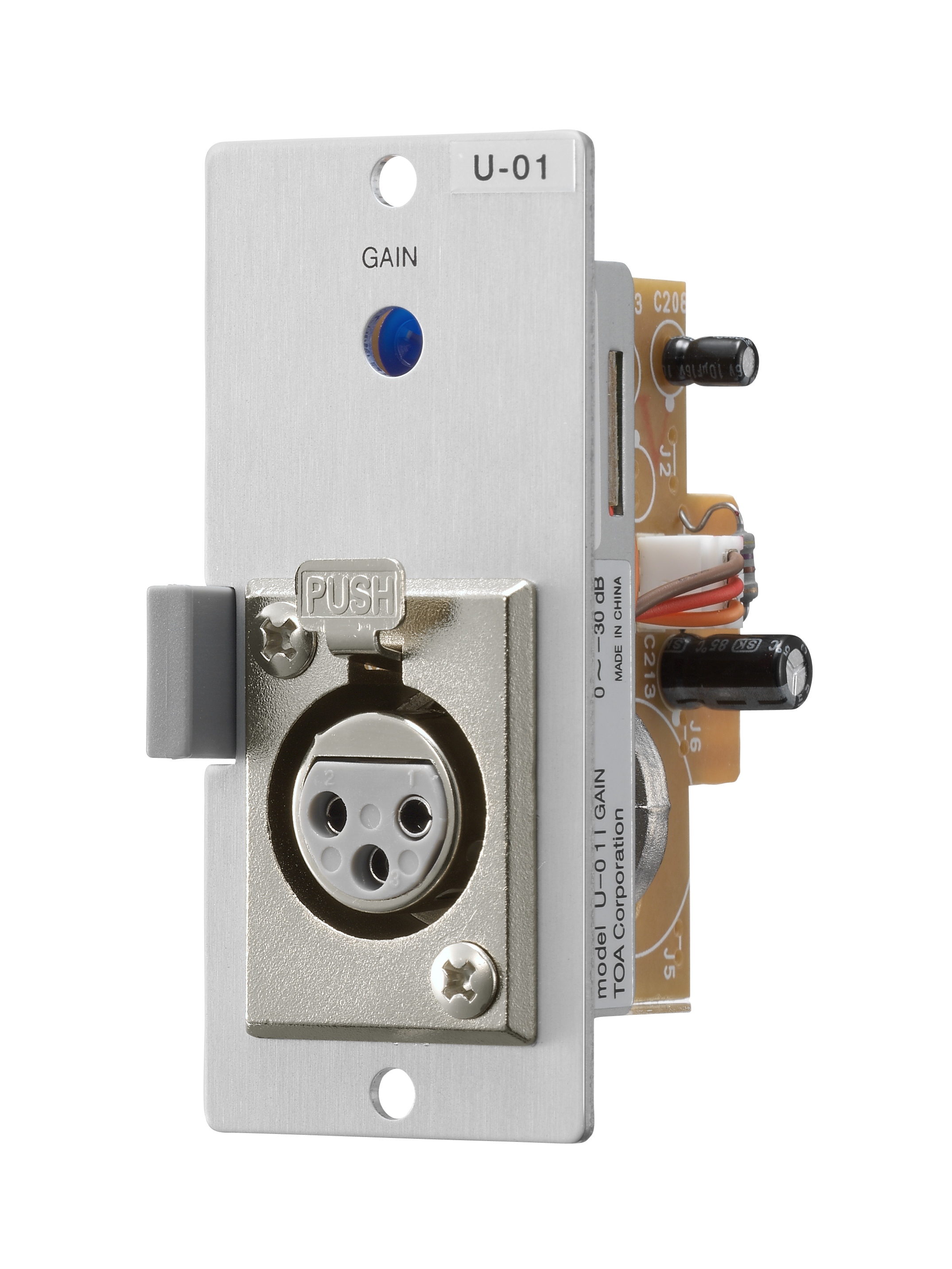

Aux-Preamp module for the 900 series with female XLR. For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players.The U-01F is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has an unbalanced line input with female XLR type connector, and gain control.Specifications:Controls / Functions: Gain ControlPerformance Input: 220kΩInput Sensitivity: -18 ~ +12dBuGain (Adjustable): -30 ~ 0dBMaximum Input:+18dBSignal to Noise (S/N): 90dBu (S/N) TOA U-01F Unbalanced Line Input Module for 900 Series Amplifier, XLR-F.

Unbalanced Line Input with Music-On-Hold Output and Input Mute-ReceiveFor unbalanced, line level equipment. Transformer-isolated output of module’s input signal for feeding remote equipment such as mixers, amps, tape recorders & telephone system music-on-hold inputs. Responds to mute bus activation (output uninterrupted).Specifications:Controls / Functions: Input and Output Gain Controls; MutePerformance Input: 220ΩInput Sensitivity: -18 ~ 0dBuGain (Adjustable): 4 ~ 20dBSignal to Noise (S/N): 85dBu (S/N)Physical Connector: Screw TerminalsPower Source: 24VDCCurrent Consumption: Less than 38mAInput Sensitivity (Rated Output 100mV ): 100 - 1,000mV (adjustable)Noise Output (20Hz -

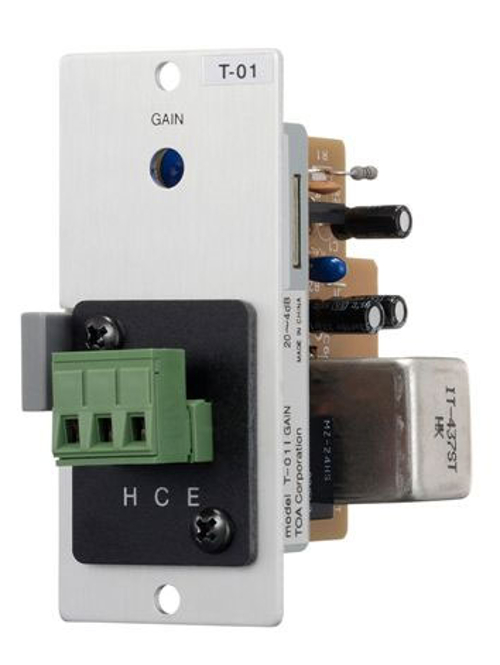

The T-O1S is a line output module to be used in conjunction with the 900 series components and other TOA equipment. It has a transformer balanced line output with removable terminal block connector, and gain control.For transformer-isolated output of mixing bus signal to feed other mixers, amps and tape recorders. (Functions only in A-900MK2, M-900MK2, W-900A Series, 700 Series and BG-M Series; not usable in P900MK2 Series)Specifications:Controls / Functions: Gain ControlGain (Adjustable): 4 ~ 20dBMax Input/Output: +18dBSignal to Noise (S/N): 80dBuPhysical Connector: Removable Terminal BlockCurrent Consumption: 35mAOutput Level: Adjustable -22 to -6dB* (at 600Ω terminated, input:

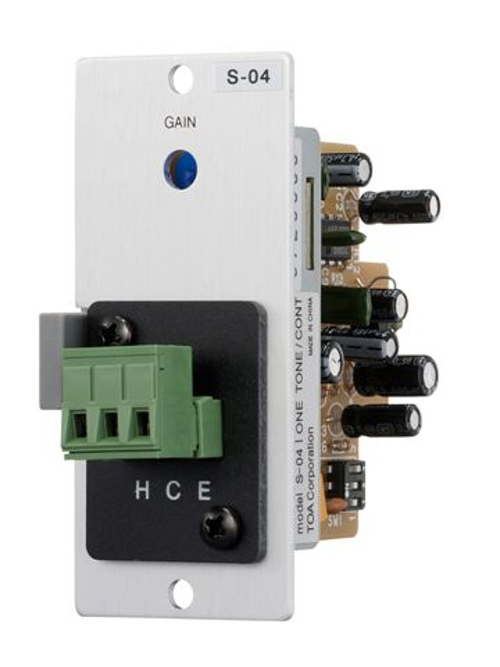

Generates one of eight tones via switch-closure. Can be used for doorbell, paging, door/gate release, telephone night ringer, annunciator, class change or pre-announcement tone.Features:Gain ControlTerminals for Switch ActivationSpecifications:Power Source: 24VDC (supplied from the main frame)Current Consumption: 20 mAOutput Level: 1.5V (p-p) (Rated output: -20dB)Noise Level: -80dB (20Hz - 20kHz BPF)Gain: Off to 0dBAvailable Tone: 1 / 2 / 4 Tone chime (selectable)Connector: Removable terminal block (3P)Dimensions: 35mm (W) x 78mm (H) x 88mm (D) - (1.38" x 3.07" x 3.46")Weight: Max. 70g (0.15lbs) TOA S-04S T Switch-Selectable Tone Generator Module for 900 Series Amplifiers.

THE TOA 900 SERIES are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical – such as in paging and music distribution for airport, hospital, and industrial sound systems – you can count on the TOA 900 Series to perform consistently, day-in and day-out.The P-924MK2 (240W) Single Channel Power Amplifier is engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation. A single module slot allows you to easily configure custom configurations using TOA plug-in modules with an extensive array of features and connector types. Outputs include

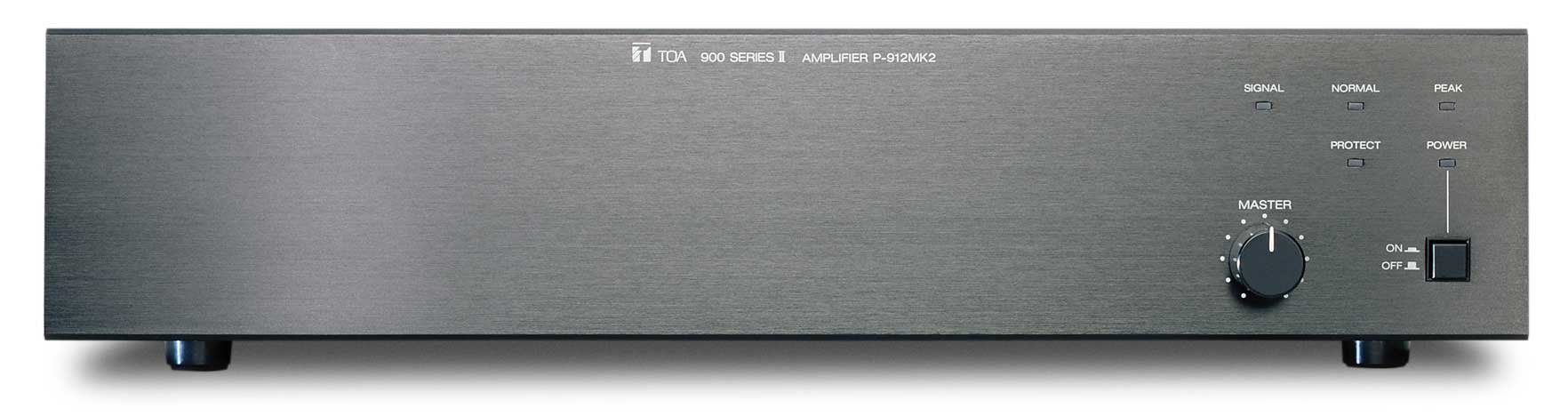

THE TOA 900 SERIES are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical – such as in paging and music distribution for airport, hospital, and industrial sound systems – you can count on the TOA 900 Series to perform consistently, day-in and day-out.The P-912MK2 (120W) Single Channel Power Amplifier is engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation. A single module slot allows you to easily configure custom configurations using TOA plug-in modules with an extensive array of features and connector types. Outputs include

The TOA P-9120DH is a 2-Channel power amplifier (120W x 2) providing system expansion of the 70.7 volt amplifier outputs for the 9000 Series Mixer/Amplifiers using the T-001T output modules. It can also be a stand-alone amplifier.Includes:Power cord (2m (6.56ft)) x1Volume control cover (YA-920) x2Rack mount bracket x2Bracket mounting screw (M4 X 16) x4Removable terminal plug (3 pins) x2Terminal cover x1Terminal cover mounting screw (M4 X 8) x2Features:2-Channel Power Amplifier with 70.7V output: P-9120DH - 120W2-Channel Power Amplifier features flexible output power allowing 50% of one amplifier channel to be allocated to the second amplifier channel.Channel 1 & 2 Inputs balanced (H = Hot, C

THE TOA 900 SERIES are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical – such as in paging and music distribution for airport, hospital, and industrial sound systems – you can count on the TOA 900 Series to perform consistently, day-in and day-out.The P-906MK2 (60W) Single Channel Power Amplifier is engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation. A single module slot allows you to easily configure custom configurations using TOA plug-in modules with an extensive array of features and connector types. Outputs include

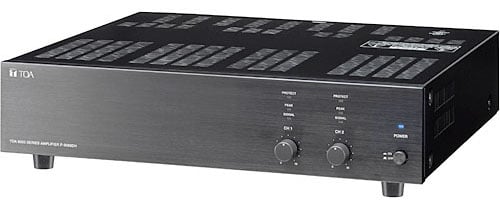

The TOA P-9060DH is a 2-Channel power amplifier (60W x 2) providing system expansion of the 70.7V amplifier output for the 9000 Series Mixer/Amplifiers using the T-001T output modules. It can also be used as a stand-alone amplifier.Includes:Power cord (2m (6.56ft)) x1Volume control cover (YA-920) x2Rack mount bracket x2Bracket mounting screw (M4 × 16) x4Removable terminal plug (3 pins) x2Terminal cover x1Terminal cover mounting screw (M4 × 8) x2Features:2-Channel Power Amplifier with 70.7V output: P-9060DH - 60W2-Channel Power Amplifier features flexible output power allowing 50% of one amplifier channel to be allocated to the second amplifier channel.Channel 1 & 2 Inputs

The DA Series of multi-channel digital power amplifiers is an optimal solution for multi-zone distributed speaker systems and professional sound applications. These amplifiers employ Class D technology, delivering an impressive 85 percent efficiency and consuming approximately one-third less power compared to conventional analog amplifiers. The compact and lightweight design, available in both single and dual rack-space configurations, minimizes heat dissipation and enables up to five units to be rack-mounted without any open space required between units.The DA Series includes four-channel models designed for high and low impedance applications, each featuring an independent power supply for
