Amplifiers Lectrosonics

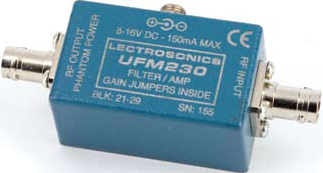

Lectrosonics' UFM230 is used to configure antenna systems requiring long cable runs or distribution to multiple receivers. RF filtering before gain minimizes intermodulation (IM) products and prevents overload. Two transmission line ceramic resonators at the input provide filtering with a 230 MHz bandwidth, followed by 12dB of gain using a high quality GaAsFET RF amplifier with an excellent +41dBm output IP3.A switching regulator is used in the power supply to control current consumption over an input voltage range of 8 to 16 volts. The regulator maintains low current consumption and low heat dissipation which is especially useful in mobile field production applications. The housing is

Lectrosonics' UFM230L is used to configure antenna systems requiring long cable runs or distribution to multiple receivers. RF filtering before gain minimizes intermodulation (IM) products and prevents overload. Two transmission line ceramic resonators at the input provide filtering with a 230 MHz bandwidth, followed by 12dB of gain using a high quality GaAsFET RF amplifier with an excellent +41dBm output IP3.A switching regulator is used in the power supply to control current consumption over an input voltage range of 8 to 16 volts. The regulator maintains low current consumption and low heat dissipation which is especially useful in mobile field production applications. The housing is

Enhance your audio experience with the Lectrosonics PA8 8-Channel Power Amplifier, a powerful and high-quality solution for zoned, distributed loudspeaker systems. This advanced amplifier is uniquely designed to fit into a single rack space, making it a compact yet robust choice for any audio setup. Each of the eight separate power amplifiers within the PA8 delivers an impressive output power capability of 10W at 4 Ohms or 6W at 8 Ohms. This reliable amplifier is passively cooled, ensuring optimal performance without the risk of overheating. It also features full short circuit and thermal overload protection, providing a durable and long-lasting solution for your audio needs.The PA8 is

Lectrosonics' PA8 8-Channel Power Amplifier is designed for distributed loudspeaker systems using mix-mminus zoning. The amplifier is typically used with Lectrosonics matrix and DSP processors for sound reinforcement systems in boardrooms, courtrooms and conferencing systems.Eight separate power amplifiers, each with an output power capability of 10W (4 Ohms) or 6W (8 Ohms) provide amplification for each loudspeaker or zone-grouped loudspeakers in the system. The PA8 is passively cooled, and features full short-circuit and thermal overload protection. The amplifier outputs are also muted at turn-on and turn-off, to eliminate transients.The front panel includes a power switch and individual

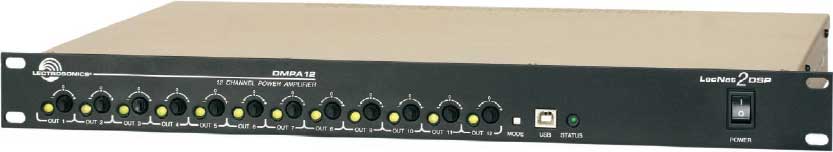

Bring your audio experience to a new level with the Lectrosonics DMPA12 12-Channel DSP and Power Amplifier. This high-performance digital audio processor and multi-channel power amplifier is ingeniously integrated into a single rack space component, specifically engineered to synergize with DM Series processors. This innovative design signifies a breakthrough in DSP technology, boasting unparalleled processing speed and efficiency. It's the perfect solution for sound reinforcement and teleconferencing in diverse settings such as boardrooms, courtrooms, worship centers, distance learning systems, and hotels. It's also ideally suited for mix-minus sound reinforcement systems, making it a

The LectrosonicsDMPA12is a powerful digital audio processor and multi-channel power amplifier combined into a single rack space component designed to work with DM Series processors. The design represents a milestone in DSP technology in its basic architecture and in its processing speed and efficiency. The primary applications are sound reinforcement and teleconferencing in boardrooms, courtrooms, worship centers, distance learning systems, hotels and other applications with multiple microphones and loudspeakers. The design is ideally suited to mix-minus sound reinforcement systems.Inputs are taken from the DANI™ bus (Digital Audio Network Interface) which is common to all DM Series

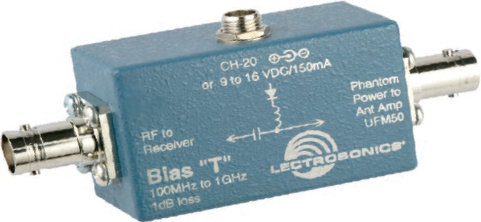

Lectrosonics' Bias "T" is used to insert DC power into a coaxial cable to power a Lectrosonics remote antenna amplifier or filter/amplifier. It is positioned at the receiving end of the coaxial cable to pass DC power from an external source to the coaxial cable running to the antenna. The Bias "T" consists of a feed inductor to deliver DC to the BNC connector on the antenna side and a blocking capacitor to keep DC from passing through to the receiver. The RF is connected directly from one BNC to the other with only the blocking cap in series. A locking power jack provides the connection to an external power supply such as the Lectrosonics CH20.An internal blocking diode prevents damage to
