Amplifiers DPA

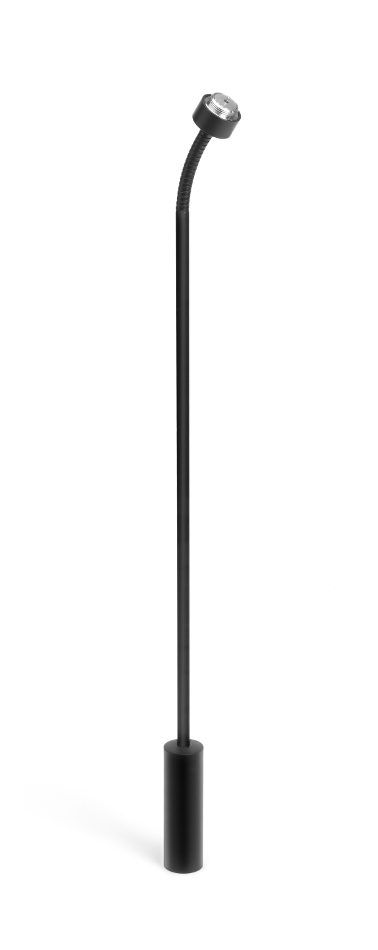

A 30 cm long modular podium boom arm with gooseneck top and microphone preamplifier, DPA Microphones' MMP-F30 is engineered for use with any of DPA's modular microphone capsules. The MMP-F30 comes with a state-of-the-art preamplifier design and features excellent radio frequency rejection thanks to the DPA-designed impedance balancing with an active drive.DPA Microphones MMP-F30 Features:Maximum speech intelligibility regardless of acoustical environmentHigh-gain before feedback leading to fewer speaker placement issuesRejection of mobile phone interferenceConsistent sound from every microphone, every timeDPA Microphones MMP-F30 Specifications:Output Connector: XLR-3M. Pin 1: shield, Pin 2:

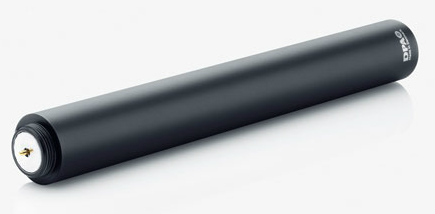

DPA Microphones' d:dictate™ MMP-C is an ultra-compact microphone preamp with active drive for impedance balancing, and a slightly softer character than the other preamps in the DPA d:dictate™ Recording Microphones series. The MMP-C can be combined with any capsule in DPA's d:dictate™ series.DPA Microphones MMP-C Specifications:Output connector: XLR-3MPin 1: shieldPin 2: signal + phasePin 3: - phaseLow-cut frequency, -3 dB: 15 HzNoise with shorted input, A-weighted: 0.6 µVOutput voltage, RMS: > 4 VOutput voltage, peak: > 5.6 VType of electronic circuit: ActiveTHD@1VRMS, 1kHz: < 0.2 %Dynamic range: 136 dBOutput impedance: < 200 ohmOutput balance principle: Impedance

Ultra transparent transformerless preamplifier with active drive for impedance balancing. Combine this preamp with any capsule in the DPA Reference Standard series.Specifications:Output connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phaseLow-cut frequency, -3 dB: 8 HzNoise with shorted input, A-weighted: 0.5 µVOutput voltage, RMS: > 5 VOutput voltage, peak: > 16 VType of electronic circuit: ActiveTHD @ 1VRMS, 1kHz: < 0.2 %Dynamic range: 138 dBSwitchable attenuator: 0 dB, -20 dBOutput impedance: < 200 ohmOutput balance principle: Impedance balancing with Active DriveCommon Mode Rejection Ratio (CMRR): > 60 dBPower supply (for full specifications): 48 V Phantom power

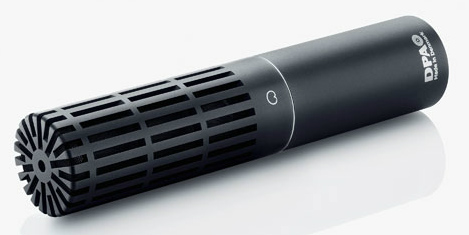

DPA's 2011C microphone has strong references to the acclaimed close-miking and high SPL handling specialist DPA 4011 cardioid microphone – not only by its type number 11, also in its all-round capture abilities. 2011 is primarily optimized for on-stage use and the technology combines the Twin Diaphragm Capsule and DPA's strong know-how within interference tube technology.While 4011 has gained worldwide admiration for its total linearity at all sound confrontations, the 2011 is purposely aimed differently; the off-axis response is still linear but in a smaller frequency bandwidth making stage separation and gain-to-feedback higher and mic level easier to control.2011C is part of the
