Amplifiers AJA

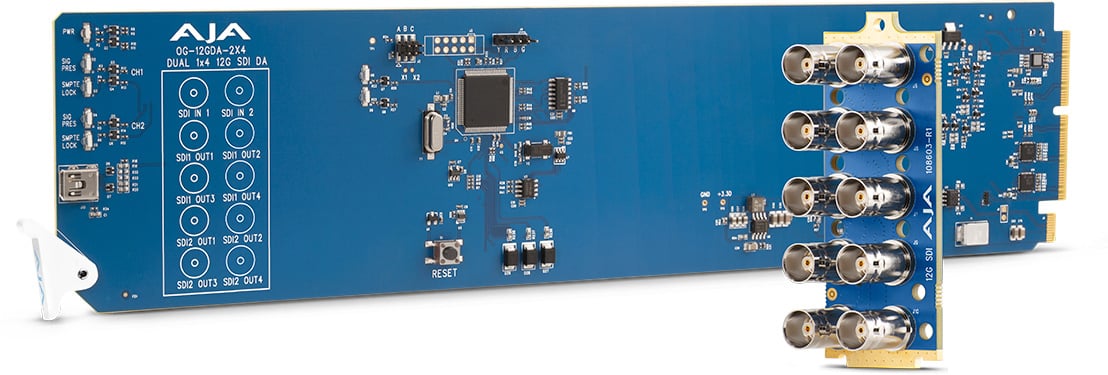

With two 12G-SDI inputs and outputs via dual 1x4 12G-SDI openGear distribution amplifiers, the OG-12GDA-2X4 delivers more distribution from limited 2RU frame space. Both input channels are auto-equalized and re-clocked before being output to four 12G-SDI outputs each. Embedded audio and all ancillary data including closed caption and time code are passed via the 10 BNC connectors.Remote control and monitoring of openGear architecture are supported for macOS, Windows, and Linux thanks to AJA's dashboard software. Plus, convenient and industry-standard configuration, monitoring, and control options over a PC or local network.AJA OG-12GDA-2X4 Includes:OG-12GDA-2X4Five year warrantyAJA

The C10DA from AJA Video Systems is a miniature, cost effective 1x6 Analog Distribution Amplifier with support for NTSC and PAL offering the ability to distribute multiple copies of the incoming signal or extend content of composite video with gain adjustment to compensate for long cable runs where needed. Designed for distribution needs in a range of markets around the world engaged with SD workflows, the C10DA can also be used to distribute tri-level reference for HD workflows when an external reference is fed into the video input.FeaturesCompact 1 x 6 Analog Distribution Amplifier:NTSCPALMay be used to distribute tri-level sync when a syync signal is fed into the Video Input for HD

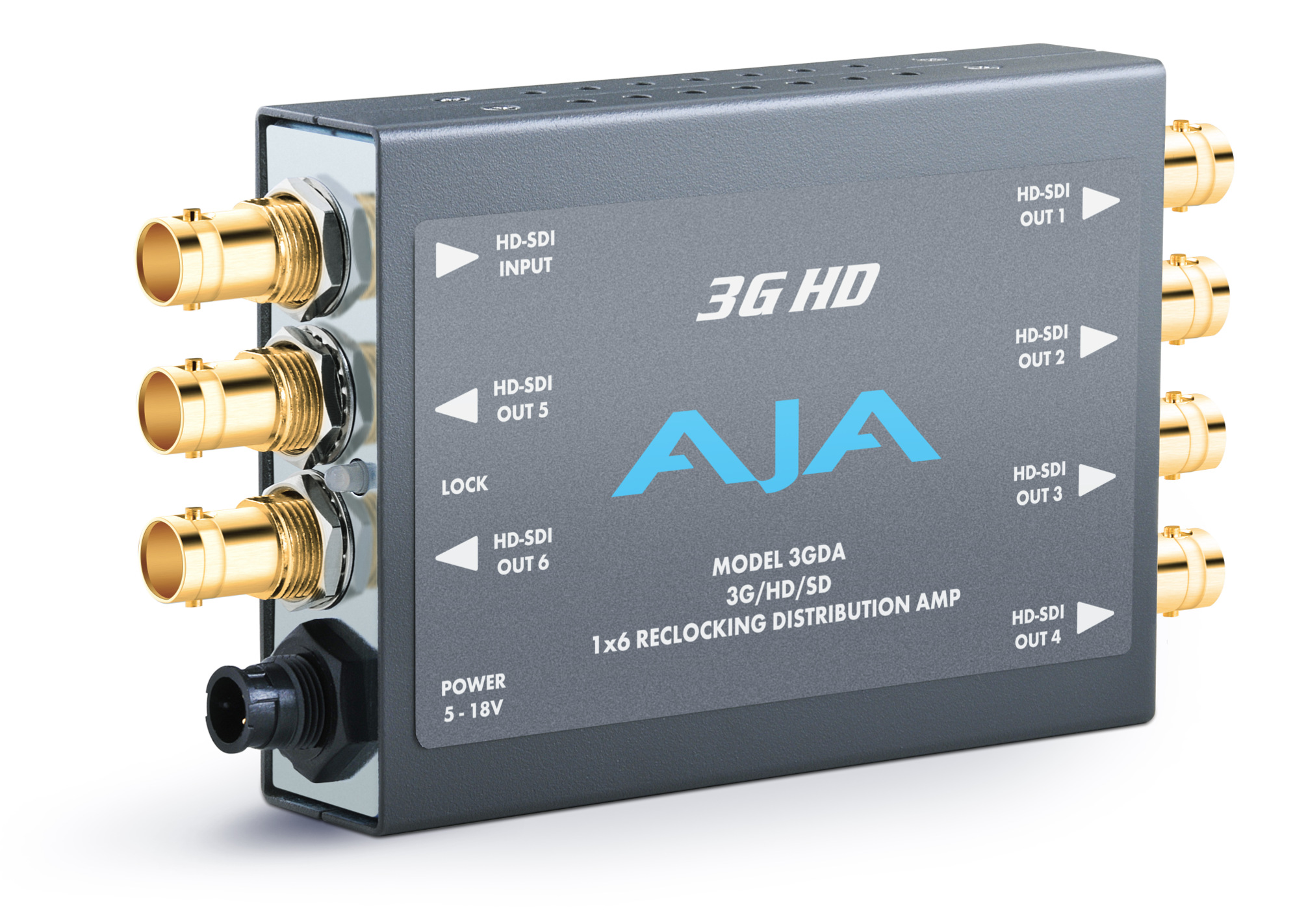

This Infrastructure Min-Converter from AJA is the 3GDA, a 1x6 3G/HD/SD Reclocking Distribution Amplifier. This miniature, low cost reclocking distribution amplifier features six separately buffered SDI outputs, provides automatic input detection, reclocking and cable equalization.FeaturesCompact SD/HD DistributionSix Separately Buffered OutputsMiniature Size120m 3G cable equalization (1694 coax)3G HD-SDI, HD-SDI or SDI input, auto sensingPasses all ancillary data+5-18V power supplySpecificationsFormats: 3Gb, 1.5Gb, 270Mb Auto SelectInputs: 1 HD-SDI, SDI (SMPTE 259/292/296/424), 1x BNCOutputs: 3G HD-SDI, HD-SDI, SDI, 6x BNC; Equalizing and re-clockingPower: +5-18VDC, Regulated, 3 watts, Power …

The AJA Video Systems Inc. 12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.FeaturesCompact 12G-SDI distributionSix separately buffered outputsMiniature size12G cable equalization (1694 coax)12 Gbps, 90m6 Gbps, 125m3 Gbps, 160m1.5 Gbps, 200m270 Mbps, 470m12G/6G/3G/HD/SD-SDI input, auto sensingPasses
