Subwoofers Bag End

The S15B is a 15" subwoofer in an oiled birch cabinet.Specifications:Enclosure:18mm 13-ply birch plywoodTransducer:1 - 15" coneInput Connectors:1 - Dual Banana2 - 1/4" PhoneGrille:16 Gauge black vinyl coated perforated steelStandard Hardware:2 - Recessed handles4 - Machined aluminum speakermounting clampsSystem Type:Full-range, rear vented1.8 cubic ft.Impedance:8 OhmsFrequency Response:50 Hz to 4 kHz ± 6 dB (4 pi Steradians)Sensitivity:103 dB SPL (1W @ 1m)Power Handling:200 W continuous sine wave400 W instantaneous peakFinish:Dark walnut oilDimensions:18"h x 18"w x 15"d46cm x 46cm x 39cmWeight:46 lbs. Bag End S15B 15 Subwoofer with Oiled Birch Cabinet.

The PS18E-R is a high output self-powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The PS18E-R provides perfectly flat response down to 8Hz when used in conjunction with the 8Hz Integrator.ApplicationsFilm & Video Post Production5.1 Digital Format SubwooferPA System InstallationsRecording StudioMastering FacilityHome TheaterDiscothequeSpecificationsEnclosure: 18mm 13-ply birch plywoodLow Frequency Transducer: 18" INFRA cone, 3" voice coil, 120 oz magnetInternal Amplification: 1 - Minima OneGrille: 16 Gauge black vinyl coated perforated steelSystem Type: Infrasub sealed chamberInput: 10k ohm balanced XLR

The P-S18E-I is a high output self powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The P-S18E-I provides perfectly flat response down to 8 Hertz when used in conjunction with the 8 Hertz Integrator. Designed for permanent installation, the P-S18E-I offers a flat black textured finish and a black coated steel grille.Specifications:System Type: INFRA Sealed chamber (3 cu. ft.)Input: 48k Ohms Balanced XLR inputs with loop throughInput CAL Sensitivity: +4dBuSystem Power: 500 W continuous w/system limiterFrequency Response:- 60 Hz to 250 Hz +/-3 dB- w/External Infra Integrator: 8 Hz to 95 Hz +/-3 dBHi Pass

From Bag End's collection of Infrasub™ Systems comes the PS12E-I, a self-powered single 12-inch subwoofer. Many consider BASS the most stimulating and important part of the audio spectrum to convey emotions and excitement within us. Infrasub bass does this better because it goes lower and sounds, quicker, tighter, faster, deeper, and is just plain more musical sounding. In addition it feels powerful and sounds detailed even when playing soft.The PS12E-I is a self-powered single 12” bass system designed for permanent installation. The PS12E-I provides flat response down to 8 hertz when used in conjunction with the 8 hertz Integrator. Bag End'sexternal rack mount Infra-MXB

Bag End's ISUB2-18 brings 700 watts of power and integrated bass management to professional surround systems in critical applications like mastering labs, recording studios, and post-production.Two female XLR inputs are combined into a mono summed output that drives a front-firing 21" loudspeaker in a sealed box. The ISUB2 provides a flat frequency response down to 8 Hz for the kind of bass can feel. If a stereo bass system is desired, a pair of ISUB2-18s can be used separately.The ISUB2's dual integrator will perform the upper roll-off from the full-range input signal. this provides a more accurate reproduction than an in-line low pass filter placed before the inputs would provide.Bag End

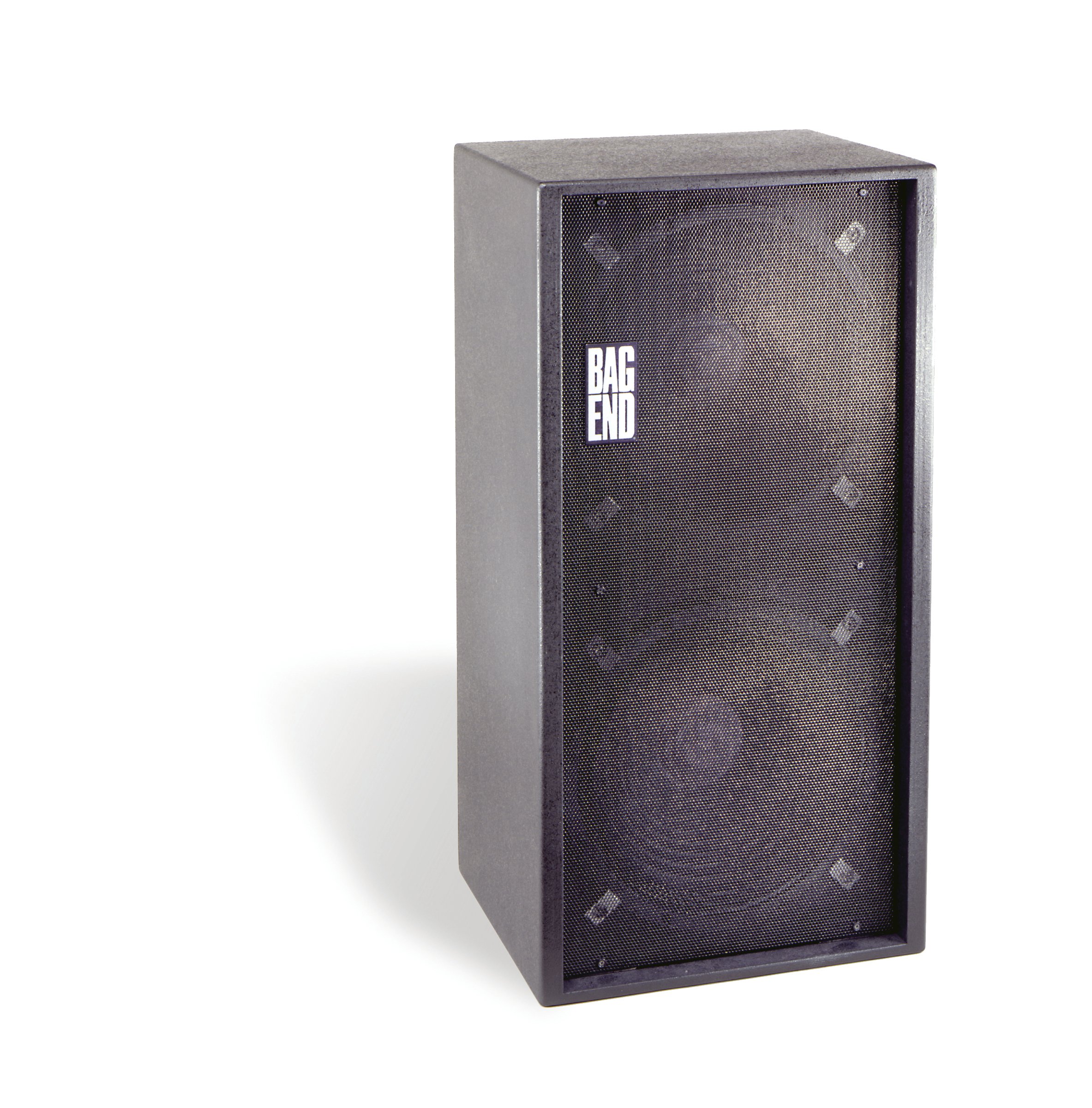

The D18E-I is a very high output INFRA subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The D18E-I provides perfectly flat response down to 8 Hertz when used in conjunction with the 8 Hertz Integrator. Designed for permanent installation, the D18E-I offers a flat black painted finish and a black coated steel grille. Bag End D18E-IF6 2x18 ELF Subwoofer with Fly Points.

The D12E-DA is a high output INFRA subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small and low profile enclosure. The D12E-DA provides perfectly flat response down to 8 Hertz when used in conjunction with the 8 Hertz Integrator. Designed primarily for permanent installation, the D12E-DA offers a total height of only 9.125 inches enabling it to fit under platforms and in tight vertical spaces. Standard features include durable black painted finish and a black coated steel grille.ApplicationsHouse of Worship5.1 Digital Format SubwooferRecording StudioPA System InstallationHome TheaterDiscothequeBag End D12E-DA
