Subwoofers D.A.S.

The DAS Audio Vantec 218A is a powered bass subwoofer system designed to provide extended bass response for the Vantec full-range cabinets. A powerful amplifier drives dual D.A.S. 18LX long excursion bass loudspeakers incorporating 4? voice coils and massive magnet structures provide high power handling and impressive output.The Vantec 218A is powered by a Class D amplifier with switch mode power supply and a 4000 Wpeak power rating. The system includes two balanced inputs (A-B) with stereo HPF filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and

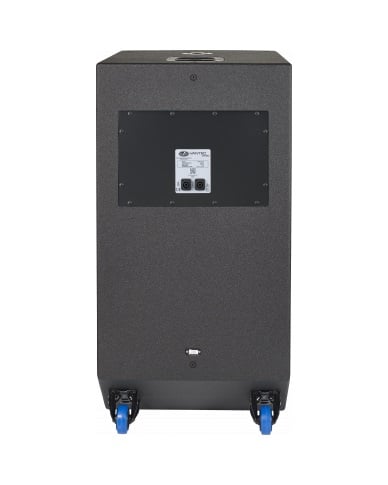

The VANTEC-218 bass system incorporates the 18LX low frequency transducer with a 4” voice coil mounted as direct radiator into a bass-reflex cabinet. The loudspeaker is protected by a rugged steel grille sealed against corrosion using a powder coat finish.The VANTEC-218 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the VANTEC-218. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier.DAS VANTEC-218 Applications:Concerts and corporate A/VPortable and live clubsTheaters and auditoriumsHouses of worshipDAS VANTEC-218 Features:Bass-reflex subwoofer systemTwin 18LX

The VANTEC-218 bass system integrates the renowned 18LX low frequency transducer, featuring a 4" voice coil, directly mounted as a radiator into a bass-reflex cabinet. To ensure durability and protection, the loudspeaker is shielded by a sturdy steel grille that is sealed against corrosion through a resilient powder coat finish.Specifically designed for biamped systems, the VANTEC-218 offers a convenient top-mounted pole-mount socket, allowing for the placement of full-range systems above the VANTEC-218 unit. The cabinet is equipped with handles on the sides and rear, facilitating easier transportation, and is further enhanced with two rear-positioned wheels for added mobility.DAS

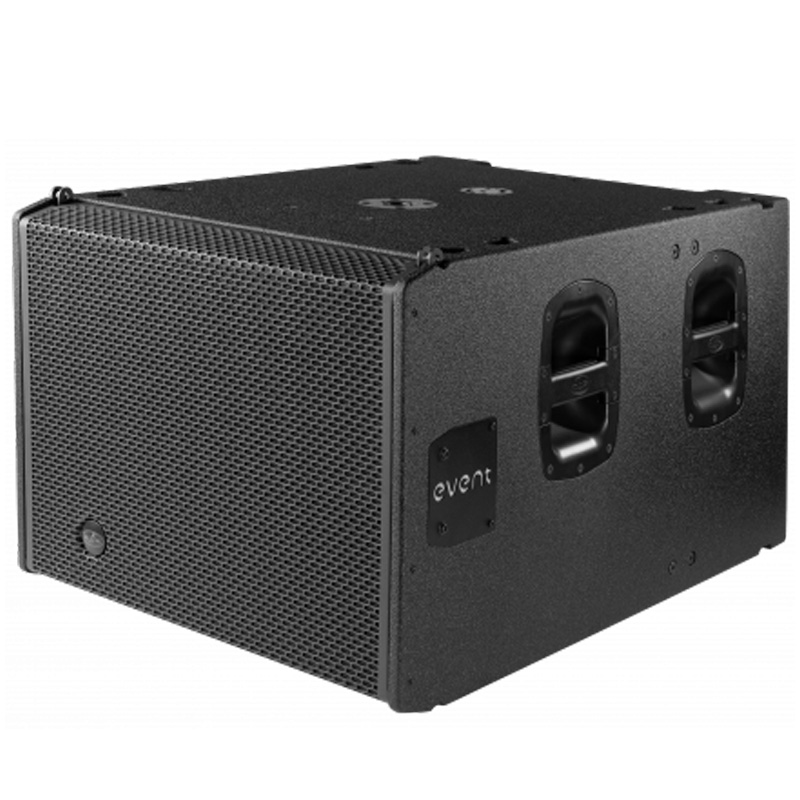

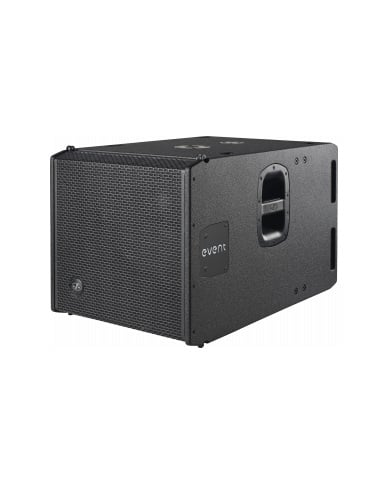

Designed as a companion subwoofer for the EVENT-26A, the powered EVENT-115A offers extraordinary performance and reliability in an extremely compact enclosure. This front-loaded model can be flown from or easily stacked above the EVENT-26A via its compatible rigging system. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3″ voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 Wprogram.Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s back plate, keeping power compression to a minimum while providing high acoustic

Dynamism meets durability. The ALTEA-718 is powerful subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3″ voice coil for long excursion.Cooling is assured thanks to the 18FW´s vented pole piece and abundant apertures in the speaker’s back plate, keeping power compression to a minimum while providing high acoustic output over extended periods. The compact Birch plywood cabinet is protected with a tough ISO-flex outer coating for long years of use in portable

More than a subwoofer. A powerful system. The ACTION-S18 is a passive direct radiation subwoofer system composed of a single 18FW4 speaker with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating, improving the system’s overall performance as a result. For long-term optimal performance, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.DAS ACTION-S18 Applications:Live sound reinforcementSpeech and vocalsMusic playback in entertainmentA/V, and institutional venuesDAS ACTION-S18

Power your next performance with the ACTION-S118A - a subwoofer system designed to provide outstanding output, and impressive bandwidth extension and distortion control. The ACTION-S118A incorporates the 18LX loudspeaker equipped with 4″ voice coil, offering an excellent power handling capacity, reduced distortion and power compression. The ACTION-S118A incorporates a high power (3200 W peak) amplifier design providing ample headroom and accuracy. The subwoofer system includes two balanced inputs with stereo 100 Hz filtered output connections for Action satellite systems. The high pass filter can be defeated to offer stereo “loop thru” connections. A variable low pass
