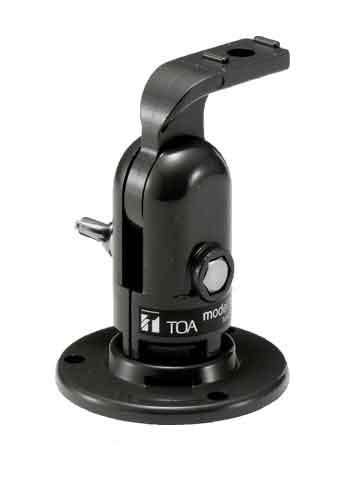

The YS-151S is a swivel bracket for mounting small horn speakers (not usable for car mounting). It permits the adjustment of the speaker installation angle for up to 360° horizontal and 180° vertical. The YS-151S features the strong, weather-resistant construction made of zinc.Applications:Applicable speakers: SC-610, SC-610M, SC-610T, SC-615, SC-615M, SC-615T, SC-630, SC-630M, SC-630T, SC-630TUIncludes:Mounting method: Mounting using1. M6 bolt (3 pcs)2. G16 cable pipe3. BandSpecifications:Finish: Bracket : Zinc, black, paintHexagon headed bolt, butterfly nut, coiled spring, and washer: Stainless steelWeight: 430g TOA YS-151S Swivel Bracket for Mounting Small Horn Speakers.

The TH-650 is a speaker horn to be used in combination with an optional driver unit. Its powder-coated finish, and stainless steel screws ensure the unit's weatherproof capability.TOA TH-650 Specifications:Applicable Drivers: TU-631, TU-631M, TU-651, TU-651MSound Pressure Level: 110dB (1W, 1m) (When operated with a driver.)Frequency Response: 200Hz - 6kHz (When operated with a driver.)Dust / Water Protection: IP65 (When operated with a driver.)Driver Coupling: 1 - 3/8 18 threads (inch screw)Operating Temperature: -20°C to +55°C (must be free from dew condensation)Finish:Horn flare and flange: Aluminum, off-white, powder coatingReflector horn: ABS resin, off-whiteBracket holder:

The TC-651M is a highly intelligible, general-purpose speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel screws ensure the unit's weatherproof capability.Specifications:Rated Input: 50WLine Voltage: 100V line or 70V lineRated Impedance:100V line: 200Ω (50W), 330Ω (30W), 670Ω (15W)70V line: 100Ω (50W), 200Ω (2W), 330Ω (15W), 670Ω (7.5W)Sensitivity: 111dB (1W, 1m)Frequency Response: 200Hz - 6kHzDust / Water Protection: IP65Polarity:Hot: Black, Com: WhiteOperating Temperature: -20°C to +60°C (-4°F to 140°F) (must be free from dew

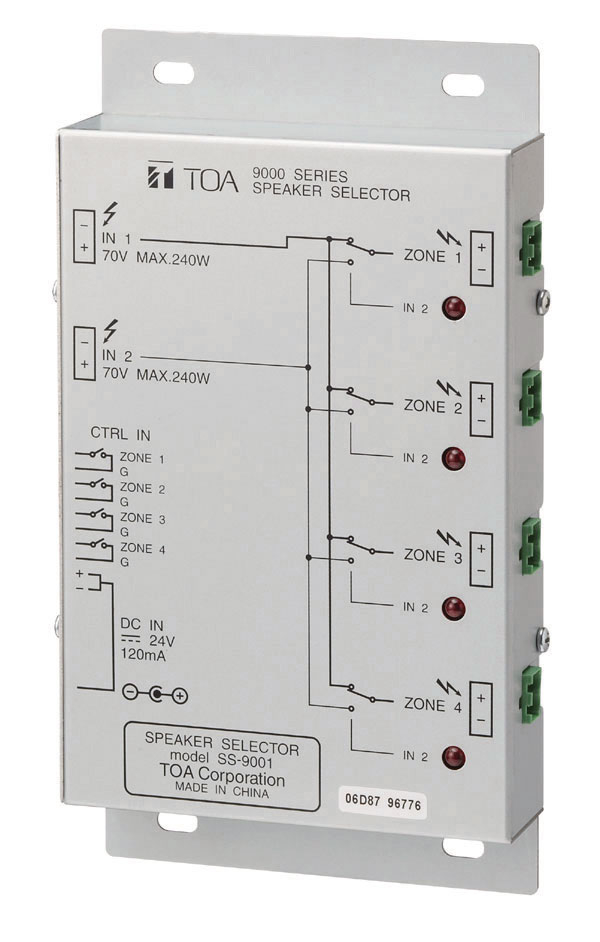

The TOA SS-9001 is a four-zone speaker selector with power supply designed for use with the 9000M2 series. This unit can switch up to four speaker lines on one amplifier output and has two speaker amplifier inputs for Paging / BGM applications.The SS-9001 works with the built-in 9000 M2 I/O control output or an optional C-001T module (sold separately).Includes:wall-mount bracket x1AD-246 model 24VDC power supply x1Removable terminal plug (2 pins) x6Removable terminal plug (10 pins) x1Cord clamp x1Mounting screw x4Specifications:Power Source: Supplied from the optional AD-246 AC adapter or an external 24VDC / 200mA power supply.Current Consumption: 120mAControl Signal: No-voltage make contact

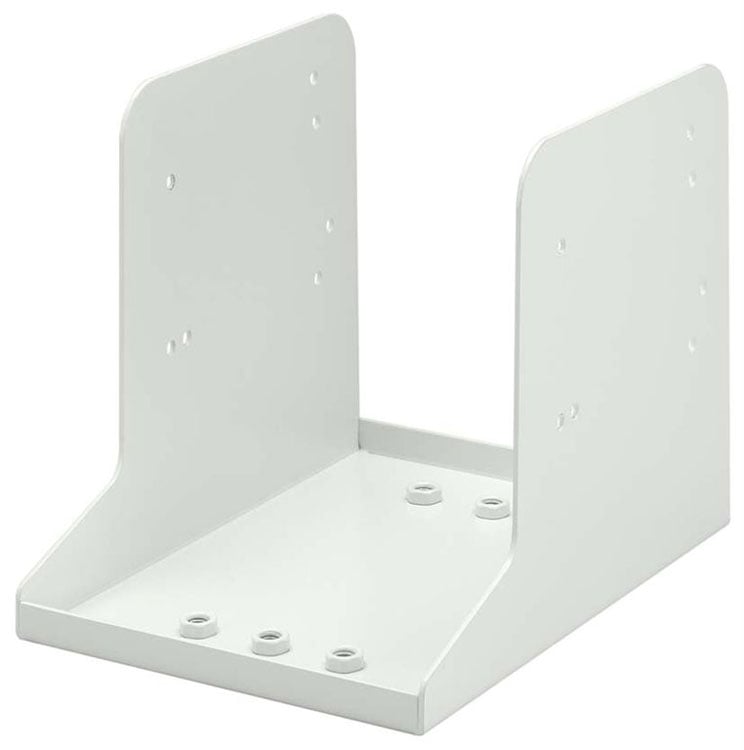

The SR-WB4WP is a wall mount bracket for the TOA SR-S4LWP speaker.Applications:The SR-WB4WP is a wall mount bracket for the TOA SR-S4LWP speaker. The SR-WB4WP bracket is used to mount the SR-S4LWP Line array speaker upright to the wall.Includes:Speaker mounting bracket A x1Speaker mounting bracket B x1Bracket base x2Speaker mounting screw (M5 upset head) x16Bracket assembling screw (M8 upset head) x8Specifications:Number of Speakers to be Mounted: Max. 2 (when jointed with an optional SR-EP4)Finish: Steel plate, white, paintWeight: 4.6kgs (including accessories) TOA SR-WB4WP Wall Mounting Bracket for Type S Speaker, Outdoor.

White wall mounting bracket for indoor use. Designed for TOA slim line array speakers.Applications:The SR-WB4 bracket is used to mount the SR-S4L Line array speaker upright to the wall.Includes:Speaker mounting bracket A x1Speaker mounting bracket B x1Bracket base x2Speaker mounting screw (M5 upset head) x16Bracket assembling screw (M8 upset head) x8Specifications:Number of Speakers to be Mounted: Max. 2 (when jointed with an optional SR-EP4)Finish: Steel plate, white, paintWeight: 4.6kgs (including accessories) TOA SR-WB4 Wall Mounting Bracket for Type S Speaker, Indoor.

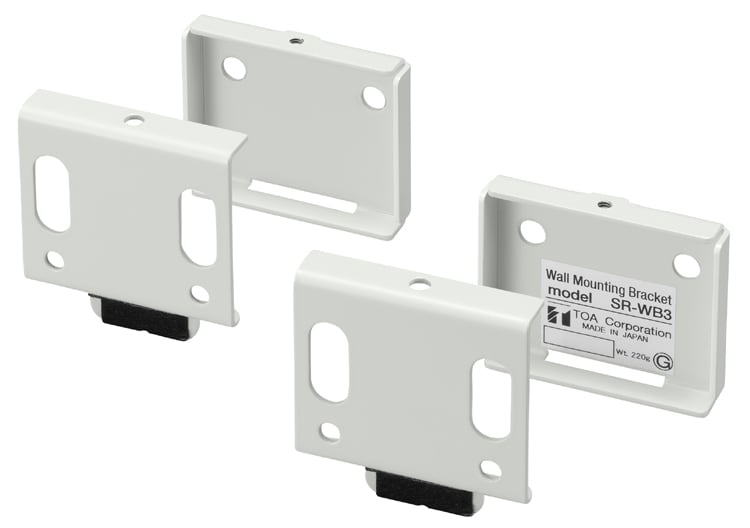

The SR-WB3 is a Wall Mounting Bracket designed to install a TOA Line Array Speaker flat against the wall.Includes:Speaker mounting bolt (hex bolt M5 × 25 (with washer)) x4Bracket fixing bolt (hex bolt M4 × 15 (with washer)) x1Specifications:Applicable Speaker: SR-H3S, SR-H3L, SR-H2S, SR-H2LFinish: Steel plate, white, paintWeight: 220g (0.49lbs) TOA SR-WB3 Wall Mounting Bracket for Type H Speaker.

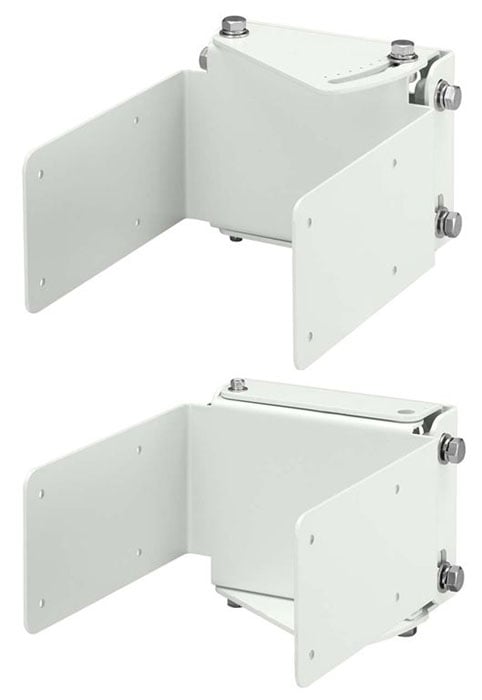

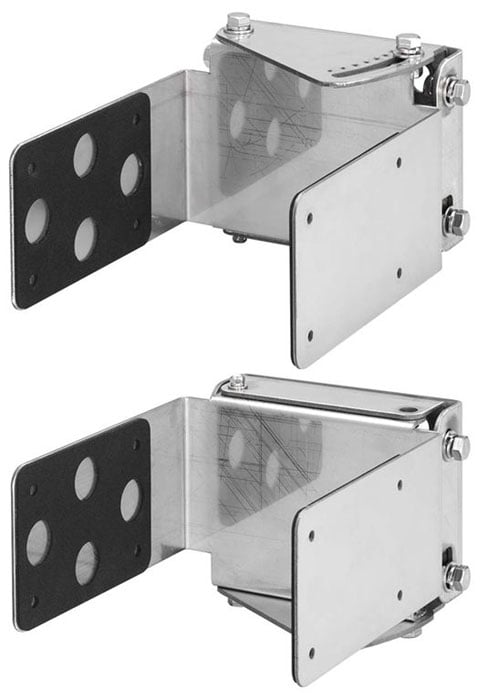

Wall tilt bracket for outdoor Slim Line Array speakers from TOA.Applications:The SR-TB4 is designed to be used to mount the Line Array Speaker system SR-S4L or SR-S4S on a wall. The downward angle can be set to 0° - 5°, and the horizontal angle to up to 20°.Includes:Speaker mounting bracket x1Bracket base x1Bracket assembling screw (M8 upset head) x4Speaker mounting screw (M5 upset head) x8Specifications:Number of Speakers to be Mounted: 1Finish: Steel plate, white, paintDimensions: 166 (W) × 247 (H) × 201 (D) mm (complete assembly)Weight: 2.8kgs TOA SR-TB4WP Wall Tilt Bracket for Type S Speaker, Outdoor.

The SR-TB4 is a wall tilt bracket for TOA SR-S Series speakers.Applications:The SR-TB4 is designed to be used to mount the Line Array Speaker system SR-S4L or SR-S4S on a wall. The downward angle can be set to 0° - 5°, and the horizontal angle to up to 20°.Includes:Speaker mounting bracket x1Bracket base x1Bracket assembling screw (M8 upset head) x4Speaker mounting screw (M5 upset head) x8Specifications:Number of Speakers to be Mounted: 1Finish: Steel plate, white, paintDimensions: 166 (W) × 247 (H) × 201 (D) mm (complete assembly)Weight: 3.2kgs TOA SR-TB4 Wall Tilt Bracket for Type S Speaker, Indoor.

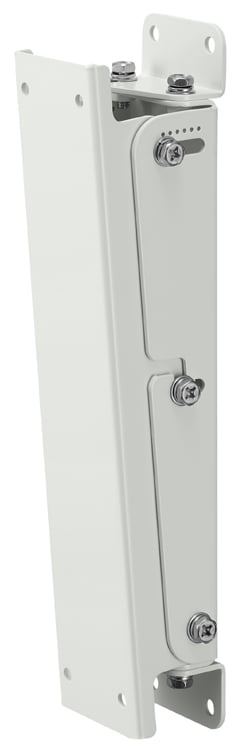

The SR-TB3 is a Wall Tilt Bracket designed to install a TOA Line Array Speaker flat against the wall. The downward angle can be set to 0 - 5 degrees, and the horizontal angle to up to 15 degrees.Includes:Bracket assembling bolt (hex bolt M6 × 16 (with washer)) x10Speaker mounting bolt (hex bolt M5 × 25 (with washer)) x4Specifications:Applicable Speaker: SR-H3S, SR-H3L, SR-H2S, SR-H2LFinish: Steel plate, white, paintDimensions: 64mm (W) × 296mm (H) × 50mm (D) (2.52" × 11.65" × 1.97")Weight: 1.4kgs (3.09lbs) TOA SR-TB3 Wall Tilt Bracket for Type H Speaker.

TOA's SR-T5 is a 2-way Line Array speaker in which woofers and tweeters are placed vertically in close proximity to each another. The speech clarity is excellent and makes it great for installation in sports facilities with strong reverberation, such as gymnasiums. Sturdy impact-resistant construction allows the speaker to be used as a main speaker in small- or medium-scale indoor sports facilitiesTOA SR-T5 Specifications:Enclosure:Bass-reflex typePower Handling Capacity:Continuous pink noise: 250 WContinuous program: 750 WRated Impedance:8 ΩSensitivity:96 dB (1 W, 1 m equivalent, measured at 4 m)Frequency Response:70 Hz - 20 kHzCrossover Frequency:3 kHzDirectivity Angle:Horizontal:

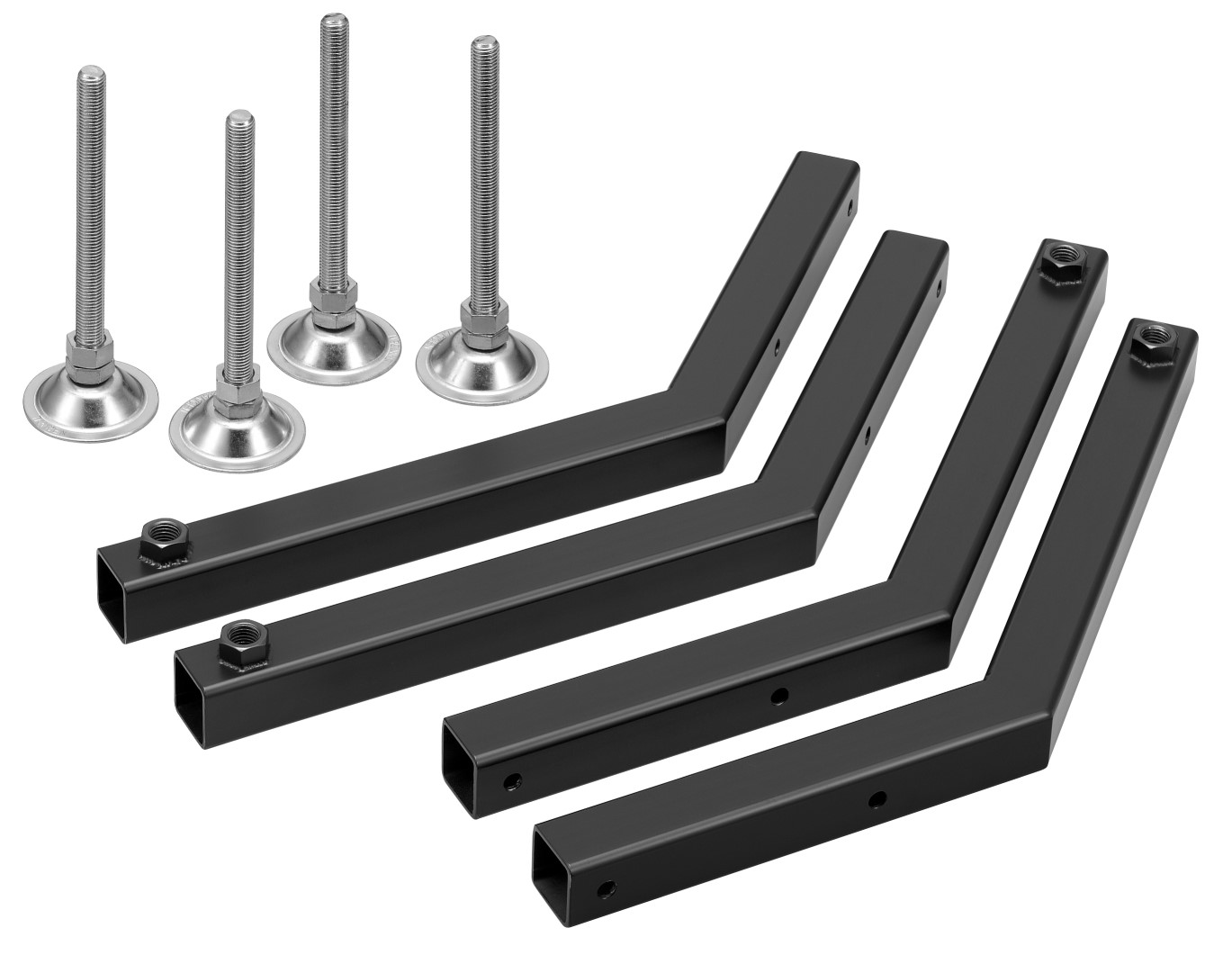

The SR-SB8 Rigging Support Bracket is used to prevent the stacked Line Array Speakers from tipping over. It must be used in conjunction with the optional SR-RF8 Rigging Frame. It comes in a set of 4 brackets.Specifications:Finish: Steel plate, black, paintDimensions: 517.5 (W) × 208 (H) × 275.8 (D) mm (20.37" × 8.19" × 10.86")Weight: 10kgs (22.05lbs) (total weight of 4 pieces) TOA SR-SB8 Rigging Support Bracket for SR-C Series Speaker.

Stand adapter for SR-S Series slim line array speakers.Includes:Speaker mounting bolt (hex bolt M5 × 25 (with washer)) x4Specifications:Applicable Speaker: SR-H3S, SR-H3L, SR-H2S, SR-H2LFinish: Steel plate, black, paintDimensions: 62 (W) × 385 (H) × 69 (D) mm (2.44" × 15.16" × 2.72")Finish: 1.4kgs (3.09lbs) TOA SR-SA4 Stand Adapter for SR-S Series Speaker.

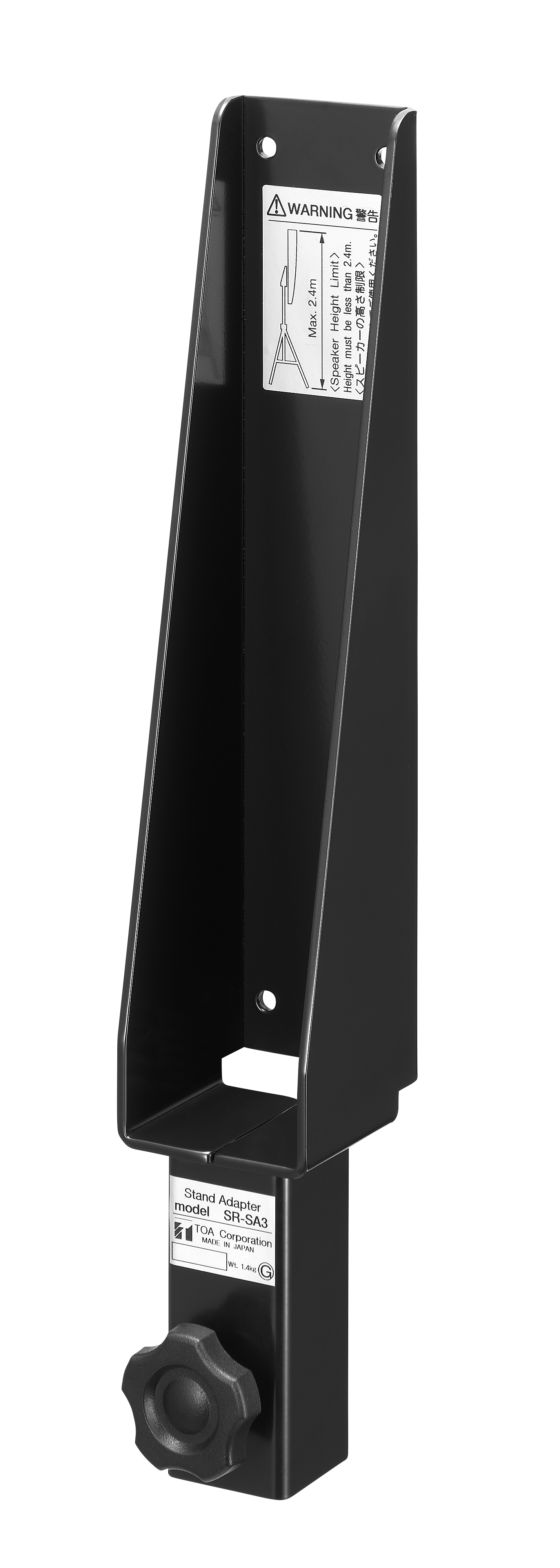

The SR-SA3 is designed to be used to mount a TOA Line Array Speaker on a speaker stand.Includes:Speaker mounting bolt (hex bolt M5 × 25 (with washer)) x4Specifications:Applicable Speaker: SR-H3S, SR-H3L, SR-H2S, SR-H2LFinish: Steel plate, black, paintDimensions: 62 (W) × 385 (H) × 69mm (D) (2.44" × 15.16" × 2.72")Finish: 1.4kgs (3.09lbs) TOA SR-SA3 Stand Adapter Mount for Type Ha Speaker.

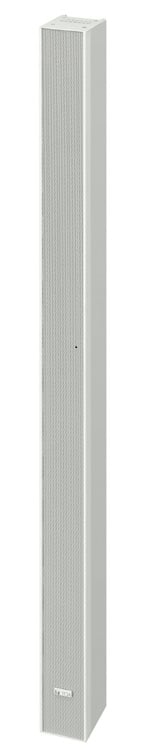

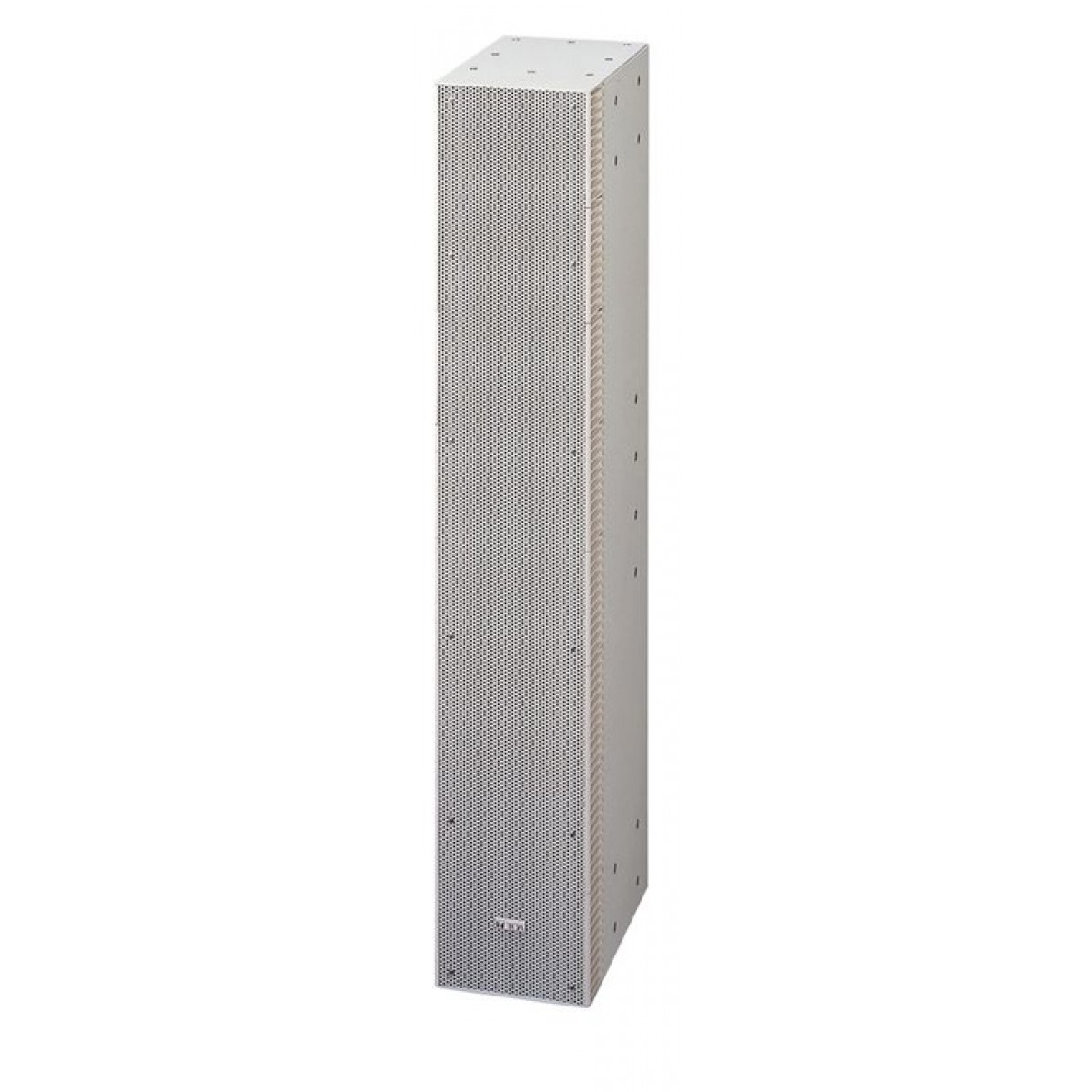

The compact SR-S Series Slim Line Arrays are the ideal choice for applications requiring clear speech intelligibility such as houses of worship, AV presentation and educational facilities. The SR-S4L (long-throw) speaker offers eight 4" cone drivers and twenty-four 1" balanced dome tweeters, all aligned to form a continuous linear sound source. Options include weather resistant models, multiple mounting hardware options and 70V transformer. The SR-S Series are backed with a five year warranty. This version is weather-resistant.Includes:Bi-amplifier drive rating label x1Bi-amplifier drive input indication label x1Features:Slim compact design ideal for speech applicationsLow visual profile

The SR-RF8WP Rigging Frame is used for flying the SR-C8LWP, SR-C8SWP, or SR-C15BWP Line array speakers.Includes:Plate mounting bolt (M10) x8Specifications:Applicable Speaker:SR-C8LWP, SR-C8SWP, SR-C15BWPNumber of Speakers to be Mounted: Max. 12 (SR-C158BWP (option) is counted as 2 pieces.)Finish: Stainless steel, black, paintDimensions: 510 (W) × 167 (H) × 690 (D) mm (20.08" × 6.58" × 27.17") (excluding bolts)Weight: 17kgs (37.48lbs) (including accessories) TOA SR-RF8WP Rigging Frame for SR-C Series Speaker, Weather Protection.

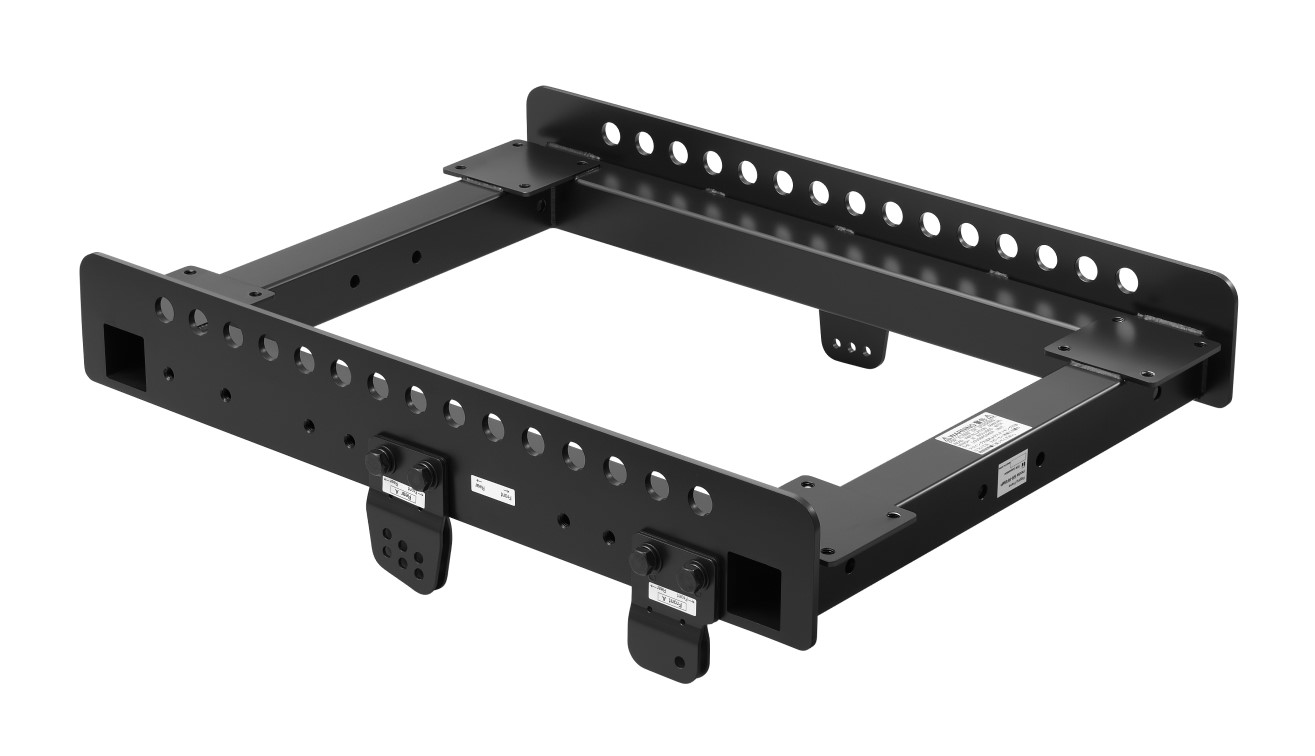

The SR-RF8 Rigging Frame is used for flying or stacking the SR-C8L, SR-C8S, or SR-C15B Line array speakers.Includes:Plate mounting bolt (M10) x12Fixing plate x4Sub-woofer receptacle piece x2Specifications:Applicable Speaker: SR-C8L, SR-C8S, SR-C15BNumber of Speakers to be Mounted: Flying: Max. 12 (SR-C158B (option) is counted as 2 pieces.)Stacked system: Max. 8 (SR-C15B (option) is counted as 2 pieces.)Finish: Steel plate, black, paintDimensions: 510 (W) × 167 (H) × 690 (D) mm (20.08" × 6.58" × 21.17") (excluding bolt)Weight: 18.5kgs (40.78lbs) (including accessories) TOA SR-RF8 Rigging Frame for SR-C Series Speaker.

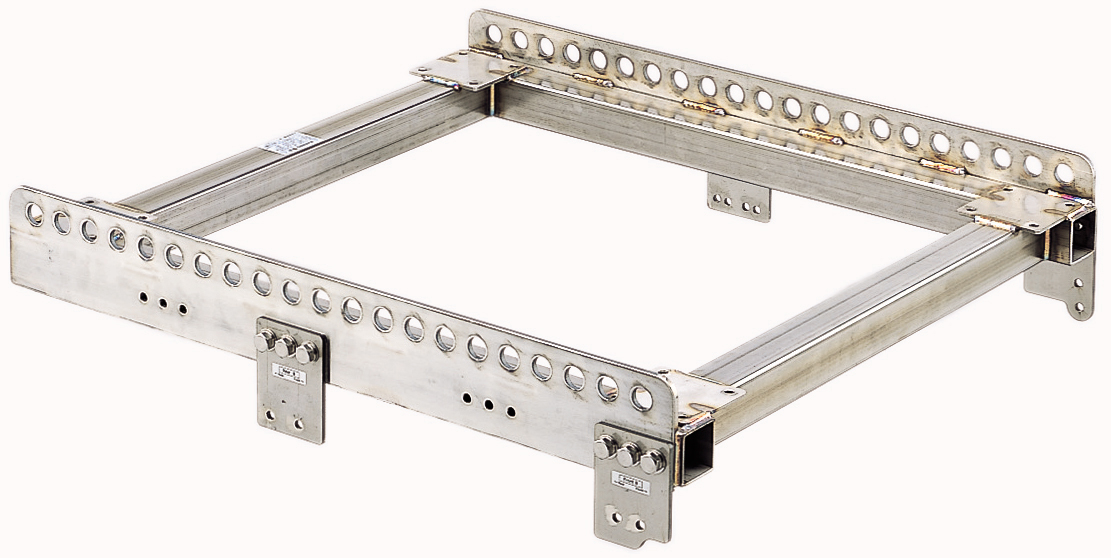

The SR-RF12WP Rigging frame is used for flying the SR-A12LWP, SR-A12SWP Line array speakers.Includes:Plate mounting bolt (M10) x12Specifications:Number of Speakers to be Mounted: Flying: Max. 8Finish: Stainless steelDimensions: 728 (W) × 164 (H) × 800 (D) mm (excluding bolt)Weight: 22kgs (including accessories) TOA SR-RF12WP Rigging Frame for SR-A Series Speaker, Weather Protection.

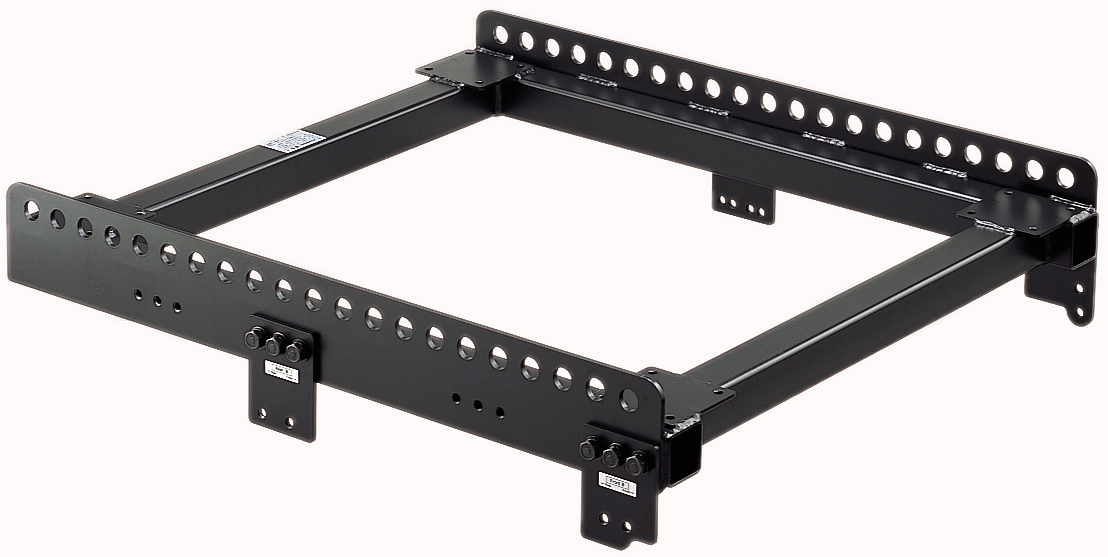

The SR-RF12 Rigging Frame is used for flying or stacking the SR-A12L, SR-A12S, or SR-A18B Line array speakers.Includes:Plate mounting bolt (M10) x12Specifications:Number of Speakers to be Mounted: Flying: Max. 8 (SR-A18B (option) is counted as 1.5 pieces.)Stacked system: Max. 5.5 (SR-A18B (option) is counted as 1.5 pieces.)Finish: Steel plate, black, paintDimensions: 728 (W) × 164 (H) × 800 (D) mm (excluding bolt)Weight: 22kgs (including accessories) TOA SR-RF12 Rigging Frame for SR-A Series Speaker.

Protection pad for slim line array speakers from TOA. The SR-PP4 Protection Pad helps reduce the chance of injury when the speaker is installed at head height.Specifications:Finish: Synthetic rubber, blackDimensions: 168 (W) × 8 (H) × 59 (D) mmWeight: 40g TOA SR-PP4 Rubber Protector for Type S Speaker.

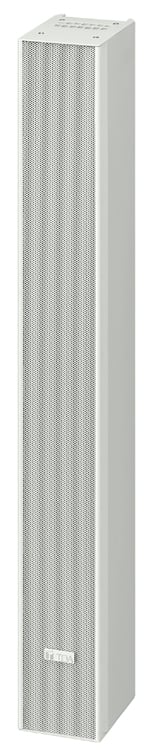

The TOA SR-H3L Line Array Speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching Transformer.Specifications:Enclosure: Bass-reflex typePower Handling Capacity: Continuous program: 360WRated Impedance: 8ΩSensitivity: 95dB (1W, 1m equivalent, measured @ 8m)Frequency Response: 110 - 18,000Hz (when using an optional digital processor)Directivity Angle: Horizontal: 90°, Vertical: 0° (within the range of speaker height)Speaker Component: 7cm (2.8") cone-type × 16Input Connector: Removable input connectorFinish:Enclosure: MDF,

The TOA SR-H2S Line Array Speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching Transformer.Specifications:Enclosure: Bass-reflex typePower Handling Capacity: Continuous program - 180WRated Impedance: 8ΩSensitivity: 90dB (1W, 1m equivalent, measured at 4m)Frequency Response: 90 Hz - 17kHz (when using an optional digital processor)Directivity Angle:Horizontal: 90 DegreesVertical: 20 DegreesSpeaker Component: 2.8" (7cm) cone-type x 9Input Connector: Removable input connectorFinish:Enclosure: MDF, white, urethane paintFront grille:

The SR-H2L Line Array Speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching Transformer.Specifications:Enclosure: Bass-reflex typePower Handling Capacity: Continuous program: 180WRated Impedance: 8ΩSensitivity: 92dB (1W, 1m equivalent, measured @ 4m)Frequency Response: 80 - 18,000Hz (when using an optional digital processor)Directivity Angle: Horizontal: 90°, Vertical: 0° (within the range of speaker height)Speaker Component: 7cm (2.8") cone-type × 9Input Connector: Removable input connectorFinish:Enclosure: MDF, white,

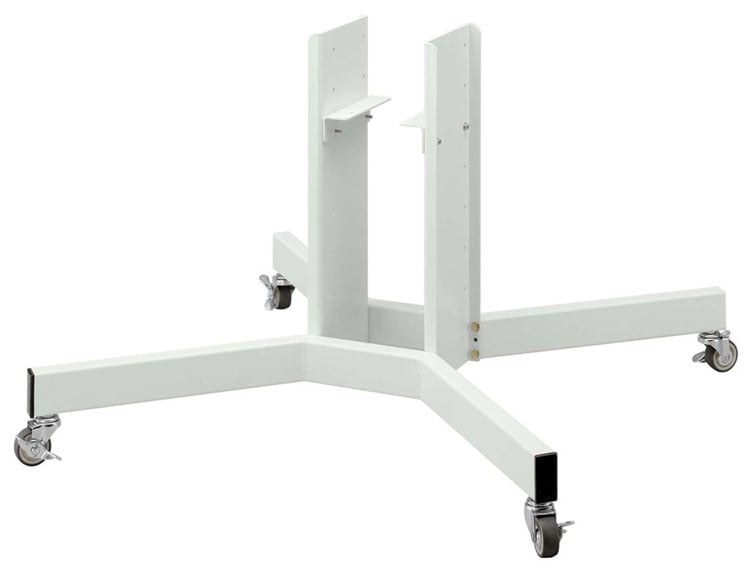

Floor stand for SR-S Series slim line array speakers.The SR-FS4 Floor Stand is designed exclusively for use with a stack of 2 SR-S4L Line Array Speakers. Mounted on casters with lock, it can be easily moved.Includes:Speaker mounting screw (M5 upset head) x8Specifications:Number of Speakers to be Mounted: 2 (when joined with an optional SR-EP4)Finish: Steel plate, white, paintWeight: 12kgs TOA SR-FS4 Floor Stand for Type S Speaker.
