Speakers Belden

2-Conductor 10 AWG BC Speaker Cable, Unshielded and WaterblockedBelden 8810WB-1000 Specifications:Construction Details:CONDUCTORNo. of Elements: 1Size: 10 AWGStranding: 19x23Material: BC - Bare CopperMaterial: No ShieldOUTER JACKETSeparator: Waterblocking TapeMaterial: PVC - Polyvinyl ChlorideNom. Thickness: 0.050 in (1.3 mm)Nom. Diameter: 0.462 inRipcord: YesOverall Cable Diameter (Nominal): 0.462 inElectrical Characteristics:ELECTRICALS:Nom. Conductor DCR: 1 Ohm/1000ftMax. Current: 42 Amps per Conductor at 25ºCUL Voltage Rating: 600 V (TC), 150 V (NPLF)Mechanical Characteristics:TEMPERATURE:UL Temperature: UL Type TC: 90°C Dry, 75°C Wet; NPLF: 90°COperating: -30°C To

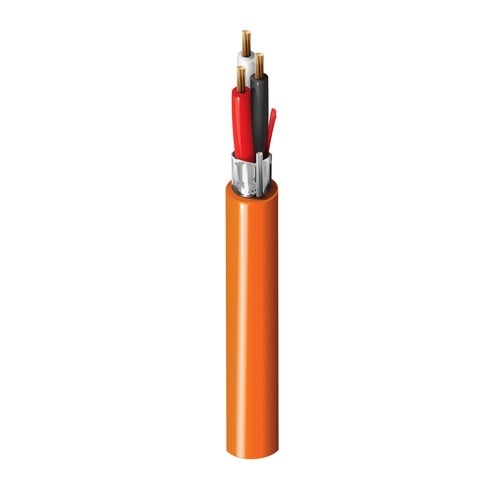

22 AWG bare copper conductors, Flamarrest® insulation, conductors cabled, Overall Beldfoil® tape shield (foil side out) and drain wire, Flamarrest® jacket with ripcord, sequential footage marking every two feet.Applications:Intercom/ PA SystemsSound/ Audio SystemsSpecifications:Conductor:- # of Conductors: 3- AWG: 22- Stranding: 7x26- Conductor Material: BC - Bare CopperInsulation Material:- Trade Name: Flamarrest®- Insulation Material: LS PVC - Low Smoke Polyvinylchloride- Wall Thickness (in.): 0.009Outer Shield Material:- Trade Name: Beldfoil®- Type: Tape- Outer Shield Material: Aluminum Foil - Polyester Tape w/ Shorting Fold- Coverage: 100%Outer Shield Drain Wire AWG:-

Security & Commercial Audio Cable, Plenum-CMP, 2-22 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcordSuitable Applications:Intercom/PA Systems and Sound/Audio SystemsConductor:AWG:Number of Conductors: 2AWG: 22Stranding: 7x30Conductor Material: BC - Bare CopperTotal Number of Conductors: 2Insulation Material:Insulation Trade Name: Flamarrest®Insulation Material Wall: LS PVC - Low Smoke Polyvinyl ChlorideThickness: 0.229 mmOuter Shield Material:Outer Shield Trade Name: Beldfoil®Type: TapeOuter Shield Material: Aluminum Foil-Polyester Tape with Shorting FoldCoverage: 100%Outer Shield Drain Wire AWG:AWG:

Commercial Audio Systems - 2 Conductors Cabled (500 feet)Specifications# Conductors: 2AWG: 16Stranding: 65x34Conductor Material: Bare High Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Shield Material: UnshieldedPlenum: NoVoltage: 300 V RMS Belden 5200UP-500 500 ft of 16 AWG 2 Conductor High Strand Speaker Wire - DK GREEN.

Commercial Audio Systems - 2 Conductors Cabled (500 feet)Specifications# Conductors: 2AWG: 16Stranding: 65x34Conductor Material: Bare High Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Shield Material: UnshieldedPlenum: NoVoltage: 300 V RMS Belden 5200UP-500 500 ft of 16 AWG 2 Conductor High Strand Speaker Wire - BLACK.

Commercial Audio Systems - 2 Conductors Cabled (500 feet)Specifications# Conductors: 2AWG: 16Stranding: 65x34Conductor Material: Bare High Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Shield Material: UnshieldedPlenum: NoVoltage: 300 V RMS Belden 5200UP-500 500 ft of 16 AWG 2 Conductor High Strand Speaker Wire - GRAY.

Commercial Audio Systems - 2 Conductors Cabled (500 feet)Specifications# Conductors: 2AWG: 16Stranding: 65x34Conductor Material: Bare High Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Shield Material: UnshieldedPlenum: NoVoltage: 300 V RMS Belden 5200UP-500 500 ft of 16 AWG 2 Conductor High Strand Speaker Wire - WHITE.

14 AWG bare copper conductors, PP insulation, PVC jacket with ripcord. Sequential footage marking every two feet. Belden 5102UE-1000 Speaker Wire 14g 4-Conductor, Gray.

This unit is 1000' of 2-conductor speaker cable, made from 14 AWG bare high-conductivity ETP copper conductors, highly stranded for ultra flexibility, high-grade PVC insulation, PVC jacket with ripcord, sequential footage marking every two feet.Specifications:# of Conductors: 2AWG: 14Stranding: 42 x 30Conductor Material: Bare High-Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideInsulation Wall Thickness: 0.020"Outer Shield Material: UnshieldedOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Jacket Nominal Wall Thickness: 0.015"Overall Nominal Diameter: 0.260" Belden 5100UP-U1000 1000 ft of 14AWG 2-Conductor Speaker Wire - DK GREEN.

This unit is 1000' of 2-conductor speaker cable, made from 14 AWG bare high-conductivity ETP copper conductors, highly stranded for ultra flexibility, high-grade PVC insulation, PVC jacket with ripcord, sequential footage marking every two feet.Specifications:# of Conductors: 2AWG: 14Stranding: 42 x 30Conductor Material: Bare High-Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideInsulation Wall Thickness: 0.020"Outer Shield Material: UnshieldedOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Jacket Nominal Wall Thickness: 0.015"Overall Nominal Diameter: 0.260" Belden 5100UP-U1000 1000 ft of 14AWG 2-Conductor Speaker Wire - WHITE.

This unit is 1000' of 2-conductor speaker cable, made from 14 AWG bare high-conductivity ETP copper conductors, highly stranded for ultra flexibility, high-grade PVC insulation, PVC jacket with ripcord, sequential footage marking every two feet.Specifications:# of Conductors: 2AWG: 14Stranding: 42 x 30Conductor Material: Bare High-Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideInsulation Wall Thickness: 0.020"Outer Shield Material: UnshieldedOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Jacket Nominal Wall Thickness: 0.015"Overall Nominal Diameter: 0.260" Belden 5100UP-U1000 1000 ft of 14AWG 2-Conductor Speaker Wire - GRAY.

This unit is 1000' of 2-conductor speaker cable, made from 14 AWG bare high-conductivity ETP copper conductors, highly stranded for ultra flexibility, high-grade PVC insulation, PVC jacket with ripcord, sequential footage marking every two feet.Specifications:# of Conductors: 2AWG: 14Stranding: 42 x 30Conductor Material: Bare High-Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideInsulation Wall Thickness: 0.020"Outer Shield Material: UnshieldedOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Jacket Nominal Wall Thickness: 0.015"Overall Nominal Diameter: 0.260" Belden 5100UP-U1000 1000 ft of 14AWG 2-Conductor Speaker Wire - BLUE.

This unit is 1000' of 2-conductor speaker cable, made from 14 AWG bare high-conductivity ETP copper conductors, highly stranded for ultra flexibility, high-grade PVC insulation, PVC jacket with ripcord, sequential footage marking every two feet.Specifications:# of Conductors: 2AWG: 14Stranding: 42 x 30Conductor Material: Bare High-Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideInsulation Wall Thickness: 0.020"Outer Shield Material: UnshieldedOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Jacket Nominal Wall Thickness: 0.015"Overall Nominal Diameter: 0.260" Belden 5100UP-U1000 1000 ft of 14AWG 2-Conductor Speaker Wire - BLACK.

Commercial Audio Systems - 2 Conductors Cabled (500 feet)Specifications# Conductors: 2AWG: 14Stranding: 42x30Conductor Material: Bare High-Conductivity ETP CopperInsulation Material: PVC - Polyvinyl ChlorideOuter Jacket Material: PVC - Polyvinyl ChlorideOuter Shield Material: UnshieldedPlenum: NoVoltage: 300 V RMS Belden 5100UP-500 Wire Speaker 14g 2Con - BLACK.
