Gigabyte Z490 AORUS PRO AX
Towards:gaming
Form Factor:ATX
Socket:Intel LGA 1200
Chipset:Intel Z490
BIOS:Ami
RAM slots:DDR4 4 sl
RAM form factor:DIMM
RAM clock:5000 MHz
Sound (channels):7.1
Connectors:HDMI, M.2
Power connector:24 pin
Processor power:8+4 pin
One of Gigabyte's richly equipped top-end 2020 gaming motherboards from Gigabyte's flagship AORUS line. Based on Intel Z490 chipset, equipped with LGA 1200 socket to support 2/4/6/8/10-core 10th generation Intel Core i9/i7/i5/i3/Pentium/Celeron processors with Comet Lake microarchitecture (14nm ). It is positioned as a product of the upper price category, designed to create performant gaming configurations (including multiGPU systems using AMD 2-Way CrossFireX and Nvidia 2-Way SLI technology).
The Gigabyte Z490 AORUS PRO AX motherboard is equipped with an enhanced digital 12-phase power subsystem, supports advanced overclocking functions and will be of interest to enthusiasts who can get a performance boost through the use of fine manual tuning and non-standard operating modes of system components. Equipped with four slots for installing DDR4 RAM modules (up to 5000 MHz, with XMP technology) with an impressive total capacity of 128 GB. The processing of intensive network traffic is provided by the 2.5GbE Intel I225-V controller, the 8-channel Realtek ALC1200 audio codec with an improved analogue path is responsible for audio output. In addition, a dual-band Wi-Fi 6 module (802.11n / ac / ax) with Bluetooth 5.1 is provided.
All specifications
Series Gigabyte Aorus (gaming)
ATX, socket AMD AM4, chipset AMD B550, 4 x DDR4, DIMM, 4733 MHz, USB C, HDMI, DisplayPort, M.2, LAN 2.5 Gbps, M.2 cooling
gaming, 27 ", 2560x1440 (16:9), QD-OLED, response 0.03 ms, 240 Hz, HDMI, v 2.1, DisplayPort, USB C, Power Delivery, USB 3.1, KVM-switch, speakers, AMD FreeSync Premium Pro, HDR, TÜV Rheinland
high performance, game, 16 ", matte, 2560x1600 (16:10), IPS, 165 Hz, Core i9, 14900HX, 1.6 GHz, RAM 32 GB, DDR5, RTX 4070, SSD M.2 NVMe, 2048 GB, USB 3.2 gen2, USB C gen2, USB4, Thunderbolt, Windows 11 Home, Wi-Fi 7, VR, fast charge, FaceID, 2.3 kg
micro-ATX, socket AMD AM4, chipset AMD B550, 4 x DDR4, DIMM, 4733 MHz, USB C, HDMI, M.2, no backlight
gaming, 34 ", 3440x1440 (21:9), curved 1800R, QD-OLED, response 0.03 ms, 175 Hz, HDMI, v 2.1, DisplayPort, USB C, Power Delivery, USB 3.1, KVM-switch, speakers, AMD FreeSync Premium, VESA Adaptive-Sync, HDR
game, 15.6 ", matte, 2560x1440 (16:9), IPS, 165 Hz, Core Ultra 7, 155H, 0.9 GHz, RAM 16 GB, DDR5, RTX 4060, SSD M.2 NVMe, 1024 GB, USB 3.2 gen1, USB 3.2 gen2, USB C gen2, USB4, Thunderbolt, Windows 11 Home, Wi-Fi 6E, VR, fast charge, FaceID, 2.39 kg
ATX, socket AMD AM5, chipset AMD B650, 4 x DDR5, DIMM, 8000 MHz, USB C, HDMI, DisplayPort, M.2, LAN 2.5 Gbps, Wi-Fi, M.2 cooling, no backlight
gaming, 34 ", 3440x1440 (21:9), curved 1800R, QD-OLED, response 0.03 ms, 240 Hz, HDMI, v 2.1, DisplayPort, USB C, Power Delivery, USB 3.1, KVM-switch, speakers, AMD FreeSync Premium, VESA Adaptive-Sync, HDR
high performance, game, 16 ", matte, 2560x1600 (16:10), IPS, 165 Hz, Core i7, 14650HX, 1.6 GHz, RAM 32 GB, DDR5, RTX 4070, SSD M.2 NVMe, 1024 GB, USB 3.2 gen2, USB C gen2, USB4, Thunderbolt, Windows 11 Home, Wi-Fi 7, VR, fast charge, FaceID, 2.3 kg
ATX, socket AMD AM4, chipset AMD B450, 4 x DDR4, DIMM, 3600 MHz, USB C, HDMI, M.2, > 4 SATA3, CrossFire, M.2 cooling, suitable for mining
gaming, 27 ", 2560x1440 (16:9), QD-OLED, response 0.03 ms, 360 Hz, HDMI, v 2.1, DisplayPort, USB C, Power Delivery, USB 3.1, KVM-switch, speakers, AMD FreeSync Premium Pro, HDR, TÜV Rheinland
game, 16 ", matte, 2560x1600 (16:10), IPS, 165 Hz, Core i7, 13650HX, 1.9 GHz, RAM 16 GB, DDR5, RTX 4060, SSD M.2 NVMe, 1024 GB, USB 3.2 gen2, USB C gen2, USB4, Thunderbolt, Windows 11 Home, Wi-Fi 7, VR, fast charge, FaceID, 2.3 kg
micro-ATX, socket AMD AM5, chipset AMD B650, 4 x DDR5, DIMM, 8000 MHz, USB C, HDMI, DisplayPort, M.2, LAN 2.5 Gbps, Wi-Fi, M.2 cooling
gaming, 31.5 ", 4K, 3840x2160 (16:9), QD-OLED, response 0.03 ms, 240 Hz, HDMI, v 2.1, DisplayPort, mini DisplayPort, USB C, Power Delivery, USB 3.1, KVM-switch, speakers, AMD FreeSync Premium Pro, HDR, TÜV Rheinland
game, 15.6 ", 1920x1080 (16:9), IPS, 144 Hz, Core i7, 12700H, 1.7 GHz, RAM 16 GB, DDR4, RTX 3070 Max-Q, SSD M.2 NVMe, 512 GB, USB 3.2 gen1, USB4, Thunderbolt, Windows 11 Home, Wi-Fi 6E, VR, 2.3 kg
ATX, socket AMD AM5, chipset AMD B650, 4 x DDR5, DIMM, 8000 MHz, USB C, HDMI, DisplayPort, M.2, LAN 2.5 Gbps, Wi-Fi, M.2 cooling, no backlight
gaming, 31.5 ", 4K, 3840x2160 (16:9), QD-OLED, response 0.03 ms, 240 Hz, HDMI, v 2.1, DisplayPort, USB C, Power Delivery, USB 3.1, KVM-switch, speakers, AMD FreeSync Premium Pro, HDR, TÜV Rheinland
game, 15.6 ", 1920x1080 (16:9), IPS, 240 Hz, Core i7, 11800H, 2.3 GHz, RAM 16 GB, DDR4, RTX 3060 Max-Q, SSD M.2 NVMe, 512 GB, USB 3.2 gen1, USB4, Thunderbolt, Windows 10 Home, Wi-Fi 6, VR, 2.2 kg
ATX, socket AMD AM5, chipset AMD B650, 4 x DDR5, DIMM, 8000 MHz, USB C, HDMI, M.2, LAN 2.5 Gbps, Wi-Fi, M.2 cooling
gaming, 49 ", 5120x1440 (32:9), curved Curved screen, QD-OLED, response 0.03 ms, 144 Hz, HDMI, v 2.1, DisplayPort, USB C, Power Delivery, USB 3.1, KVM-switch, speakers, HDR, TÜV Rheinland
Video reviews

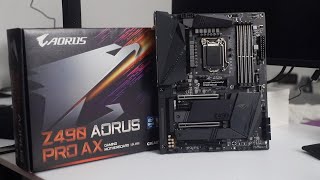

The Mighty Aorus Z490 PRO AX from Gigabyte!
30 April 20206 709 view

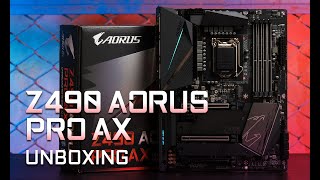

AORUS INDIA | Z490 AORUS PRO AX | Unboxing
