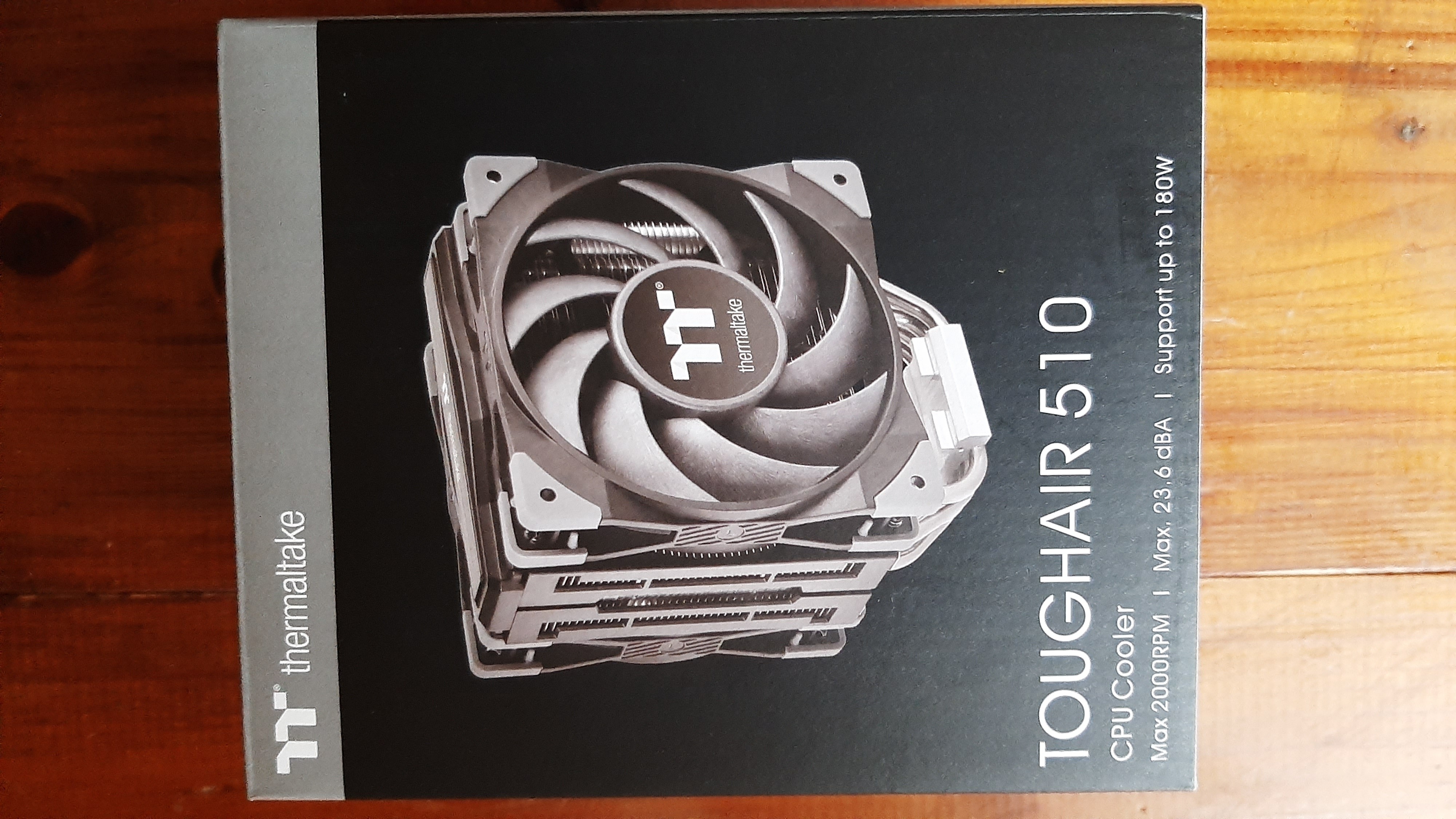

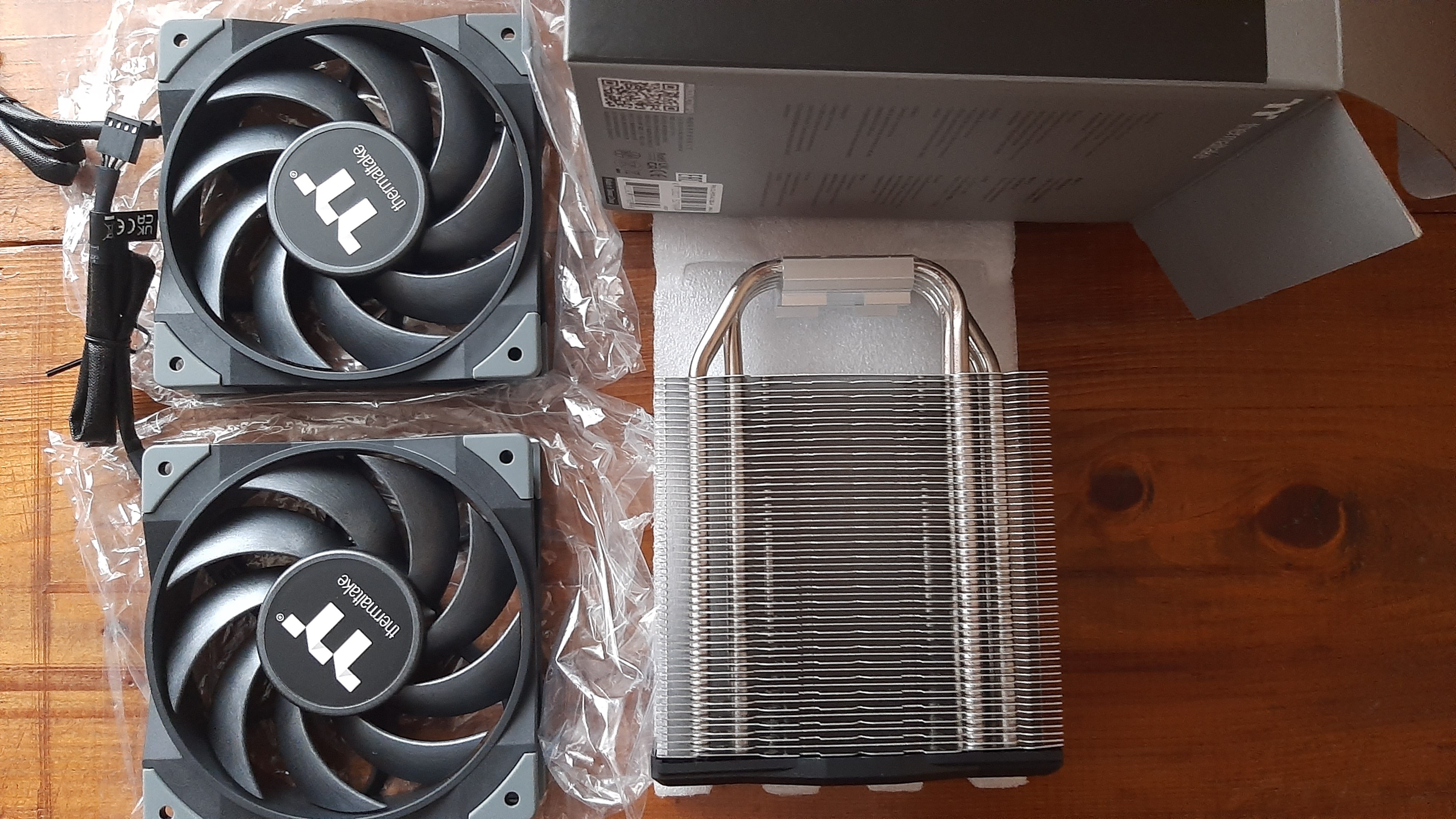

Thermaltake Toughair 510

Photos - Computer Cooling Thermaltake Toughair 510
Videos 9Photos 6
from $59.99 up to $70.23
add to listmy lists
Thermaltake Toughair 510
ToughHair (cooler)Backplatedouble fanheat pipescontrol
Type:air cooler
Suitable for:for CPU
Socket Intel:1150, 1155/1156, 1151/1151 v2, 1200, 1700 / 1851
Socket AMD:AM2/AM3/FM1/FM2, AM4
Fan:⌀ 120 mm
Revolutions:up to 2000 rpm
Heat pipes:4
TDP:180 W
Height:160 mm
All specifications
Specifications Toughair 510
Main specs
Featuresfor CPU
Product typeair cooler
Air flow directionsideways (dispersion)
Max. TDP180 W
Fan
Number of fans2
Fan size120 mm
Bearinghydrodynamic
Min. RPM500 rpm
Max. RPM2000 rpm
Speed controllerauto (PWM)
Max. air flow58.35 CFM
Static pressure2.41 mm H2O
MTBF40 K hours
Starting voltage6 V
replaceable
Noise level24 dB
Power source4-pin
Radiator
Heat pipes4
Heatpipe contactstraight
Heatsink materialaluminium / copper
Plate materialaluminium
SocketAMD AM2/AM3/FM1/FM2
AMD AM4
Intel 1150
Intel 1155/1156
Intel 1151 / 1151 v2
Intel 1200
Intel 1700 / 1851
General
Mount typebilateral (backplate)
Dimensions124x99x160 mm
Height160 mm
Added to E-Catalogoctober 2021
P/N
CL-P075-AL12BL-A

CL-P075-AL12RG-A

CL-P075-AL12TQ-A

The information in the model description is for reference purposes.
Always clarify the specifications and configuration of the product with the online store manager before purchasing.
