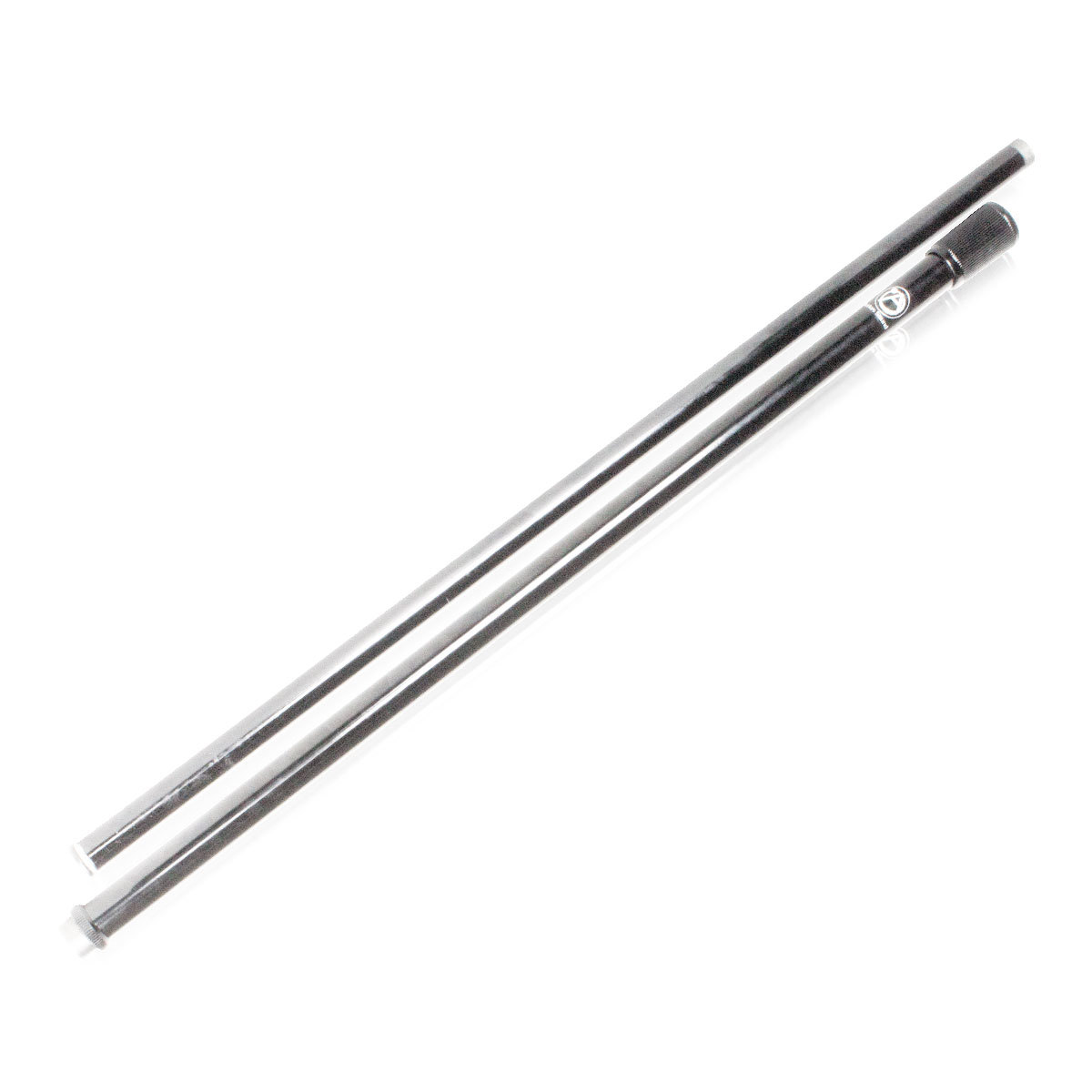

The 5/8" and 7/8" dia. tubing is fully adjustable with a vertical extension ranging from 35" to 63" and is designed for use with the MS-10C and MS-12C microphone stands. Tubing is manufactured of cold rolled steel and terminates in the industry standard 5/8" - 27 thread suitable for microphone clamps and accessories. Top and bottom lock-nut rings are included for versatile and secure positioning.Unit is finished in chrome.

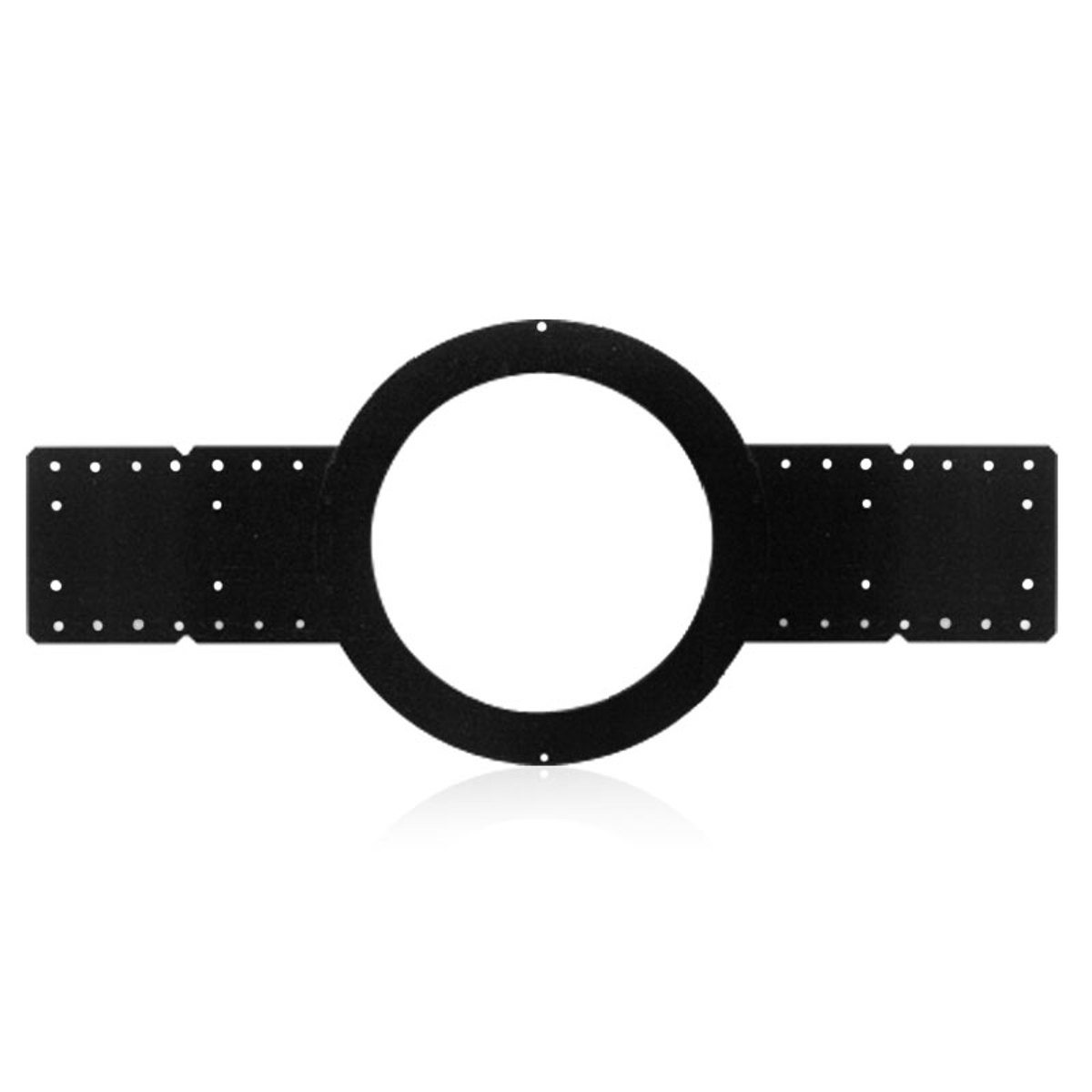

Use model FAP42-TR for new construction drywall ceiling applications. This unit provides a marked location for drywall installers to cut around, essentially reserving the desired location in the ceiling until final installation of speaker. Mounting holes are provided to accommodate 16" or 24" OC stud/joist mounting.

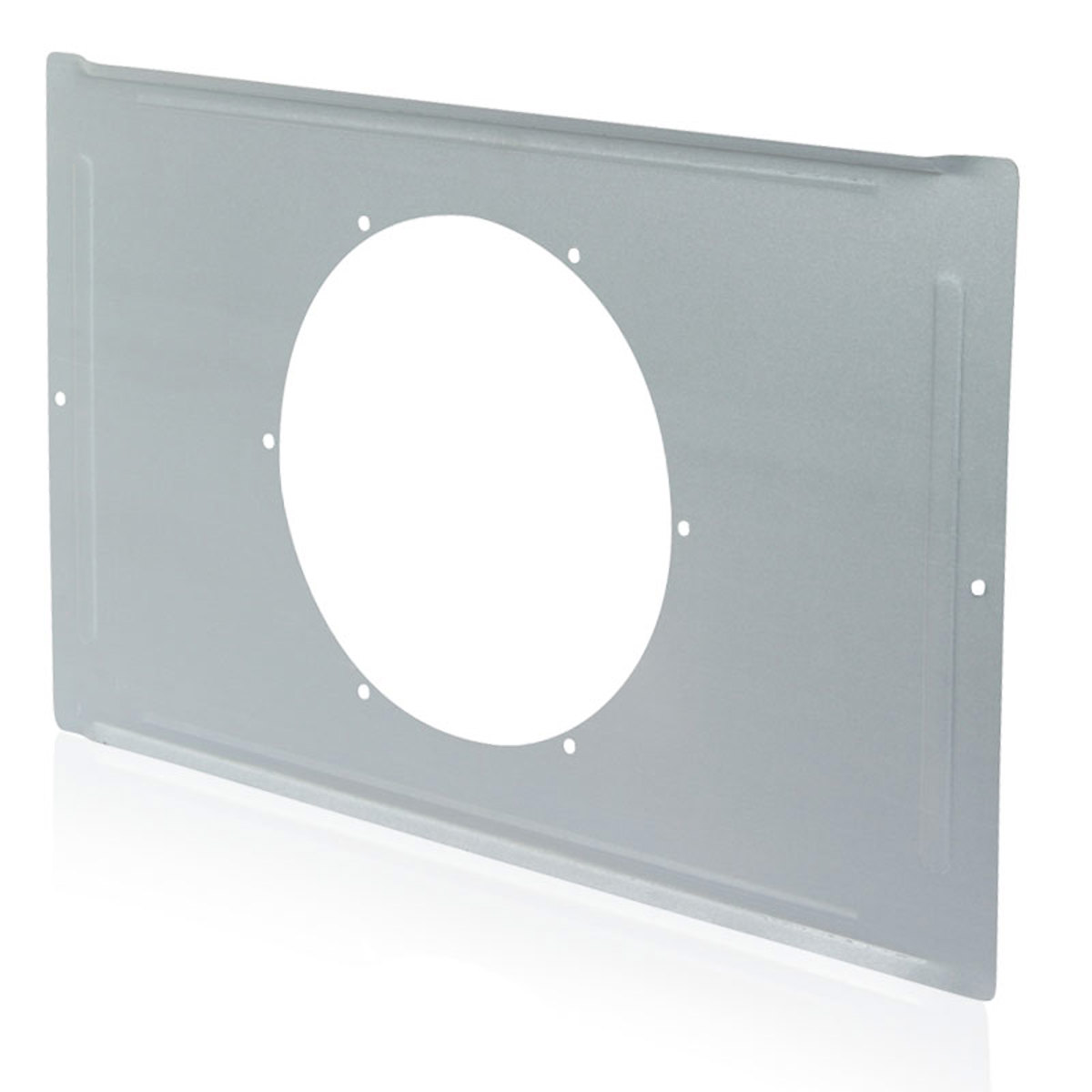

The Strategy Series tile bridge for 8" speakers is designed to prevent ceiling tile sag by distributing the speaker assembly weight to the ceiling's support members. Model FA81-8 accepts Model Series FA95-8 and FA97-8 enclosures or plaster ring model FAPR-8. Unit is constructed of 24-gauge electro-galvanized steel.

The DT12 from AtlasIED combines ease of installation with superb intelligibility for speech and music reproduction. The 1' x 2' footprint allows quick installation into 2' x 2' or 2' x 4' acoustic tile ceilings. The E.O. box (with cover) is smartly positioned on the side of the conical enclosure to facilitate rigid or flexible conduit. An external tap selector switch (located on the side of the enclosure) allows for easy system tuning by providing quick installer access to the 70.7V tap settings ranging from .25 to 4 watts.

Ideal for contractors with limited storage facilities, this conically shaped enclosure nests to achieve reduced inventory space requirements and transportation costs.Furnished with four combination conduit knockouts 1/2" - 3/4" (13-19mm), four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy.The CS95-8 enclosure is a perfect for use with AtlasIED model SD72W,SD72WV or high performance 8" 8-watt coaxial model GD87W speaker/ transformer/baffle packages.Note: Enclosure is not designed to mount other speaker packages with pre-mounted high performance transformers (HT-167, HT-327).

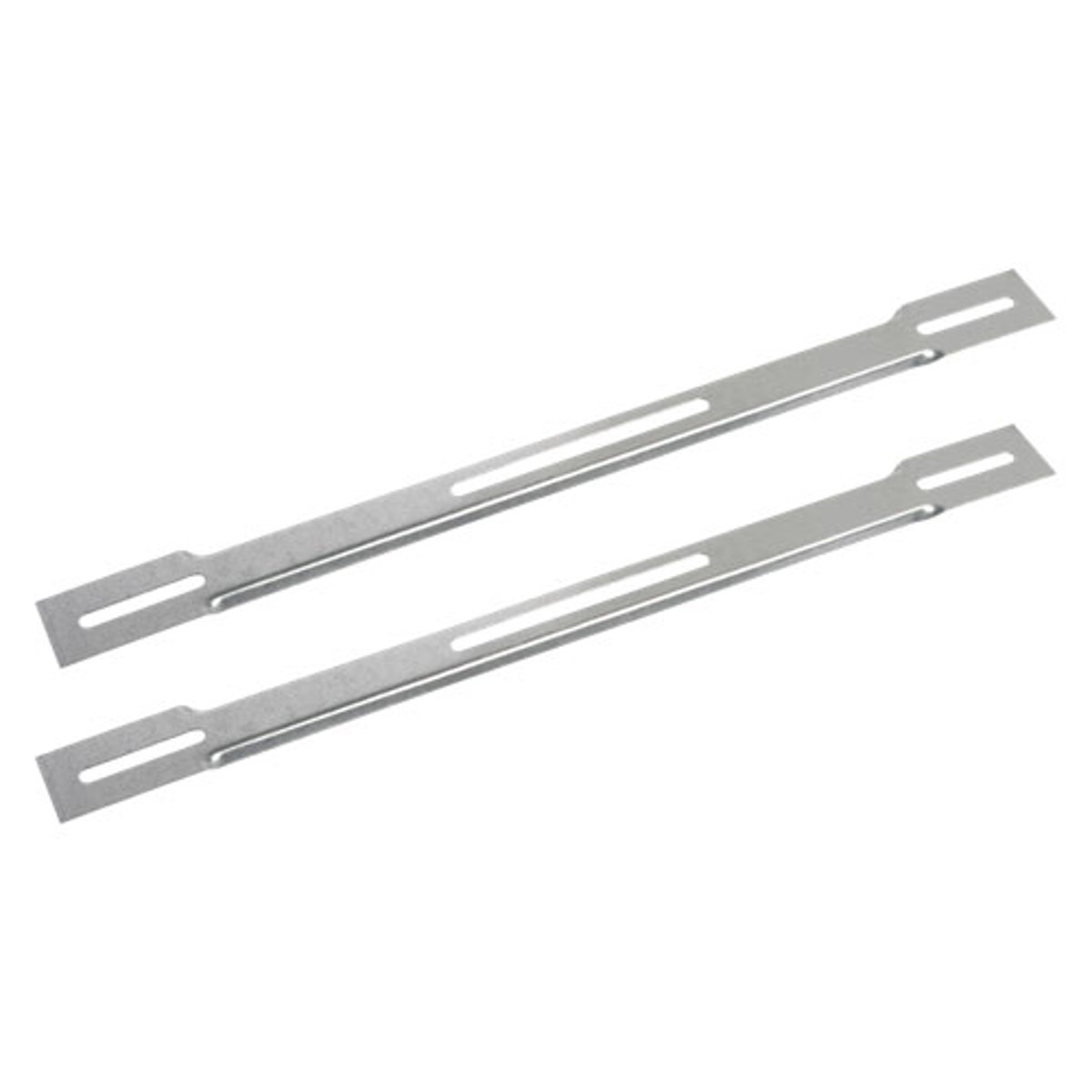

Experience the robust and versatile functionality of the 186-24 Channel Supports with Adjustable Slot and Flat Nut, designed to provide efficient and secure installation of protective enclosures and mounting rings. This sturdy mounting bar is equipped with an adjustable slot and a sliding flat nut, offering a broad spectrum of positioning options for your enclosures or mounting rings. The 186-24 Channel Supports are an ideal match for AtlasIED 75 and 76 Series mounting rings, as well as the 95 and 96 Series enclosures, making them a perfect choice for both 16" (406mm) and 24" (610mm) stud construction. Crafted from galvanized CRS, these supports promise durability and longevity, ensuring

186-16 support rails provide quick and efficient installation of protective enclosures and mounting rings. This mounting bar features an adjustable slot and sliding flat nut which allows for a wide range of enclosure or mounting ring positioning.186 Series is ideal for use with AtlasIED 75 and 76 Series mounting rings as well as 95 and 96 Series enclosures in 16" (406mm) and 24" (610mm) stud construction. Model 186-16 is constructed of galvanized CRS.

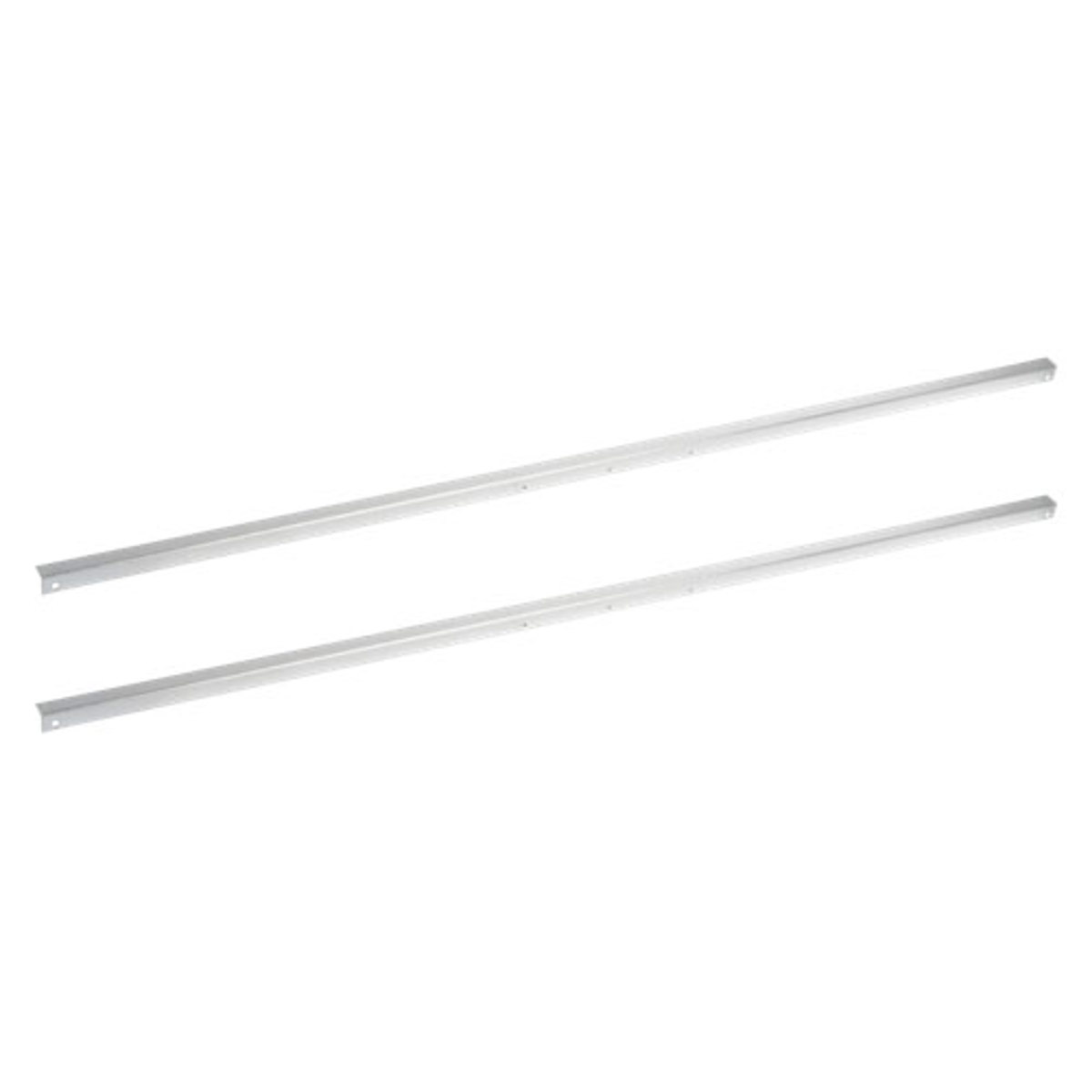

After careful design and engineering, the 180-4 Channel Support Mounting Rails offer a robust and economical solution for securely installing speaker assemblies in suspended ceilings. Crafted from galvanized cold-rolled steel (CRS), these mounting rails promise durability and reliability, ensuring your audio equipment remains safely in place over time.Measuring 47.75 inches in length, this pair of sturdy mounting rails is pre-drilled for convenience, facilitating a straightforward and efficient installation process within any protective enclosure or plaster frame. The high-quality materials used in the construction of the Model 180-4 not only provide strength but also contribute to the

Install 180-2 channel bars in suspended ceilings as an economical means of supporting speaker assemblies. Pre-drilled holes provide for easy installation in any type of protective enclosure or plaster frame. Model 180-2 is constructed of galvanized CRS.

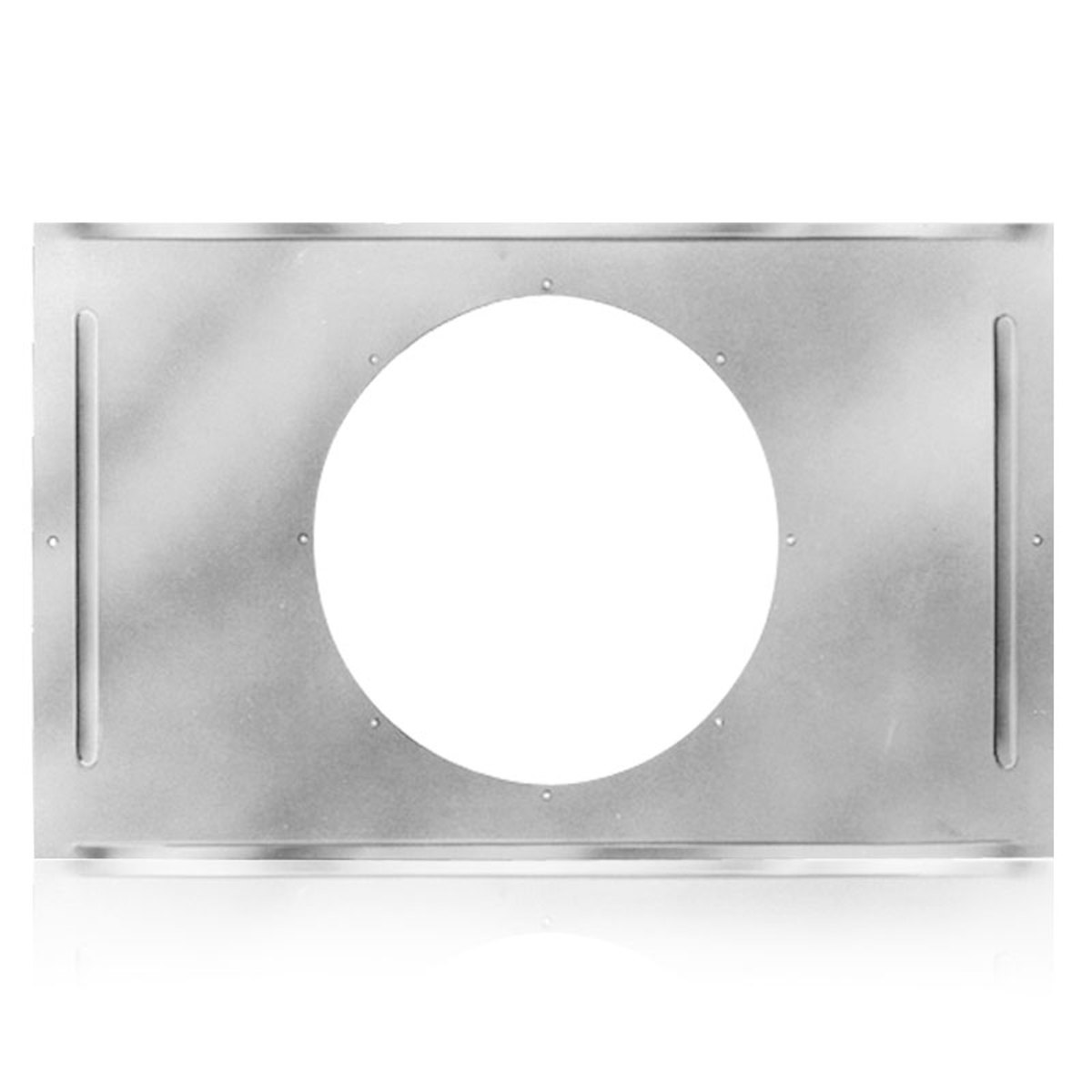

Model 81-8R handles 8" speakers and features a round cut-out that suits baffles mounting the industry standard AtlasIED 95 Series enclosures. Constructed of 22-gauge CRS with an electrogalvanized rust-resistant finish.

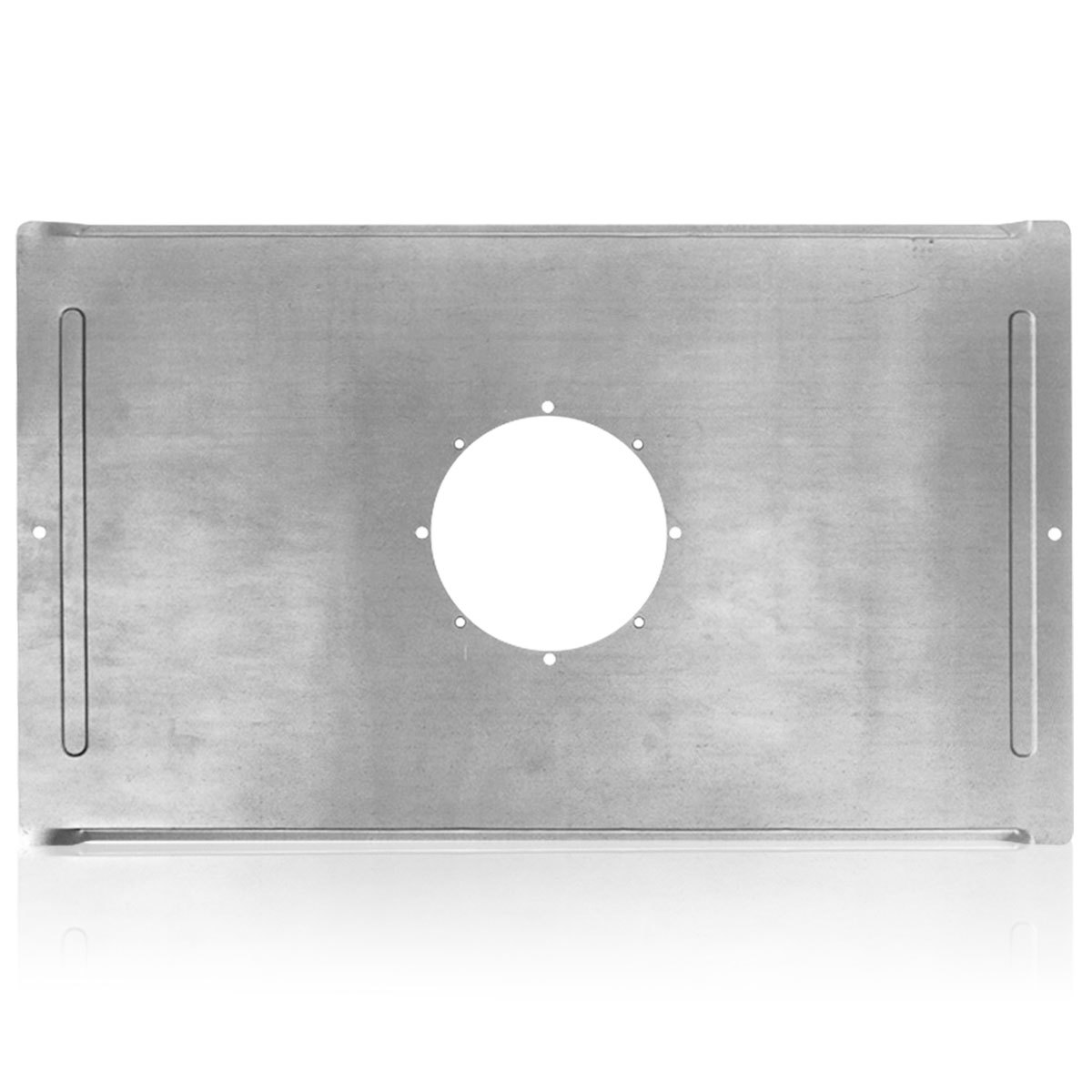

Model 81-4 features a round cut-out and accepts 4" speaker baffle Models 51-4 and 60-4.Construction is 24-gauge CRS with an electrogalvanized rust-resistant finish.

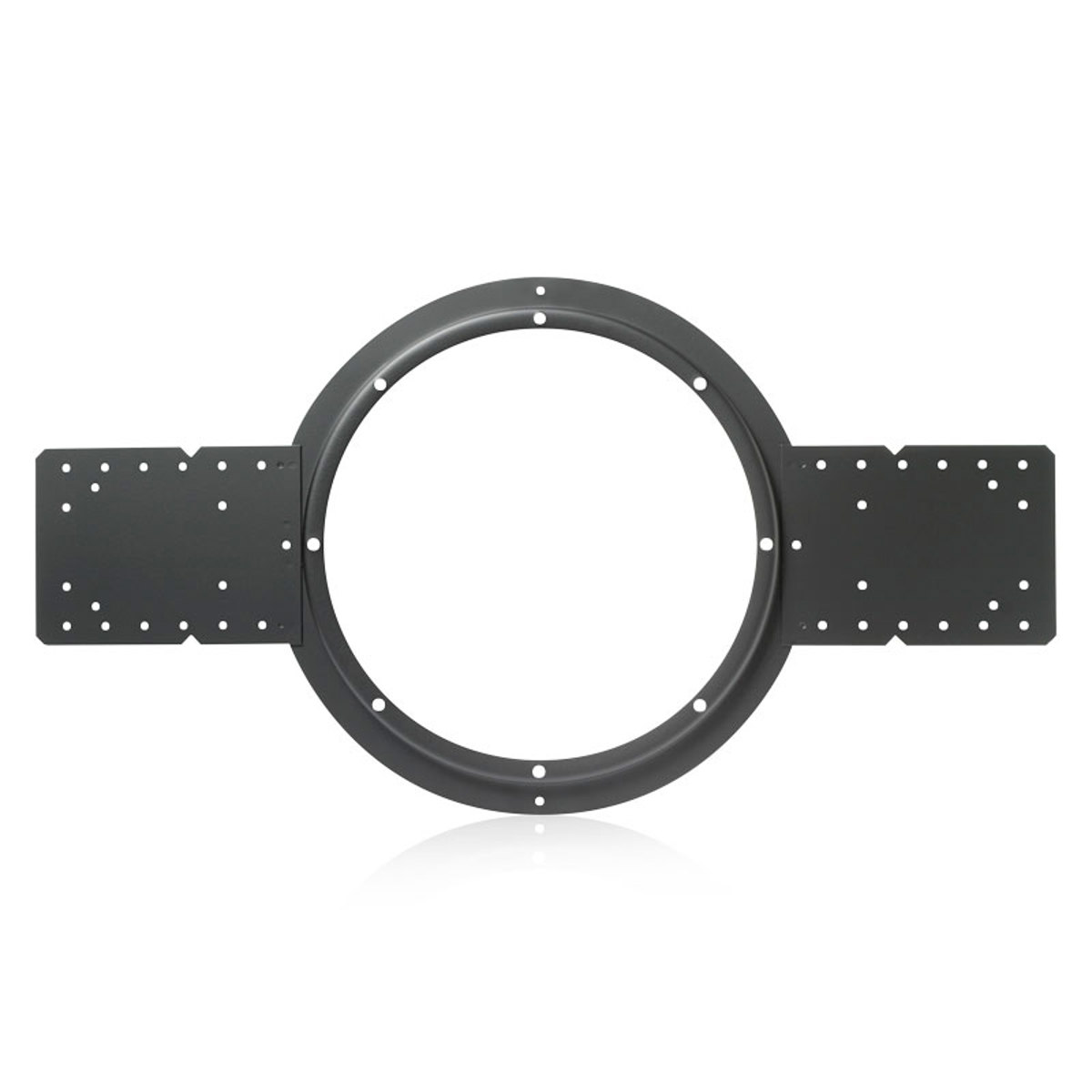

Use Model 76-8(E2) for installing screw mount baffles for 8" speakers as well as 95 series enclosures for new construction drywall applications. Unit includes mounting ears to facilitate 16" or 24" OC stud mounting.Unit is constructed of 20 ga. CRS finished in textured epoxy, and includes four 8-32 J-Nuts.

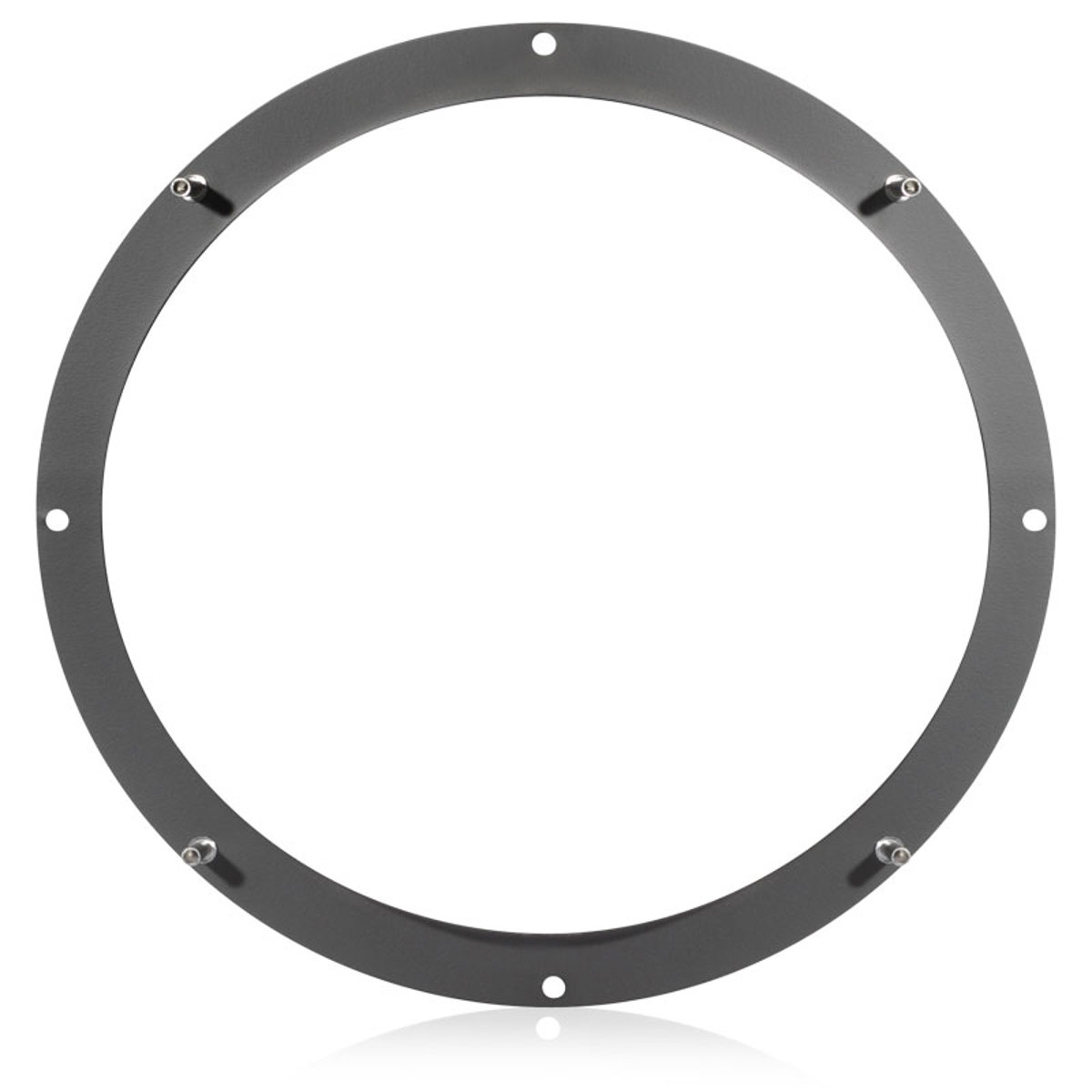

The 75-8 is ideal for installing screw mount baffles with 8" (203mm) speakers. Model T75-8 is of 20 ga. CRS, finished in textured black epoxy, and includes four staking rivets.
