Parts for Drones & RC models Sensor for

Specification Brand SpeedyBeeModel BLS 60ACon Current 60A 4Burst Current 80A 10 Sec Firmware BLHeli S J H 50PC Configuratior Download Link https esc configurator com TVS Protective diode YESExternal Capacitor 1000uF Low ESR Capacitor In the package ESC Protocol DSHOT300 600Power Input 3 6S LiPoPower Output VBATCurrent Sensor Support Scale 400 0ffset 0 ESC Telemetry Not supportedMounting Hole 30 5 x 30 5mm 4mm hole diameter Dimension 45 6 L 44 W 8mm H Weight 23 5gFeatures Real 60A Output Copper Thickness 3 Ounces 1000uF Huge Filtering Capacitor CNC Heatsink for Cooler ESCPackage Included 1x SpeedyBee BLS 60A 4 in 1 ESC 1x 35V 1000uF Low ESR Capacitor 5x M3 silicone …

Specification Brand Name HAKRCModel 8B35AItem Name 35A BLheli S BB2 2 6S 4in1 Brushless ESCCon Current 35ABurst Current 10s 40ALBEC NOSBEC NOInput Voltage 2 6S LipoProgramming YESFirmware BL16 7Net Weight 6 1gSize PCB 31x30x6mmHole size 20x20mmFeatures EMF8BB21F16G MCU 48Mhz Runs Supports 2 6S Lipo input PWM input Damped Light Built in Current sensor No External capacitors needed Dshot600 ready Default Support PWM ONESHOT42 125 MULTISHOT DSHOT150 300Pacakge Included 1x HAKRC 8B35A 35A 4in1 ESC1x Silicone Cable4x Anti vibration Ball

Specifications Brand HAKRCModel F7220V2 MiniItem Name 20x20mm F7 Mini Flight Controller CPU STM32F722RET6IMU ICM42688 Dual GyroscopeOSD AT7456EBarometer IntegratedBlack Box 16MBEC 5V 3A 10V 2 5AUart 6LED Adjustable LED lightSensor Built in current sensorFirmware Version HAKRCF722V2Support Receiver Compatible Futaba Frsky Flysky TBS CRSF DSMX DSM2Size 30 30mm with 20mm 20mm mounting holes Product Weight 8 5gPackage Size 64 64 35mmPackage Weight 38 5gFeatures High Quality PCB This Drone Flight Controller is designed with a high end 6 layer 1oZ thick copper skin PCB that offers robust anti interference capacity ensuring reliable performance Precision Control With dual …

Holybro High Precision DroneCAN Airspeed Sensor for RC DronesDescription The Holybro DroneCAN Airspeed is an industrial grade differential pressure measurement module designed for precision airspeed measurement in various UAVs including planes VTOLs and other vehicles Equipped with the DLVR L10D Digital Pressure Sensor and running ArduPilot AP Periph Firmware this module ensures accurate and reliable airspeed data across different flight conditions Features 1 Wide Pressure Range Supports up to 2500 Pa and 226 8 km h 141 mph airspeed measurement 2 High Precision DLVR Sensor Based on ALLSENSORS® DLVR with CoBeam technology providing high precision and low temperature drift 3 High A…

JumperRC T20S ExpressLRS ELRS 2 4GHz 915MHz Hall RDC90 Sensor Gimbal Full Size EdgeTX Radio Transmitter for FPV RC Racer Drone Airplane Car BoatPlease NOTE Orders before August 7th were shipped with the Unupgraded Version And if you ordered after August 7th you will receive the Upgraded Version with the foldable antenna and upgraded gimbals as pictures shown while the price is a little bit higher Desccription Brand JumperRCModel T20SMCU STM32F407ZET6Screen size 1 3 OLED resolution 128 64 Voltage 6 8 4VRocker Stick Size StandardGimbal size Standard full size gimbalGimbal sensors RDC90 Hall Optional Built in RF ELRS 915MHz 2 4GHz Optional Transmission power max 1000mwAntenna …

Jumperrc T20 V2 ELRS 2 4GHz 915MHz Hall Sesor RDC90 Sensor Gimbal Full Size EdgeTX Radio Transmitter for FPV RC Racer Drone Airplane Helicopter Car BoatDescription Brand JumperModel T20 V2MCU STM32F407ZGT6External module interface Reserved 1 25mm 5P Screen 1 3 OLED 128 64 External module power supply XT30 2S2A output SD card Chip based internal officially recommended by EdgeTX Gimbal size Standard full size gimbalVoltage 6 8 4VGimbal sensors RDC90 Hall Optional Battery 2pcs 21700Power Gutput Maximum 1WWeight 443g battery not included Features Compact Radio with adjustable full size gimbals VS M Hall Sensor RDC90 Sensor Gimbals Brand new design faceplate External cooling …

JumperRC T Lite V2 2 4GHz 16CH Hall Sensor Gimbals 150mW Built in ELRS JP4IN1 Multi protocol EdgeTX Remote Controller RC Radio Transmitter for RC Drone AirplaneNote Some ofthe T PRO has changed into onboard flash memory same as T20 suggested by edgeTX On board and SD Card slot version will be shipped randomly Specification Brand JumperRCModel T Lite V2 Remote ControllerVersion Built in ELRS JP4IN1 Optional Size 166 106 56mmWeight 203gVoltage DC3 5 4 2VBattery 1x18650 Battery not included Channel 16chSD card on board built in recommend by EdgeTX RF Output Power 25mW 50mW 100mW 150mWPacket Refresh Rate 25Hz 50Hz 100Hz 250Hz 500Hz 1000HzRF Output Power 0dBm 22dBmFrequency …

JumperRC T Pro S 2 4GHz 16CH Remote Controller Hall Sensor Gimbals ELRS JP4IN1 Multi protocol OLED Screen OpenTX EdgeTX Mode2 Radio Transmitter for RC DroneNote T PRO has changed into onboard flash memory same as T20 suggested by edgeTX there is no more SD card or card slot Description Brand JumperRCModel T Pro SName Multi Protocol Remote ControlInternal RF ELRS 1W 30dBm JP4in1 mouti protocol optionalWorking Voltage DC 6V 8 4VCompatible firmware OpenTX EdgeTXScreen 1 3 OLED 128 64 resolutionGimbals Hall sensor gimbalsSimulator 3 5mm standard ppm output or usb cBattery 2x18650 not included Onboard flash memorySize 160 128 68Weight 240g without battery Features OLED …

Jumperrc T Pro V2 ELRS 915MHz 16CH 1000mW Remote Controller Hall Sensor Gimbals Multi protocol OLED Screen OpenTX EdgeTX Mode2 Radio Transmitter for RC DroneNote T PRO has changed into onboard flash memory same as T20 suggested by edgeTX there is no more SD card or card slot Description Brand Jumperrc Model T Pro V2 ELRS Frequency 915MHzInternal RF 1000mW 915MHz built in TX ModuleData refresh rate 25Hz 50Hz100Hz 200Hz 250HzRF output power 50mW 100mW 250mW500mW 1000mWWorking Voltage DC 6V 8 4VCompatible firmware OpenTX EdgeTXScreen 1 3 OLED 128 64 resolutionGimbals Hall sensor gimbalsSimulator 3 5mm standard ppm output or usb cBattery 2x18650 not included External micro SD …

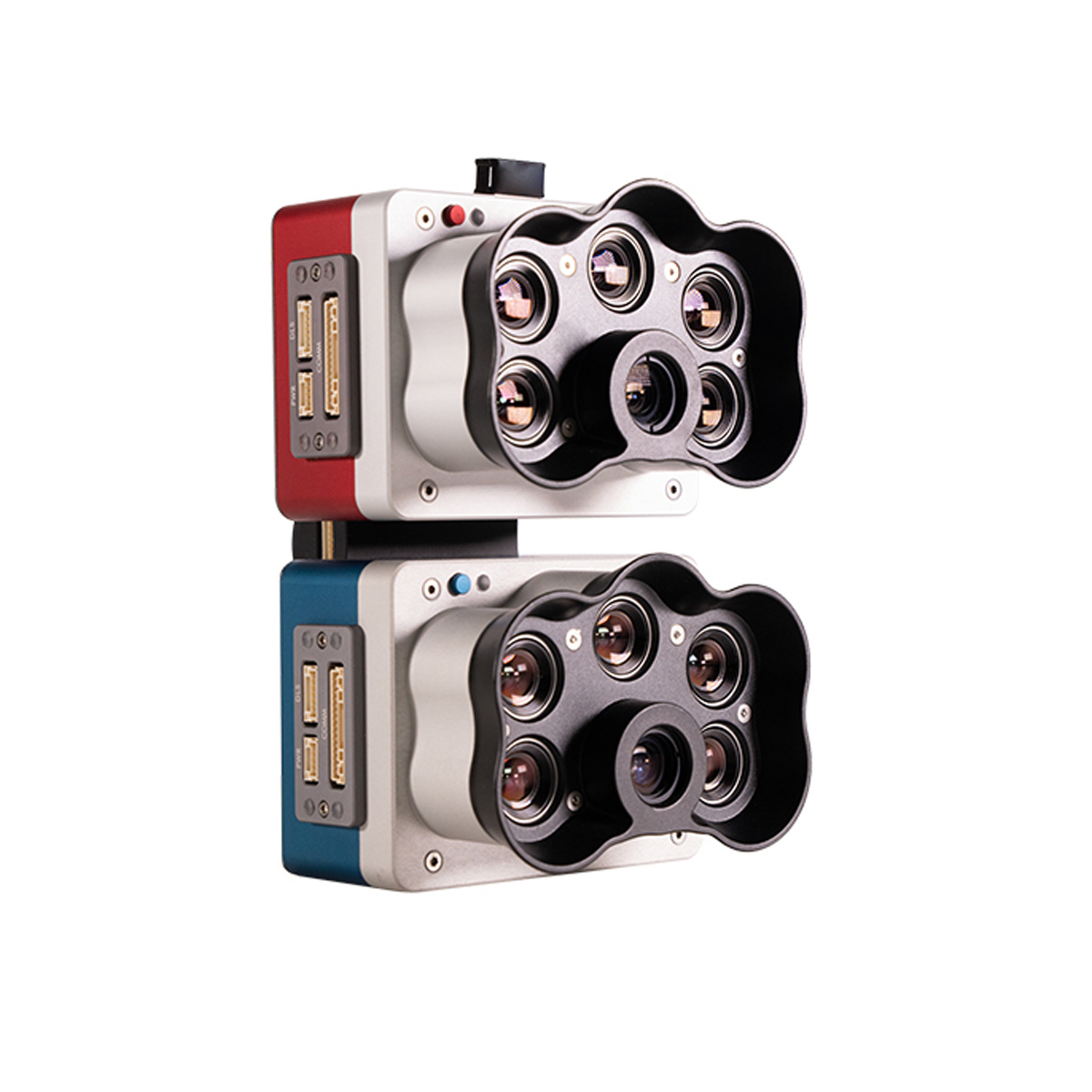

The New Standard for Data Quality and RepeatabilityRedEdge-P uses purpose-built optics and industrial image sensors coupled with narrowband, scientific-grade filters. In addition, it undergoes a rigorous factory calibration process, creating a high-quality, calibrated, rugged tool for high-quality outputs.The Ultimate Solution for High-Res RGB and Multispectral DataIncreased StorageNew professional removable storage standard in CFexpress, enabling over two captures per second and the immediate turnaround time between flights by simply swapping cards.Synchronized Capture of High-Res RGB and MultispectralSimultaneous capture of up to six bands, enabling multiple high-resolution outputs such as

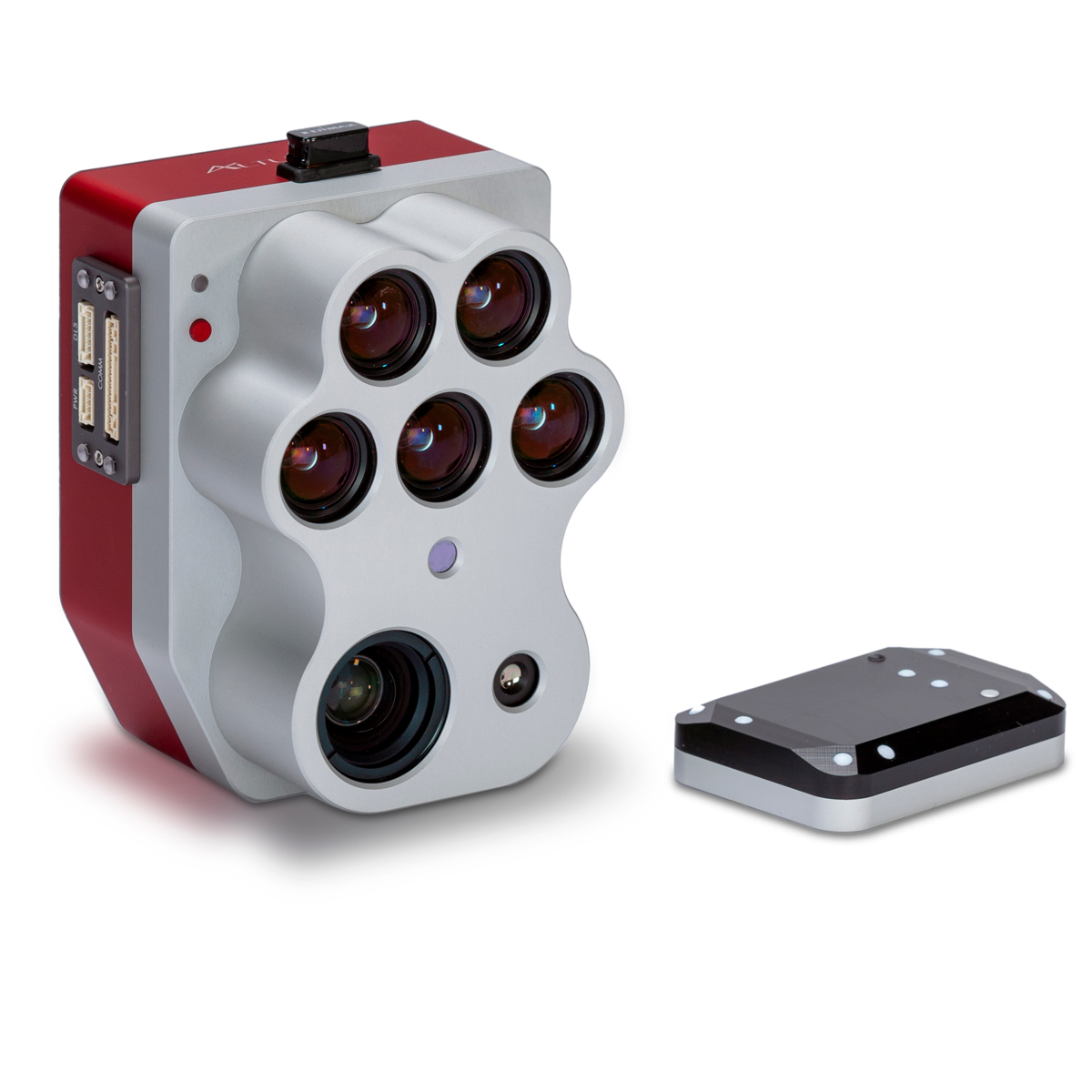

Take your remote sensing and agricultural research to the next level with the Altum-PT Multispectral Sensor Kit. This high-quality, innovative solution integrates three advanced imaging technologies into one compact device: an ultra-high-resolution panchromatic imager, a newly improved thermal imager, and five discrete spectral bands. This combination allows for detailed plant-level applications, such as early-stage stand counting, with a video resolution of 5.1 mp for clear, detailed footage.The Altum-PT is designed for professional use, featuring a global shutter for distortion-free results, open APIs, and a new storage device that allows for up to 2 captures per second. This durable

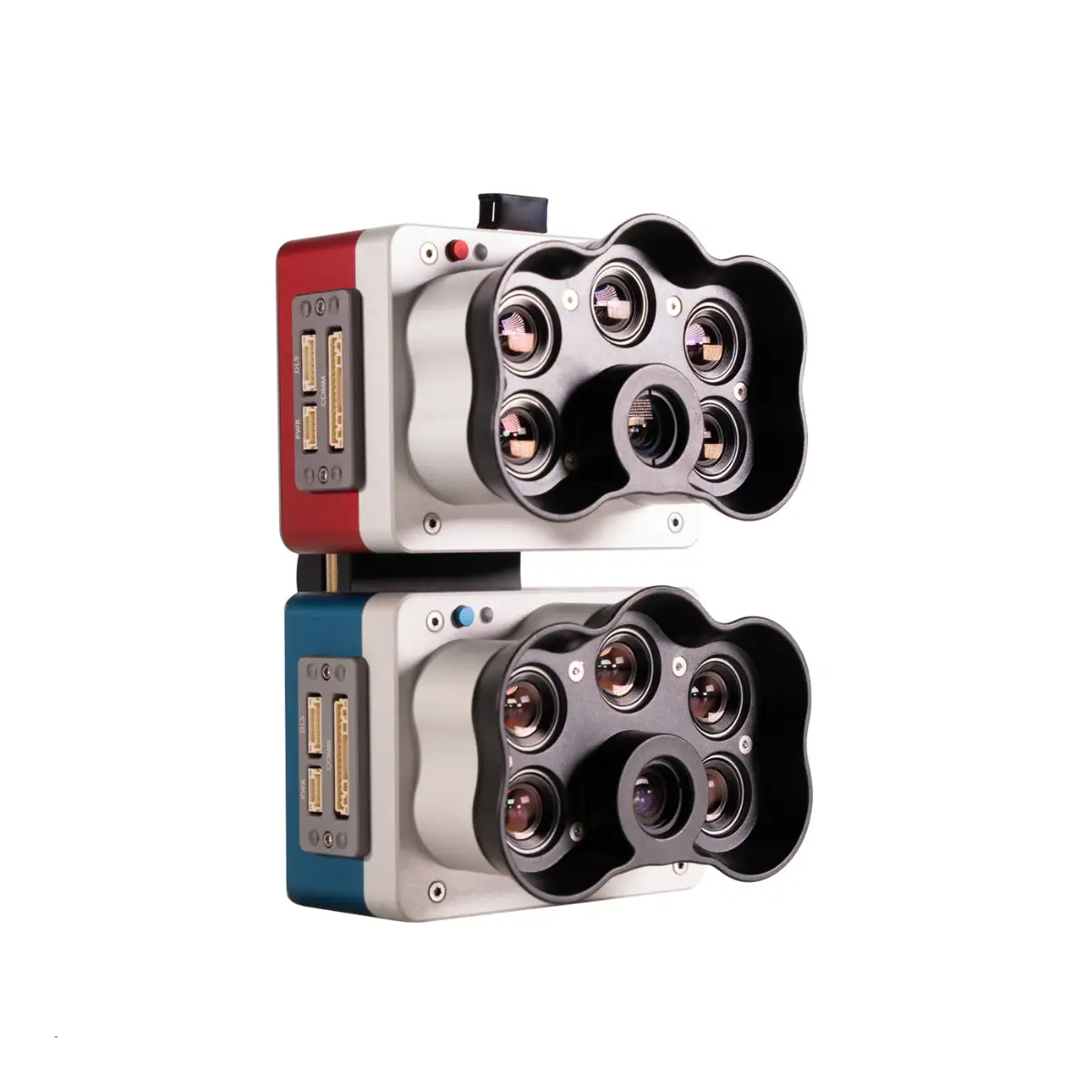

The New Standard for Data Quality and RepeatabilityRedEdge-P uses purpose-built optics and industrial image sensors coupled with narrowband, scientific-grade filters. In addition, it undergoes a rigorous factory calibration process, creating a high-quality, calibrated, rugged tool for high-quality outputs.The Ultimate Solution for High-Res RGB and Multispectral DataIncreased StorageNew professional removable storage standard in CFexpress, enabling over two captures per second and the immediate turnaround time between flights by simply swapping cards.Synchronized Capture of High-Res RGB and MultispectralSimultaneous capture of up to six bands, enabling multiple high-resolution outputs such as

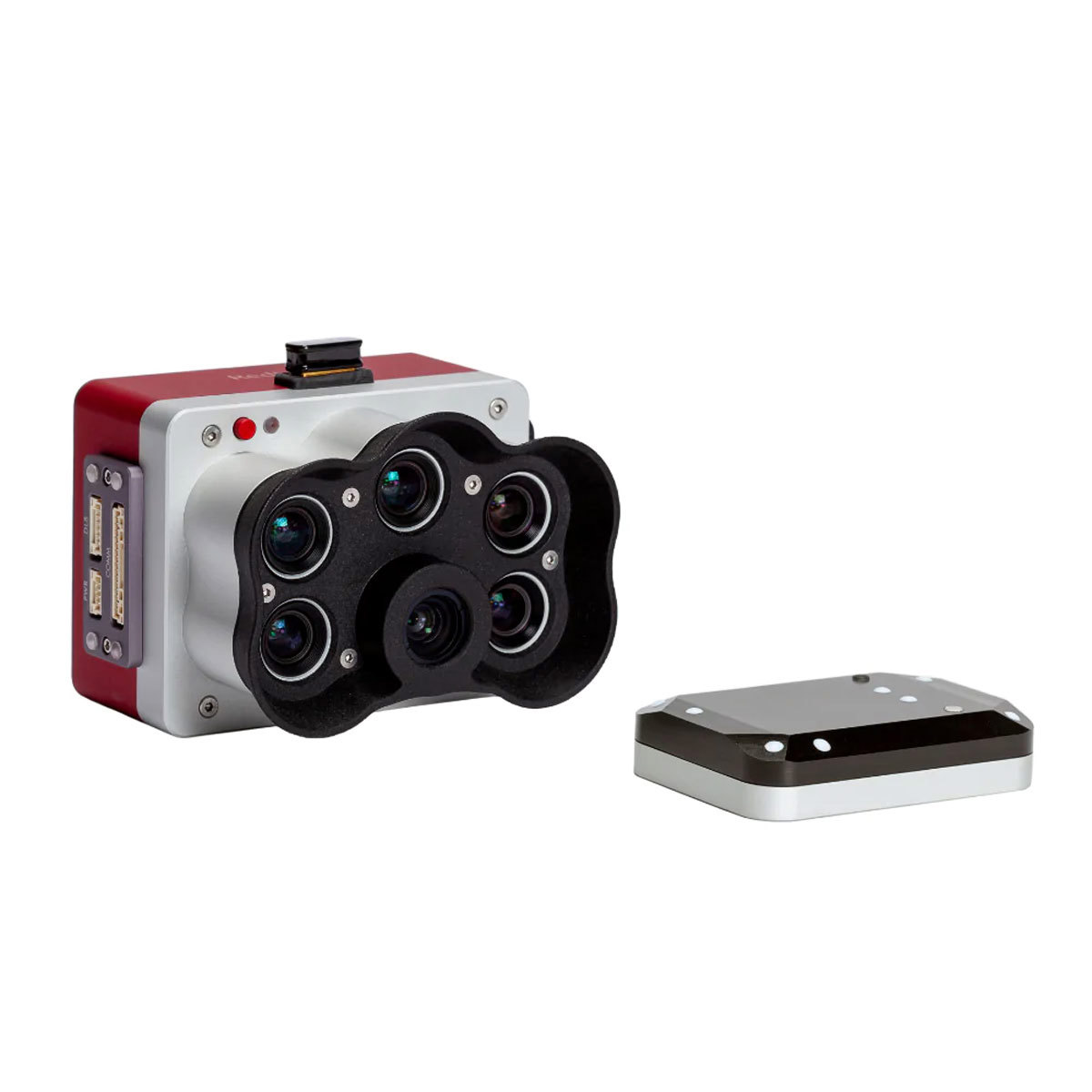

REDEDGE-MX The RedEdge-MX is a rugged, built-to-last, professional multispectral sensor, now with a metallic enclosure for extreme durability. It captures the spectral bands required for basic crop health indexes and additional bands needed for advanced analyticsDLS 2 RedEdge-MX comes with DLS 2, our next generation light sensor. With cutting-edge technology for irradiance and sun angle measurements, it provides more accurate, reliable data, substantially improves radiometric accuracy, and greatly reduces post-processing time.PhenotypingManually measuring plant characteristics is time-consuming. RedEdge-MX captures more data in less time, allowing researchers to understand how different

Are you seeking a cutting-edge solution for advanced remote sensing and agricultural research? Look no further than the Altum-PT Multispectral Sensor Kit with DJI Skyport for Matrice 300. This innovative sensor kit is a 3-in-1 solution, integrating an ultra-high-resolution panchromatic imager, a newly improved thermal imager, and five discrete spectral bands. This combination allows for detailed plant-level applications, including early-stage stand counting.The Altum-PT is designed with a global shutter to ensure distortion-free results and open APIs for easy integration. It also boasts a new storage device that allows for up to 2 captures per second. This high-quality sensor kit is

The New Standard for Data Quality and RepeatabilityRedEdge-P uses purpose-built optics and industrial image sensors coupled with narrowband, scientific-grade filters. In addition, it undergoes a rigorous factory calibration process, creating a high-quality, calibrated, rugged tool for high-quality outputs.The Ultimate Solution for High-Res RGB and Multispectral DataIncreased StorageNew professional removable storage standard in CFexpress, enabling over two captures per second and the immediate turnaround time between flights by simply swapping cards.Synchronized Capture of High-Res RGB and MultispectralSimultaneous capture of up to six bands, enabling multiple high-resolution outputs such as

Introduction The Holybro Digital Airspeed Sensor has a very low offset a high resolution and best of all does not suffer from the noise induced by long cables and offsets in the ratio metric output on other airspeed sensors Supported on all Holybro Autopilot Flight Controller Boards with ArdupilotPX4 The MS5525DSO is a new generation of Digital Small Outline pressure sensors from MEAS with SPI and I2C bus interface designed for high volume OEM users The sensor module includes a pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients It provides a 24 bit digital pressure and temperature value and different operation modes that allow the user to…

Notice Only include ESC Not include motor flight controller BEC showed in diagram picture ESC Specifications Input voltage 2 6S LipoContinuous current 50APeak current 55ACurrent ratio 300Quantity 1PCSize 14x33mmProduct Net weight 5gESC firmware HAKRC G071 2023 Multi 32 9 HexProtocol support PWM Oneshot125 Oneshot42 Multishot Dshot150 Dshot300 Dshot600Features 1 PCB adopts high end 8 layer 3oZ thickened copper skin and double pad design which has stronger over current capability and good heat dissipation 2 MOS adopts imported 40V high current resistance MOS which has long life and strong load capacity 3 High density and compact with built in galvanometer and programmable …
