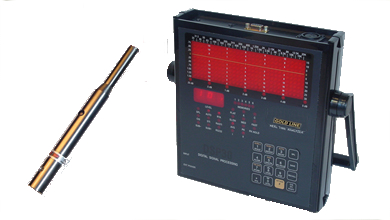

Goldine's DSP3010 Real Time Analyzer with TEF04 Mic is a full-function, standalone audio spectrum analyzer that measures sound level and speech intelligibility index in CIS or STI formats when used with OPTion STICis™ software.This portable, 30-band digital RTA has a microphone measurement range of 27 to 125 dB, captures the full 85 dB window with scales from ¼ dB to 5 dB, and comes with Goldline's TEF04: an omnidirectional, 1/2-inch diameter, electret condenser microphone made for general-purpose acoustical measurements and Pro Audio applications where a free field omni pattern is specified. The unit has 60 active memories, along with a Subtract mode to subtract one memory from

Goldline's OPT-106 1/6th octave mode option allows the user to shift the DSP analyzer to a higher frequency resolution. Higher resolution is used to set crossovers or analyze frequency or standing waves. The higher resolution also provides the information necessary to use parametric equalizers and other types of notch filters.For use with:DSP30, DSP30RM, DSPCIW analyzers.Specifications:Frequency Ranges: DSP 1/3rd Octave Standard - 20Hz to 20kHz1/6thOctave Low - 22Hz to 630Hz1/6th Octave High - 708Hz to 20kHzOption Kit Contains: Upgraded EPROM device.NOTE: This option requires that OPT CVOW be installed. Goldline OPT-106 Opt 106 1/6th Octave Mode Software Option (for DSP30, DSP30RM, DSPCIW).

Goldline's OPT-112 1/12th octave mode option allows the user to shift the DSP analyzer to a higher frequency resolution. Higher resolution is used to set crossovers or analyze frequency or standing waves. The higher resolution also provides the information necessary to use parametric equalizers and other types of notch filters.For use with:DSP30, DSP30RM, DSPCIW analyzers.Specifications:Frequency Ranges: DSP 1/3rd Octave Standard - 20Hz to 20kHzOption Kit contains upgraded EPROM device.NOTE: This option requires that OPT CVOW be installed. Goldline OPT-112 Opt 112 1/12th Octave Mode Software Option (for DSP30, DSP30RM, DSPCIW).

Goldline's Speech Intelligibility option provides the STI test signals and software needed to conduct measurements in accordance with IEC standard 60849, ANSI S3.05, ISO 9921. For use with DSP30/DSP2/DSPCI analyzers. Option kit contains test CD and required software. Goldline OPT-STICIS Optional Measure Speech Intelligibility Software (with Test CD, for DSP30, DSP2, DSPCI).

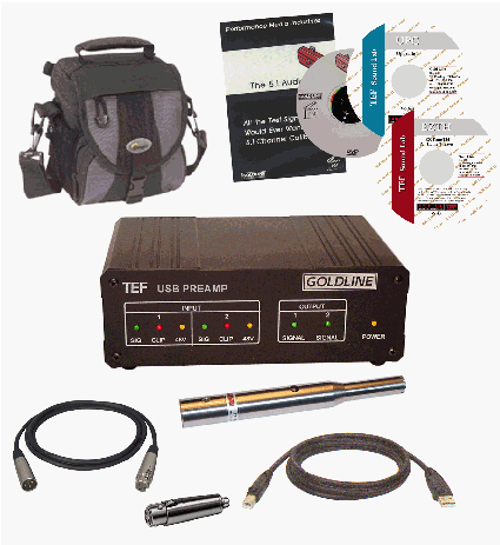

Goldline's TEF25 USB Preamp combines the portability of a small USB Preamp with the accuracy of their traditional TEF20 analyzer. The TEF25 comes with the SoundLab SLUPG1 Software Upgrade that lets you run all previously owned TEF20 programs: TDS, MLS, RTA, PEQ, PLR and SLX. Run the older Versions or step up to new Version 6 modules. Available in Version 6 is the new Post Processing Module, SLPPS60. Also included is the TEF Training Class 3-DVD Set that contains the topics from the TEF Level I class.Goldline's TEF04 is a omni directional, 1/2" diameter, electret condenser microphone suitable for general purpose acoustical measurements and professional audio applications where a free-field

Goldline's EZTune combines features from several existing TEF programs, and then adds a layer of automation to speed up typical tasks. For those who wish to change standard settings, you are free to do so. Or, if you need to send staff into the field, let them use the default settings to quickly collect or evaluate a room or sound system.Features:Set Reference Levels. A large SPL display shows the C weighted SPL. A colored background starts out blue, changes to Green as you approach the home theater reference level of 75dB & then turns red if you go above 76dB SPL.Measure Real Time Analysis. A powerful RTA module allows you to choose resolutions from 1 octave to 1/24th of an octave. Select
