PCI Controller Cards StorageTekPro

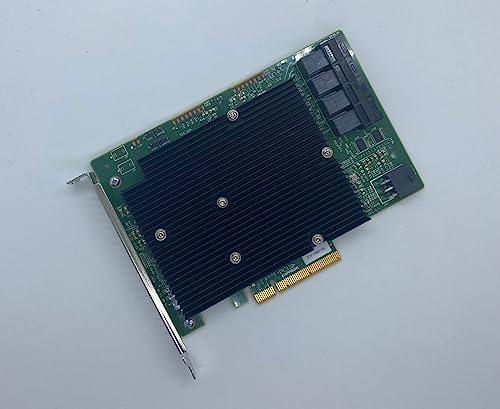

Listed for sale is an LSI 9300-16i HBA SAS controller card. It is fully updated to Avago / LSI 9300-16i IT (Initiator Target) mode firmware version P16. MPT BIOS and UEFI BIOS also flashed to the card.so that it is easier to access the controller's ROM without booting an OS. Original SAS address, Tracer number, Assembly number preserved. The card is based on a pair of LSI SAS3008 SAS controller chipset and support 12Gbps SAS-3 storage devices. It uses a PCI-E 3.0 connection with x8 lanes. The controller has 4 SFF-8643 connectors, each carrying 4x 12Gbps SAS lanes. You will need a compatible cable to connect these to your SAS or SATA drives. CAUTION#1: Please note this card is a high

[FIRMWARE] - Flashed to Avago / LSI 9300-8e IT (Initiator Target) firmware version P16 (specifically 16.00.12.00) [COMPATIBILITY] - Works for other ZFS setups like FreeNAS, unRAID, Proxmox VE, etc. [FEATURES] - 8-Ports External, 12Gbps SAS 3.0, PCI-Express, 2x SFF-8644 External connectors, IT-Mode [MOUNTING BRACKET] - Regular Height bracket installed. Extra Low Profile bracket included.

9361-8i 12Gb/s SAS RAID Controller with Regular/Low Profile bracket EXTRA FEATURE: Cachecade Pro 2.0 and Fastpath Advance Software included Two mini-SAS SFF8643 internal connectors (horizontal mount) SAS3108: 1.2 GHz PowerPC 476 dual-core 12 Gb/s ROC PCI Express 3.0 host interface 1 GB 1866 MHz DDR3 SDRAM Cache memory RAID levels 0, 1, 5, 6, 10, 50, and 60 Support for CacheVault flash cache protection (Purchase separately) 1-Year StorageTekPro Replacement Warranty
