LEVEL Zoeller 10-1883 Variable Control Switch 50' Narrow Angle Black and Parts Pump Switch

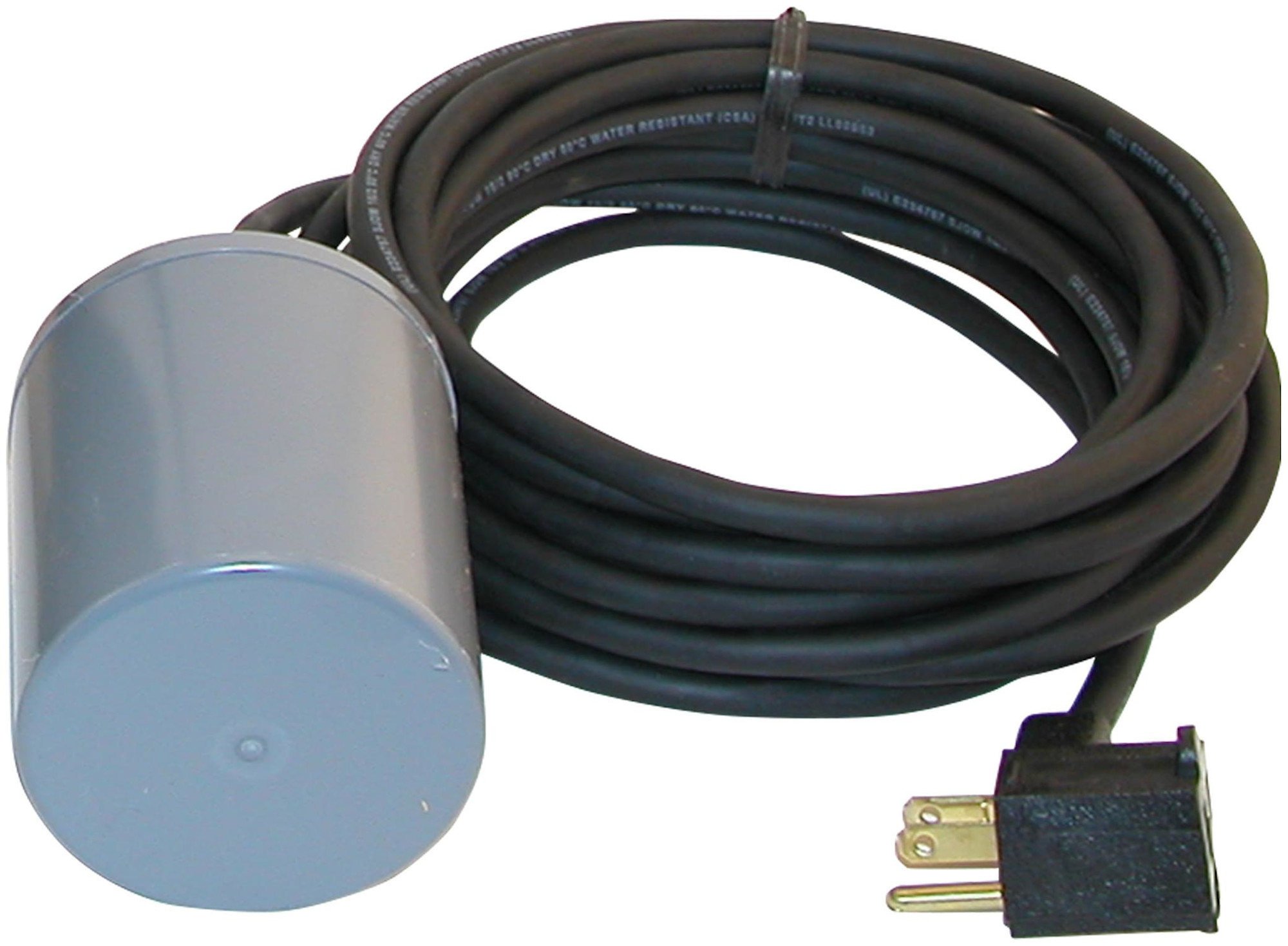

Zoeller 10-1883 Variable Level Control Switch 50' Narrow Angle Zoeller narrow angle level control float are used to monitor liquid level conditions and activate control panels or alarms. This switch comes with a 50' cord and weight. They are typically installed in dose tanks, sump pump basins, holding tanks, lift stations, and other non-potable water applications. The variable level control switch is normally open when hanging vertically above the liquid level. The switch should be mounted to the weight that is provided, giving the switch a pivot point. When the water level rises and the switch is raised a few degrees above the horizontal position, the switch closes, completing the circuit to the control panel or alarm. The float that encases the mechanical switch is constructed of durable PVC/polypropylene. Features:Float is constructed of impact-resistant and non-corrodible PVC/polypropylene encasing.18/2 Type SJOW CPE Cord-StandardApproximately 1/2" liquid level differential in switching actionNormally open when hanging vertically above liquid level. Switch closes when it reaches a few degrees above the horizontal position.Standard mechanical variable level control switches are rated for 115/230V, 5 amps. Pump Switches Black
