Lighting Effects Pixel

The PIXEL WASH 40IP is a lightweight, outdoor IP65 rated LED wash / effect par fixture featuring 4 in 1, 10-watt RGBW LED's, a PWM (pulse width modulation) of 44,000Hz for flicker free operation for broadcast, TV, and film applications, a beam angle of 32 Degree and a field angle of 60 Degree . This unit features two integrated 4pin power/data in and out whips with locking connectors.The PIXEL WASH 40IP can be combined together with PIXEL BAR 30IP, PIXEL BAR 60IP, PIXEL BAR 120IP, PIXEL TAPE 16IP and PIXEL TAPE 40IP, in any combination, to create a versatile pixel-mapped display. Optional power/data cables extensions are available in various lengths ranging from 2 to 50 feet (sold

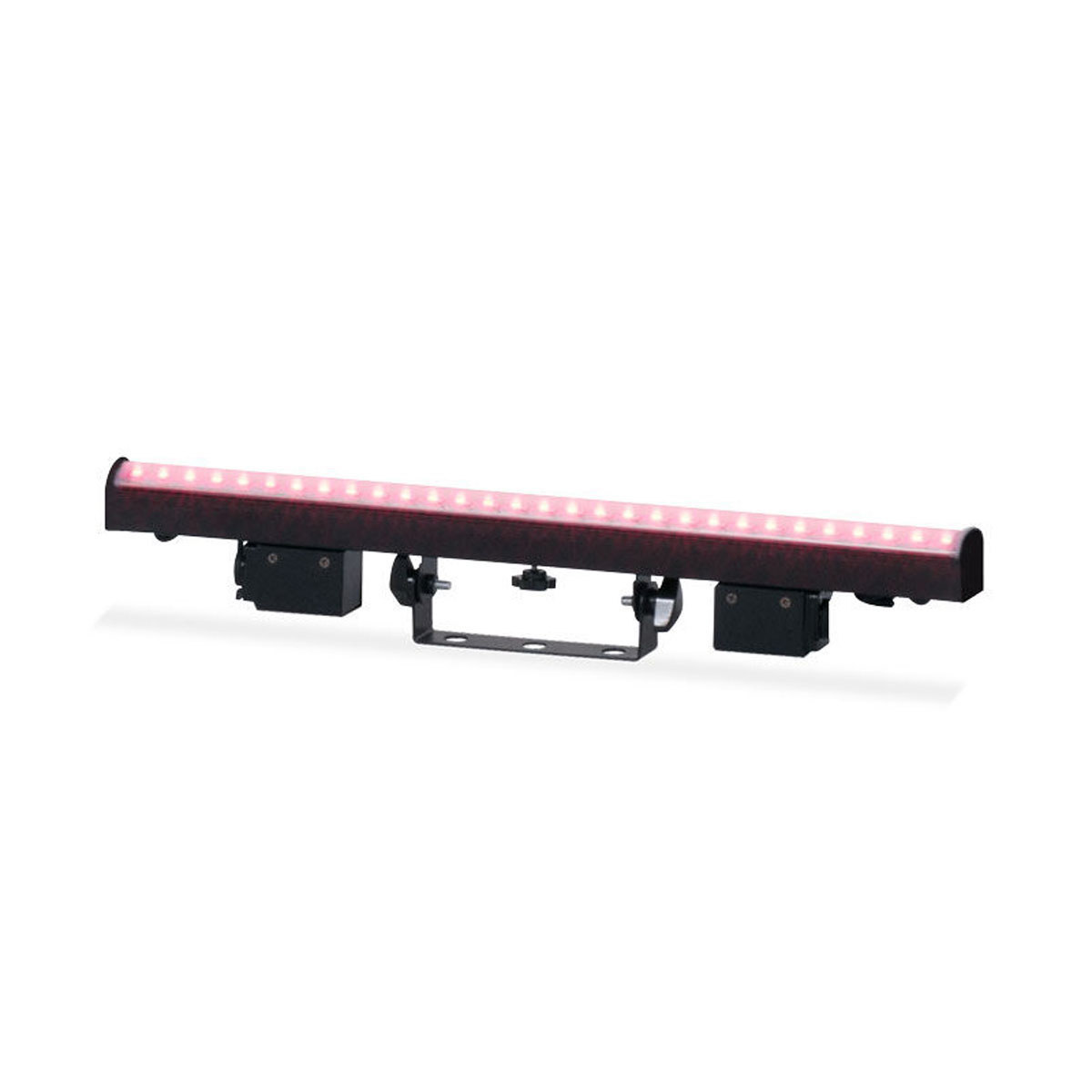

The PIXEL BAR 30IP is an outdoor IP65 rated LED pixel bar featuring (30) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 0.5 meter (1.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.Easy and versatile control options are handled by the PIXEL DRIVER 4000 V2 and PIXEL DRIVER 1000IP (sold separately) which provides simple on-board manual dimming and strobe

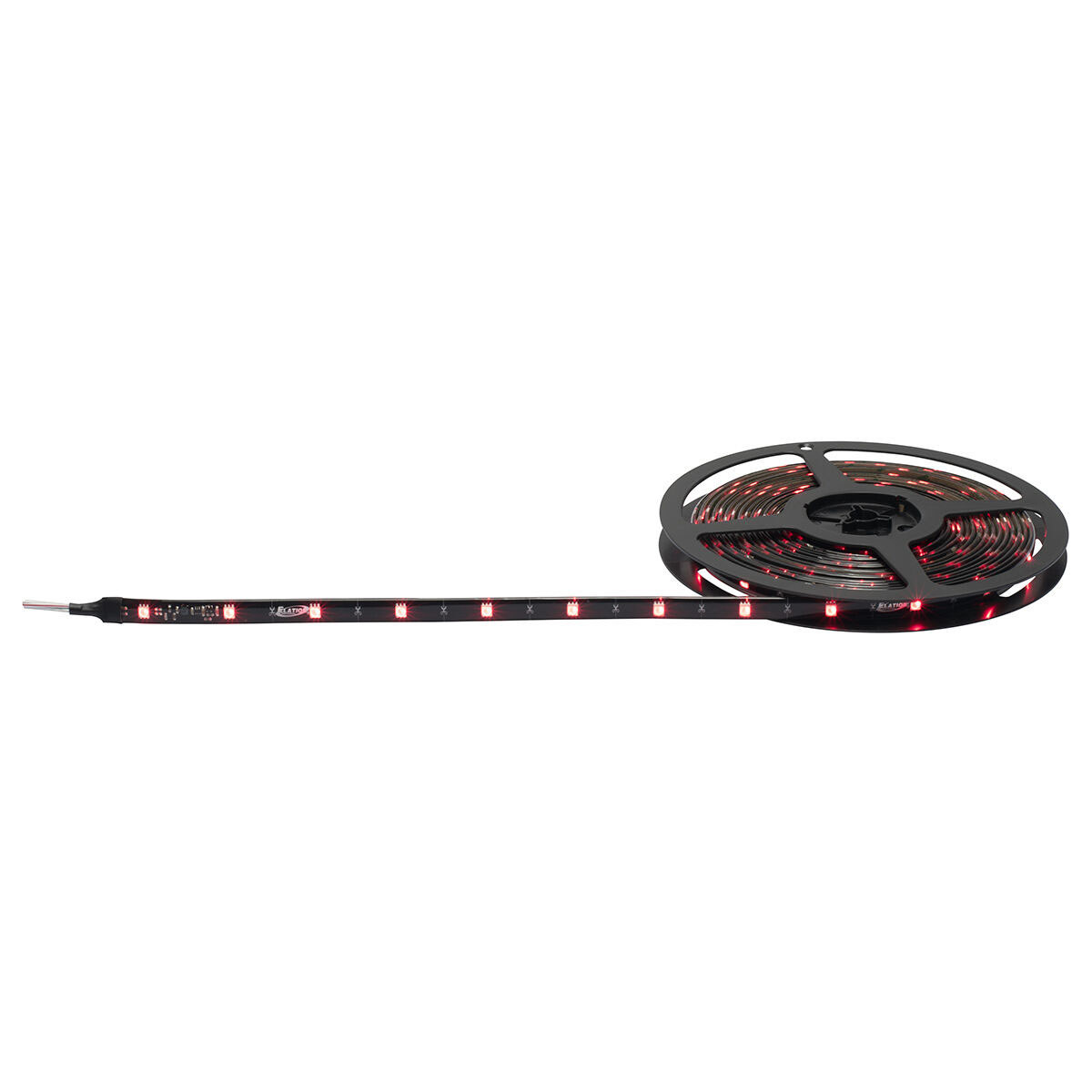

The PIXEL TAPE 16IP is an IP65, outdoor rated, 8.9 foot (2.7m) flexible LED pixel tape featuring (170) RGB SMD tri-color LED pixels (510 total DMX channels), producing over 1 billion color possibilities with a 120 Degree viewing angle and is surface coated with an IP65 rated conformal coating. PIXEL TAPE 16IP can be powered and controlled using our PIXEL DRIVER 170, PIXEL DRIVER 1000IP or PIXEL DRIVER 4000 V2 control drivers.

The PIXEL TAPE 40IP is an outdoor rated 22.3 foot (6.8m) flexible LED pixel tape featuring (170) RGB SMD tri-color LED pixels (510 total DMX channels) spaced on 1.6" (40mm) centers, producing over 1 billion color possibilities with a 120 Degree viewing angle and is surface coated with an IP65 conformal coating. PIXEL TAPE 40IP can be powered and controlled using our PIXEL DRIVER 170, PIXEL DRIVER 1000IP or PIXEL DRIVER 4000 V2 control drivers.

The PIXEL BAR 60IP is an outdoor IP65 rated LED pixel bar featuring (60) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (3.3 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.Easy and versatile control options are handled by the PIXEL DRIVER 4000 V2 and PIXEL DRIVER 1000IP (sold separately) which provides simple on-board manual dimming and strobe

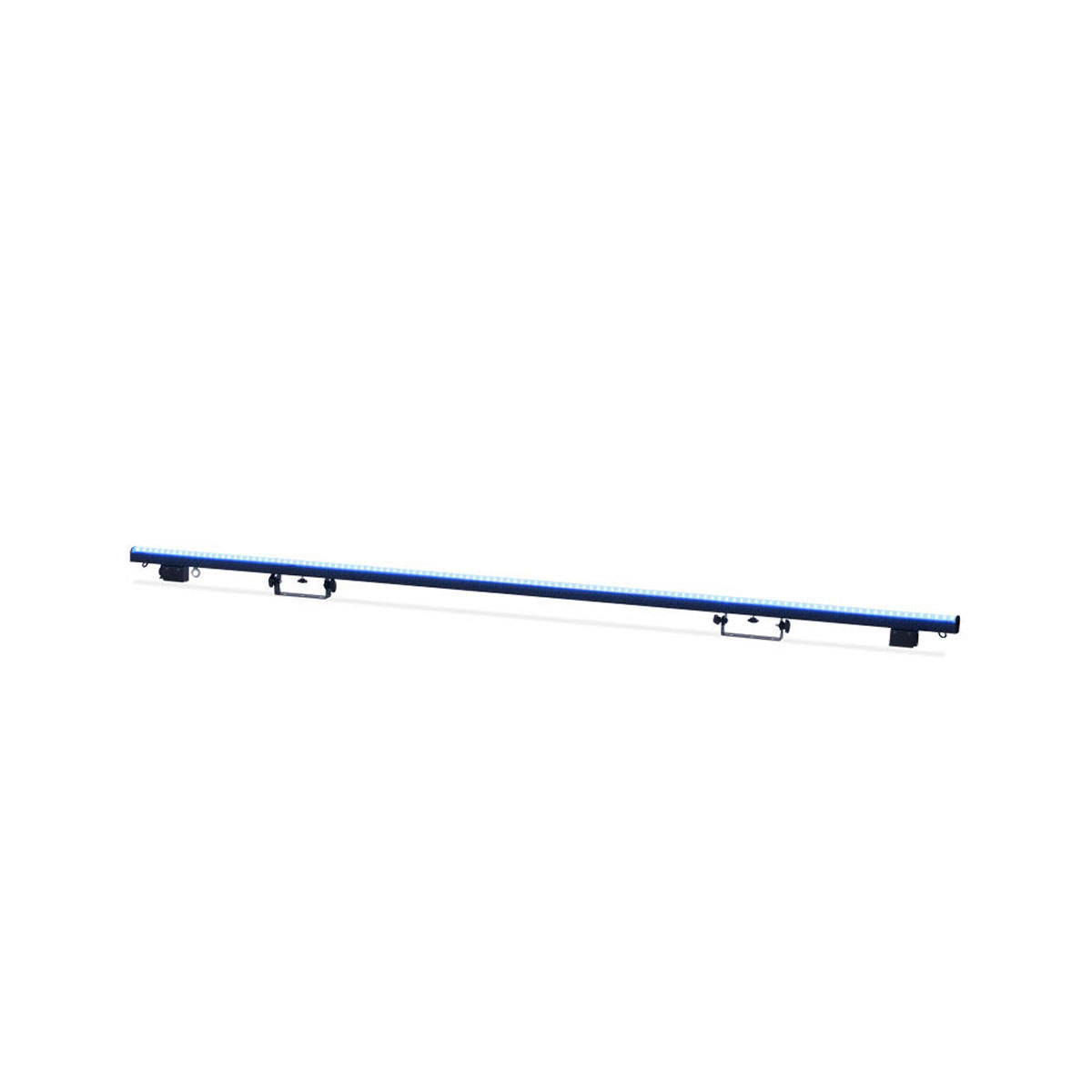

The PIXEL BAR 120IP is an outdoor IP65 rated LED pixel bar featuring (120) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 2 meter (6.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.Easy and versatile control options are handled by the PIXEL DRIVER 4000 V2 and PIXEL DRIVER 1000IP (sold separately) which provides simple on-board manual dimming and strobe

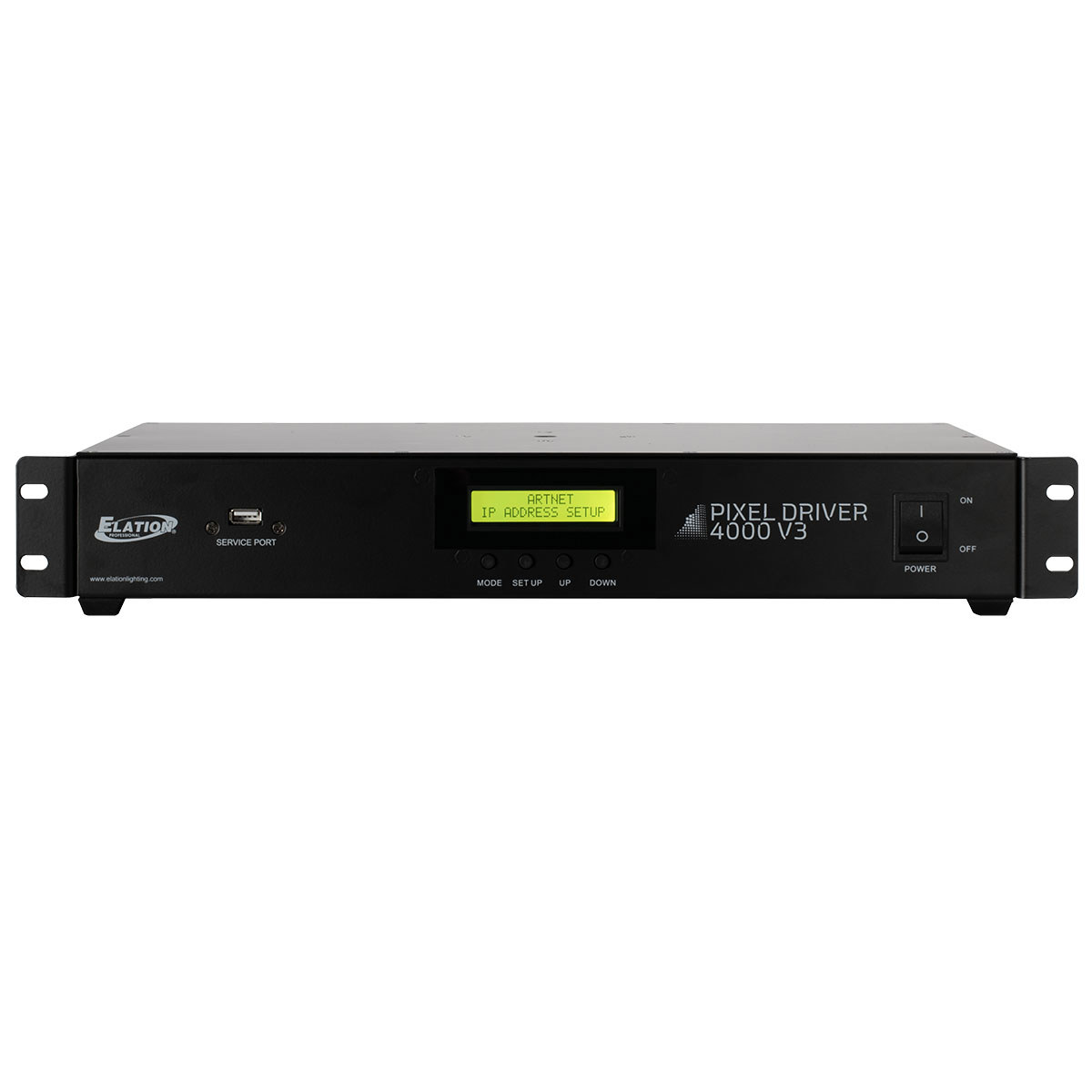

PIXEL DRIVER 4000 V3 is designed specifically for the Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, 120IP series and PIXEL WASH 40IP, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels, 1,020 pixels per port, via Kling-Net, Art-Net and sACN (streaming ACN) protocols.The PIXEL DRIVER 4000 V3 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel product, (available in lengths from 2 to
