Mixing Desks Rolls

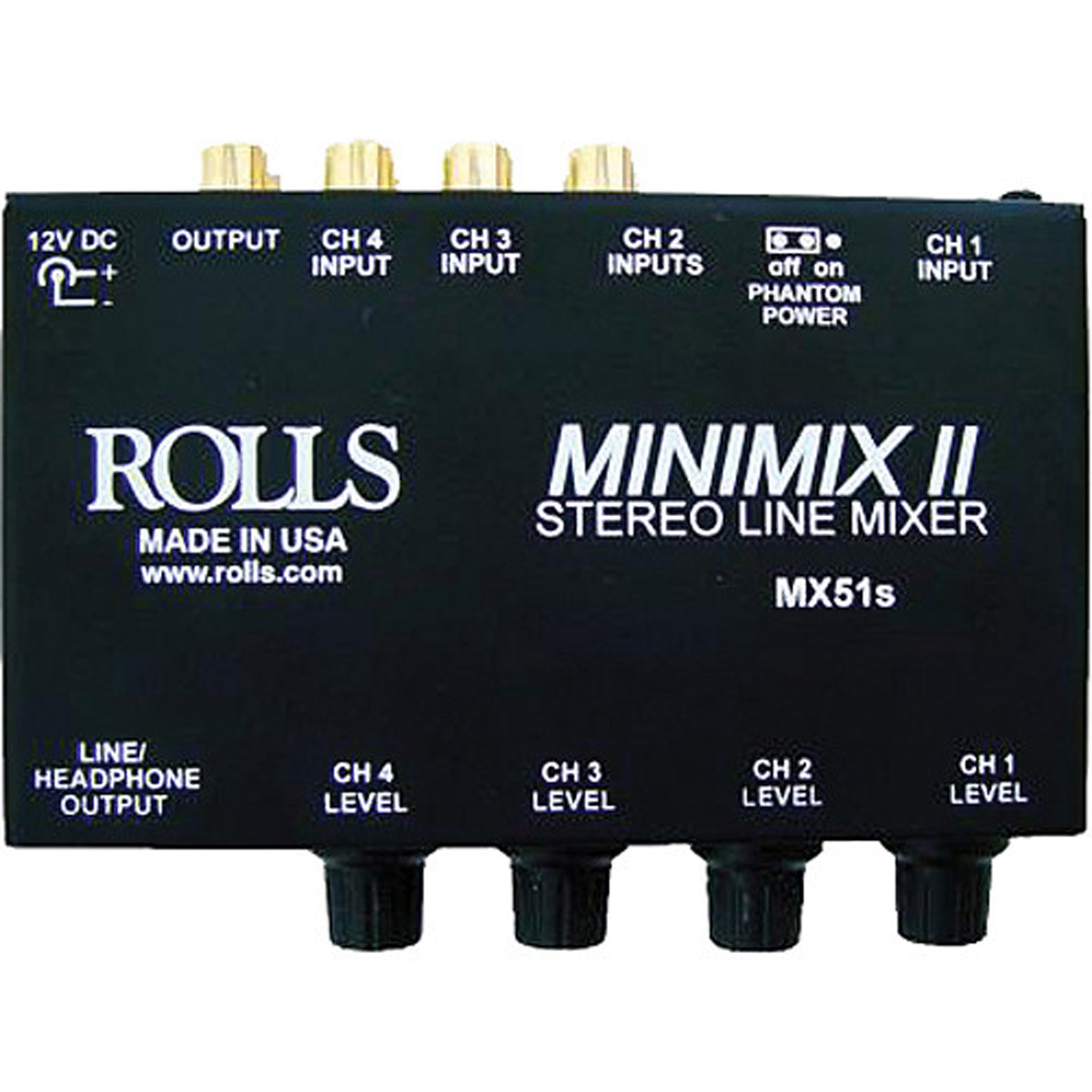

Rolls' MX51s Mini Mix 2 is a compact, four-channel mixer with individual volume controls, and a headphone/line output. The unit has one XLR input along with an 1/8" input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8" jacks. The MX51s is powered by an included ROLLS PS27 12 VDC adapter.FeaturesFor mixing an XLR or 1/8" input with up to three RCA input signals4 channels totalLine/headphone outputPower adapter includedStere RCA line-level outputSpecificationsInput Impedance: 10K Ohms unbalanced each jackCH 1 Gain: 32 dB XLR jack (highest gain)Phantom Power: for CH 1 microphone XLRCh 2 Gain: 26 dB 1/8" and RCACh 3 and …

The Rolls DB226 is a small adapter with an all metal chassis. Designed to convert a stereo line level signal to a balanced mono output. The DB226 can also convert a balanced mono input to a mono RCA output.Rolls DB226 Features:Plugable screw terminal for the balanced sideRCA input or outputSmall compact designMade in USARolls DB226 Specifications:40 - 20K Hz response+4dB max level Rolls DB226 Stereo Line to Balanced Mono Converter.

The Rolls CPB7 is a smartphone breakout box which allows you to conect various inputs and outputs to your smartphone, and is completely passive and requires no external power source to use. The powder coated steel chassis ensures that the CPB7 will be able to handle the rigors of travel. A cable to connect a smartphone to the CPB7 is included with the purchase of this unit. Rolls CPB7 Smartphone Breakout Box.

The DU30b is a microphone preamp and background music preamp. When an announcement is made into the microphone, the music is automatically “ducked” under the announcement. Then the music is brought back to it’s previous level.Features:Automatically ducks music under announcementsPerfect for restaurants and small clubsClean, Quiet Mic PreampSpecifications:Frequency Response: 20 Hz - 40 kHzInput Impedance: 100K Ohms unbalanced, 600 Ohms balancedTHD + Noise:< 0.03% typicalNoise Floor: -78 dBIndicators: Power LEDInput/Output jacks: XLR balanced output, RCA unbalanced input and outputPower: 12 - 16 VDC 50mA, 5 x 1.2 mm DC Jack - Center NegativeDimensions: 4" x 4" x 1.5"Weight: 1 lb. (0.5 kg) Rolls DU30B Microphone Preamplifier / Audio Ducker.…

The MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4"input for the right and left sides, and the outputs are individual right and left 1/4" jacks. Each channel has a level and pan (balance) control. The master level controls the output volume and the headphone level controls the level to the two headphone outputs.Features:Three stereo inputs - 2: 1/4" unbal per channelIndividual 1/4" Right and Left outputsPan control for each channelTwo Headphone outputsSpecifications:Input Impedance: 10K ohmOutput Impedance: 100 ohmMax Gain: +27 dBVMax Input Level: +30 dBVMax Output Level: +13 dBFrequency Response: 20Hz - 20kHz +/- 1 dBVTHD + Noise:< .005%Power: 12 VDC 150 mA adapter (center negative)Dimensions (W x D x H): 4.25" x 1.75" x 4.5"Weight: 1.2 lbs. (0.49 kg) Rolls MX28 3-Channel Stereo Mixer.…

The Rolls DA134 is a four channel RCA distribution amplifier with RCA and 1/8” inputs that can be switched from mono or stereo. The DA134 Distribution Amplifier will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.Rolls DA134 Features:Expands the output of a stereo device to multiple outputsCan raise the output level to true line level for any outputStereo 4 channel distribution amplifierFront panel volume controlsMono or Stereo operationDC low end frequency for audiophile frequency responseSmall compact …

The MX153 is a one-half rack space, two microphone and three stereo source mixer. The unit provides a compact and efficient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones. Applications include background music and paging for small clubs, churches, schools, restaurants, etc. Each microphone channel has a Level and Tone control. Sources One and Two have Level adjustments and pass through combined Bass and Treble controls. Source Three has a Level adjustment only. The Microphone inputs are balanced XLR jacks, all Source inputs are stereo RCA except for the front 1/8 jack on CH3 for an MP3 player, etc. The main output is stereo RCA. An …

The Rolls RM69 MixMate 3 is 6-channel, 1U electronic audio mixer with 2 microphone inputs and 4 stereo line inputs. It's ideal for installs where space is a consideration, but with no compromise in audio quality. A front-panel 3.5mm jack has been included for connection to any standard MP3 player's headphone output.Rolls RM69 Applications:Small restaurantsSmall night clubsSmall places where space is a considerationRolls RM69 Features:(2) XLR mic inputs (including a paralleled front-panel input)Individually switchable phantom power(4) stereo source inputs (4 RCA and one front-panel 3.5mm)¼" TRS mic insert jackStereo RCA and XLR outputsRolls RM69 Specifications:Input Impedance:Mic: 600 …

Rolls' RA63b is an 8-channel mono, or four channel stereo distribution amplifier designed for the contractor/install market. The outputs are designed to drive high-level balanced lines in a sound distribution system. The screw terminals on the rear panel are for input and output, and each output may power more than one line.Rolls RA63B Features:Mono or Stereo Operation - mono input to eight outputs, or stereo inputs to four stereo outputs+20 dB Gain switchScrew Terminal inputs and outputsThe RA63b replaces the old RA63s. The new ra63b has all the same features, but has an easy access stereo mono switch.Rolls RA63B Specifications:Input Impedance: 100 K Ohms balancedMax Input Level: +22 dBVI/O …

The Rolls RM64 Four Zone Mixer combines two paging microphones with up to four line level source inputs. Each input is switch selected to output to any combination of four zone outputs. The outputs are all balanced XLR connectors, and a 1/4" Remote Volume jack provides each zone with the means for external volume control. The Microphone inputs feature automatic ducking for easy paging. The RM64 is the ideal solution for banquet rooms, offices, restaurant/night clubs, etc.FeaturesTwo mic inputs with trim controlsFour RCA source inputsFour balanced XLR zone outputsAutomatic pagingRemote volume for each outputSpecificationsInput Impedance: 10 kOhms balanced, 50 kOhms unbalanced RCAOutput Impedance: …

Rolls' RM67 is a single-rackspace mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable Duck Sensitivity is available on one microphone for paging, and on one Source input for use on a jukebox. telephone system, etc. Each Microphone input has a level and tone control, and each Source input has a level control. Bass and Treble controls have been provided for all the sources, and a Master Output Level control adjusts the level of all …

The Rolls RM82 is an eight-channel mixer in a single-rackspace design, intended for a variety of sound reinforcement applications including board rooms, churches, mixing console expansion, etc. Virtually any application where up to eight microphones need to be mixed together, and space is limited, is met by the RM82. Each of the eight channels has an XLR microphone input, as well as a 1/4" unbalanced input. The 1/4" jacks may be internally reconfigured to become channel Inserts or Direct Outputs. Inserts provide a way to get each individual channel signal in and out of the RM82 mainly for processing purposes. A Direct Output is simply taking the signal from the channel only. Each channel has …

The Rolls RM424 Four-Zone Mixer combines two paging microphones with two line level source inputs. Each input is switch selected to output to any combination of four zone outputs. The outputs are all balanced XLR connectors, Remote Volume provides each zone with the means for external volume control. The Microphone inputs feature selectable ducking for paging. Front panel speaker makes pre assignment monitoring for each channel possible with individual switching for each channel. The RM424 is easy for anyone to use from the front, but from the rear it is just complex enough it will fill even the most demanding four zone installation requirements. With the included external power supply the RM424 …

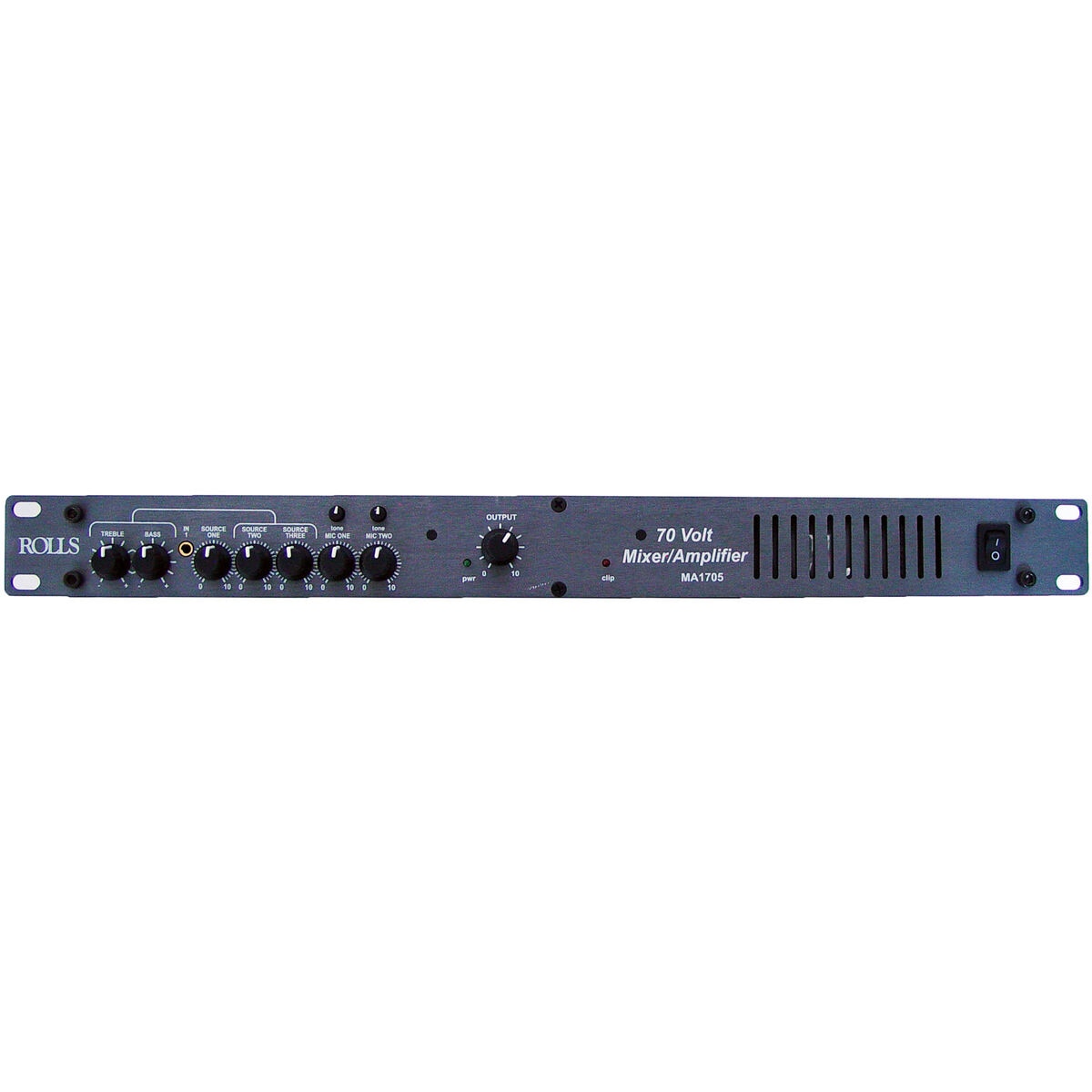

The Rolls MA1705 is a single rack space mixer amplifier designed for installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talkover is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power amplifier provides 70 Watts of power when connected to a 70 volt speaker system.FeaturesTwo mic inputs with phantom power and independent tone controlsThree stereo source inputs (mixed to mono) with bass/treble controls on sources 2 and 3Priority ducking on Mic 2 and Source 1Dual pre-master level Record OutputBalanced 70V line outputSpecificationsMixer …
