Watts 0009486 LFN45B 3/4" Water Pressure Reducing Valve with CPVC Connections Valves Specialty Valves Pressure Relief Valve

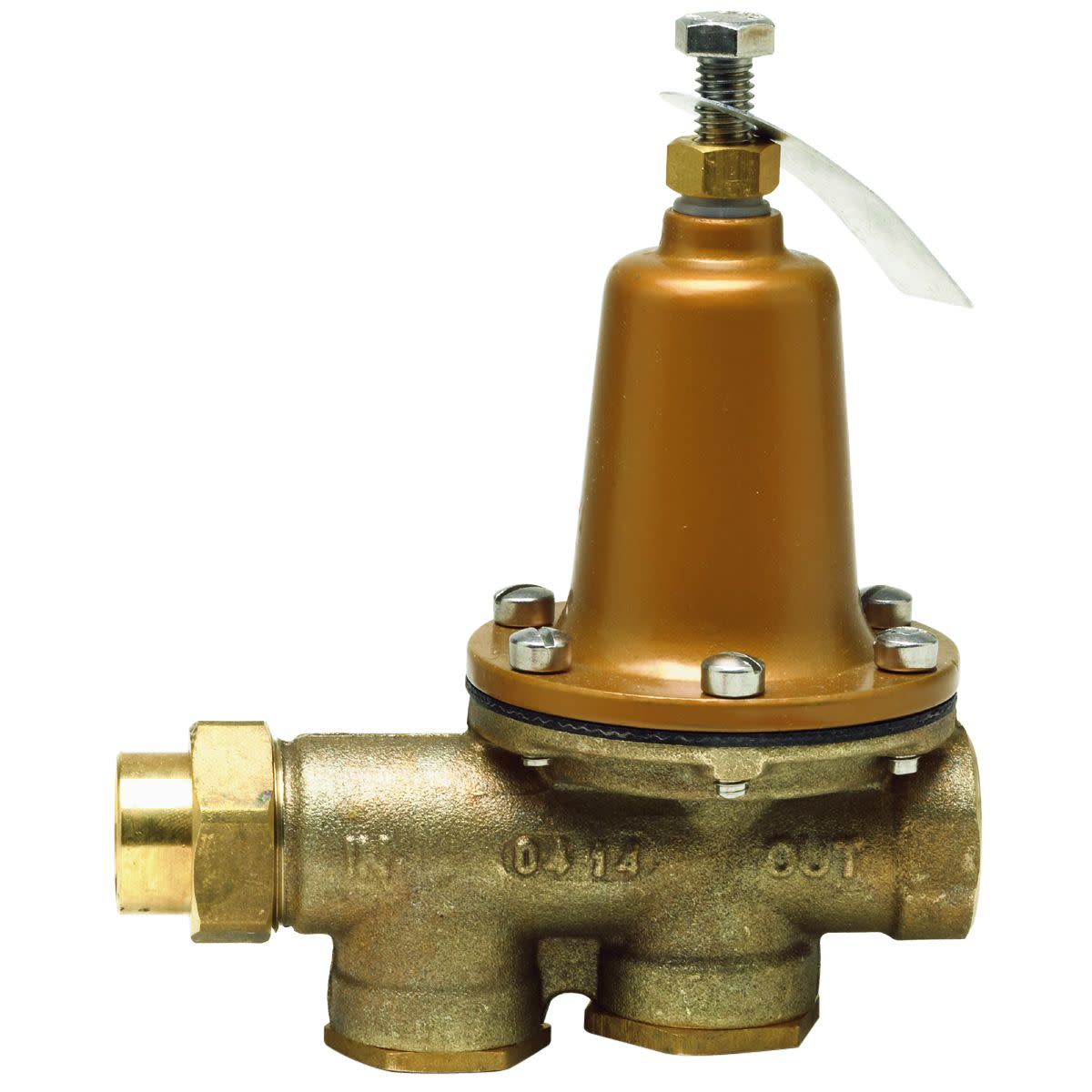

Watts 0009486 LFN45B 3/4" Water Pressure Reducing Valve with CPVC Connections LFN45B 3/4" Water Pressure Reducing Valve with CPVC Connections Series N45B water pressure reducing valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. This series is suitable for water supply pressures up to 300psi (20.7 bar) and may be adjusted from 25 – 75psi (172 – 517 kPa). The standard setting is 50psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.Watts 0009486 Features: Double union inlet and outlet connections Integral stainless steel strainer Thermoplastic seat and cage Bronze body construction Serviceable in line Bypass feature controls thermal expansion pressure Sealed spring cage on all models for accessible outdoor or pit installationsWatts 0009486 Specifications: Height: 6-1/4" Length: 5-1/16" Width: 2-1/4" Material: Bronze Connection Size: 3/4" Connection Type: CPVC / CPVC Weight: 2.1 lbs. Pressure Relief Valve N/A
