KIT Metalbest 6T-EL30KIT Ultra-Temp 6" Class A Chimney Pipe 30 Degree Elbow Stainless Steel Vent Pipe Class A Elbow 206211

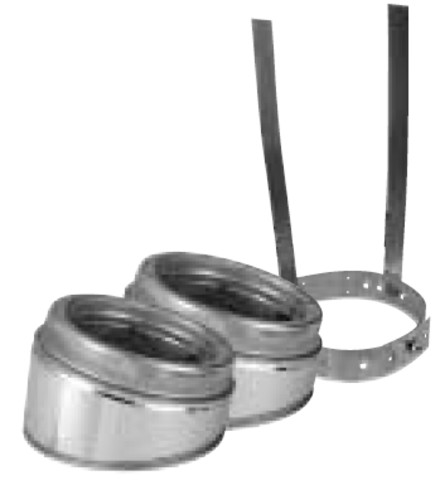

Metalbest 6T-EL30KIT Ultra-Temp 6" Class A Chimney Pipe 30 Degree Elbow Kit 6" Class A Chimney Pipe 30 Degree Elbow Kit from Ultra-TempThis elbow kit contains two 30° elbows, two locking bands and one interior resupport. When creating an offset in the chimney pipe system, calculate the offset to determine the elbow angle. Locking bands are to be used at each joint. The interior resupport is designed to provide support above an offset where the upper elbow connects to the next pipe length. The elbows rotate 360° to provide the exact orientation required. The 30° Insulated Elbow in 5", 6", 7" and 8" sizes can be used for fixed offsets of 30° slope. Greater angles are prohibited by UL Standard 103 and by the terms of the product listing.Ultra-Temp is designed for all-fuel applications and comes with 430 stainless steel outer casing. Ultra-Temp chimney pipe is insulated with 1" solid pack and UL Listed to UL-103 HT standards. These parts feature an advanced engineering design, offering 300 Series stainless steel inner pipe and 1-inch Mineral Wool Fibre insulation.Features:Materials: Stainless steelClearance: 2" to combustiblesAllowable Flue Gas Temperatures:Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees CelsiusBrief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)Creosote Burn Out: 2,100 Degrees Fahrenheit / 1,150 Degrees Celsius (3 x 10 min.)UL Listed: UL-103Warranty: Lifetime Limited WarrantyIncludes 2 elbows and 1 interior resupport77900 Elbow Stainless Steel
