Risen RSM40-8-395M 395 W

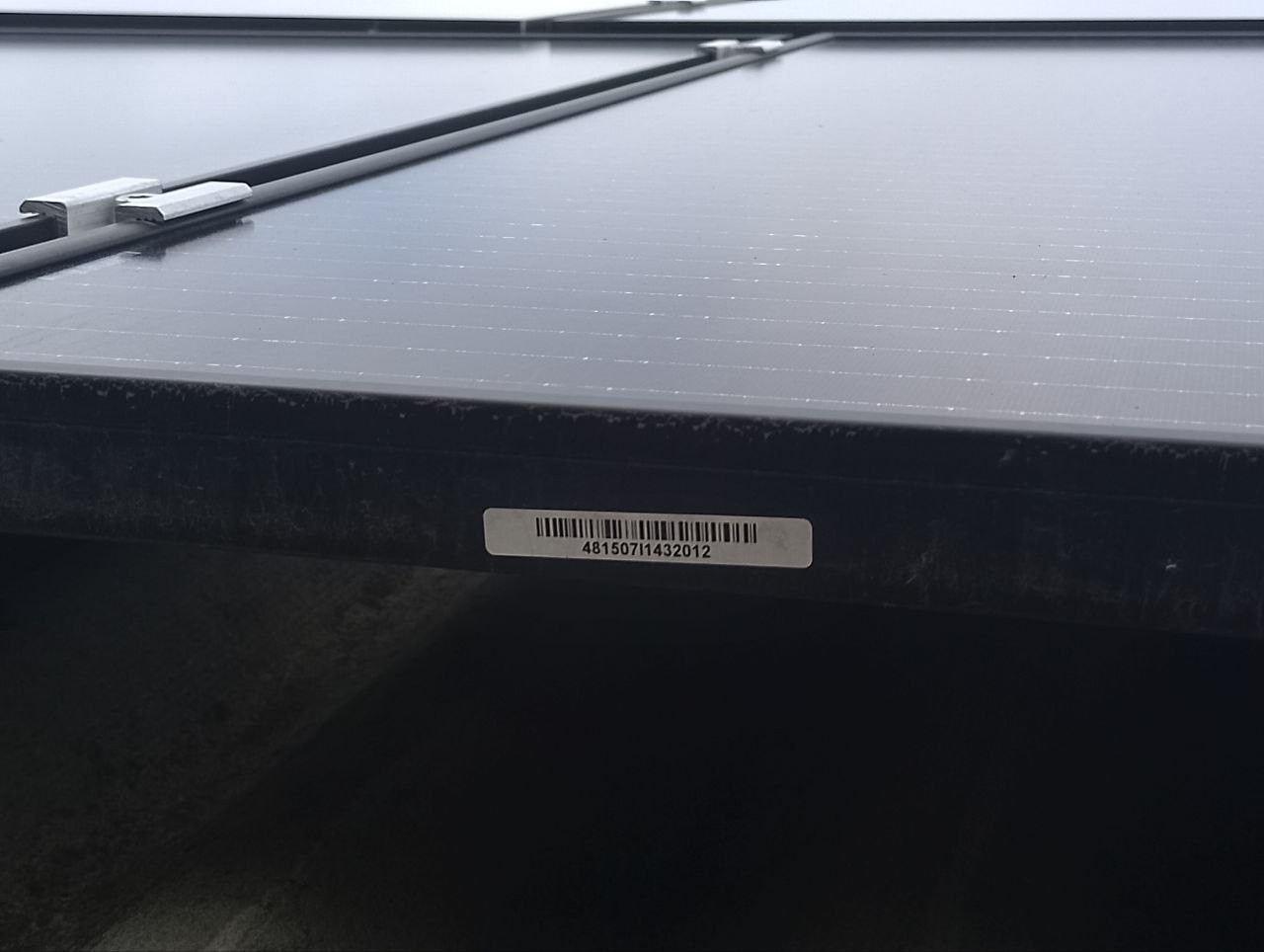

Photos - Solar Panel Risen RSM40-8-395M 395 W
Photos 8
Outdated Product
Features: stationary; Type: monocrystalline; Power (Pmax) (W): 395; Nominal voltage (Vmp): 34.14; Nominal power (Imp) (A): 11.58; Open-circuit voltage (Voc) (V): 41; Short circuit current (Isc) (A): 12.27; Efficiency (%): 20.5; USB A: USB C: MC4 connector; Dimensions (mm): 1754x1096x30
add to listmy lists
Risen RSM40-8-395M 395 W
Main
Featuresstationary
Typemonocrystalline
Specs (STC)
Power (Pmax)395 W
Nominal voltage (Vmp)34.14 В
Nominal power (Imp)11.58 А
Open-circuit voltage (Voc)41 В
Short circuit current (Isc)12.27 А
Efficiency20.5 %
Specs (NOCT)
Power (Pmax)299 W
Rated voltage (Vmp)31.68 V
Rated current (Imp)9.45 А
Open circuit voltage (Voc)38.13 V
Short circuit current (Isc)10.07 А
Features
MC4 connector
WaterproofIP68
Operating temperature-40 °C ~ +85 °C
General
Number of cells120 / 9BB /
Dimensions1754x1096x30 mm
Weight22 kg
Added to E-Catalogaugust 2023
The information in the model description is for reference purposes.
Always clarify the specifications and configuration of the product with the online store manager before purchasing.
