Pezal PGG3200Xs

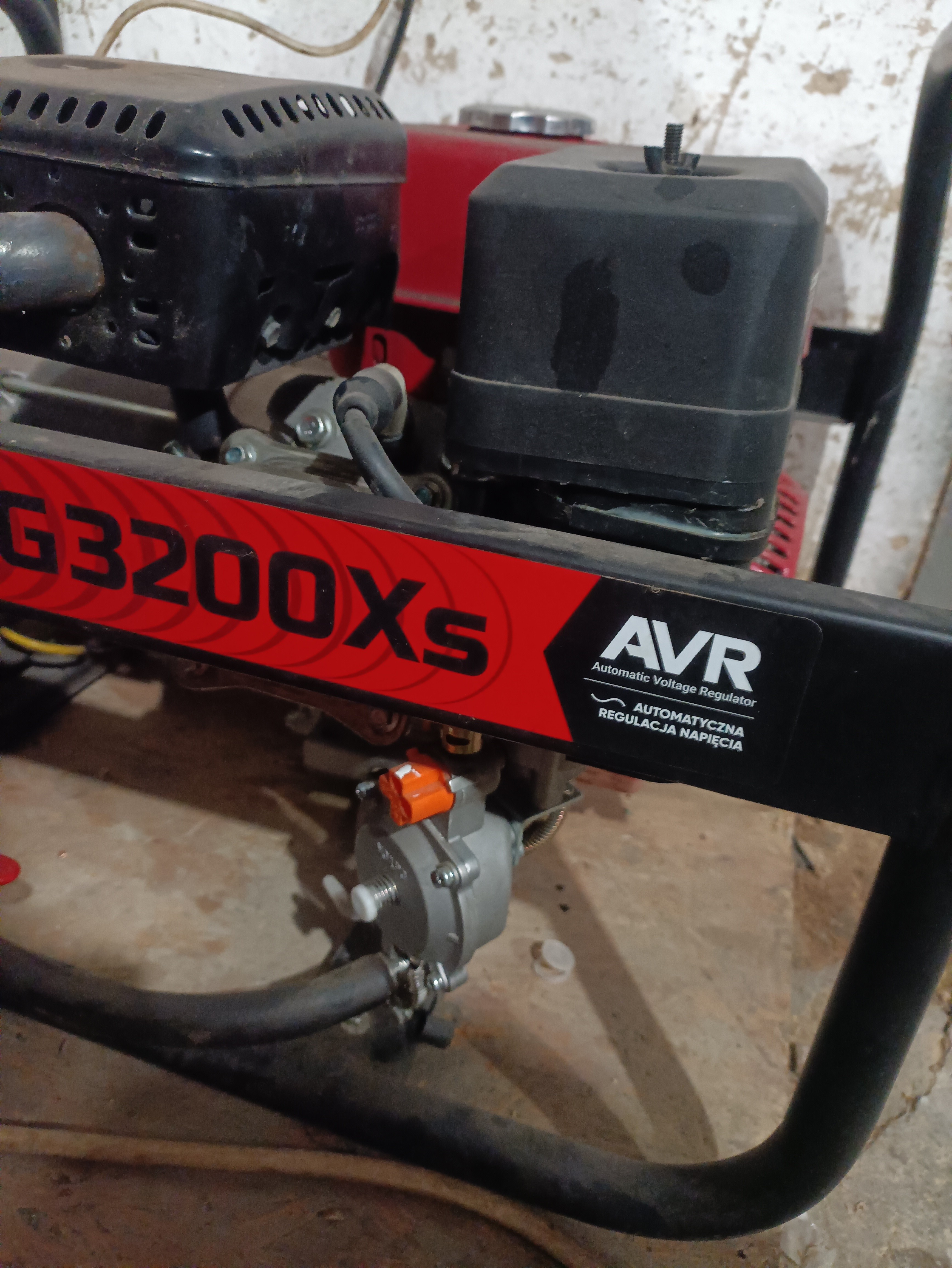

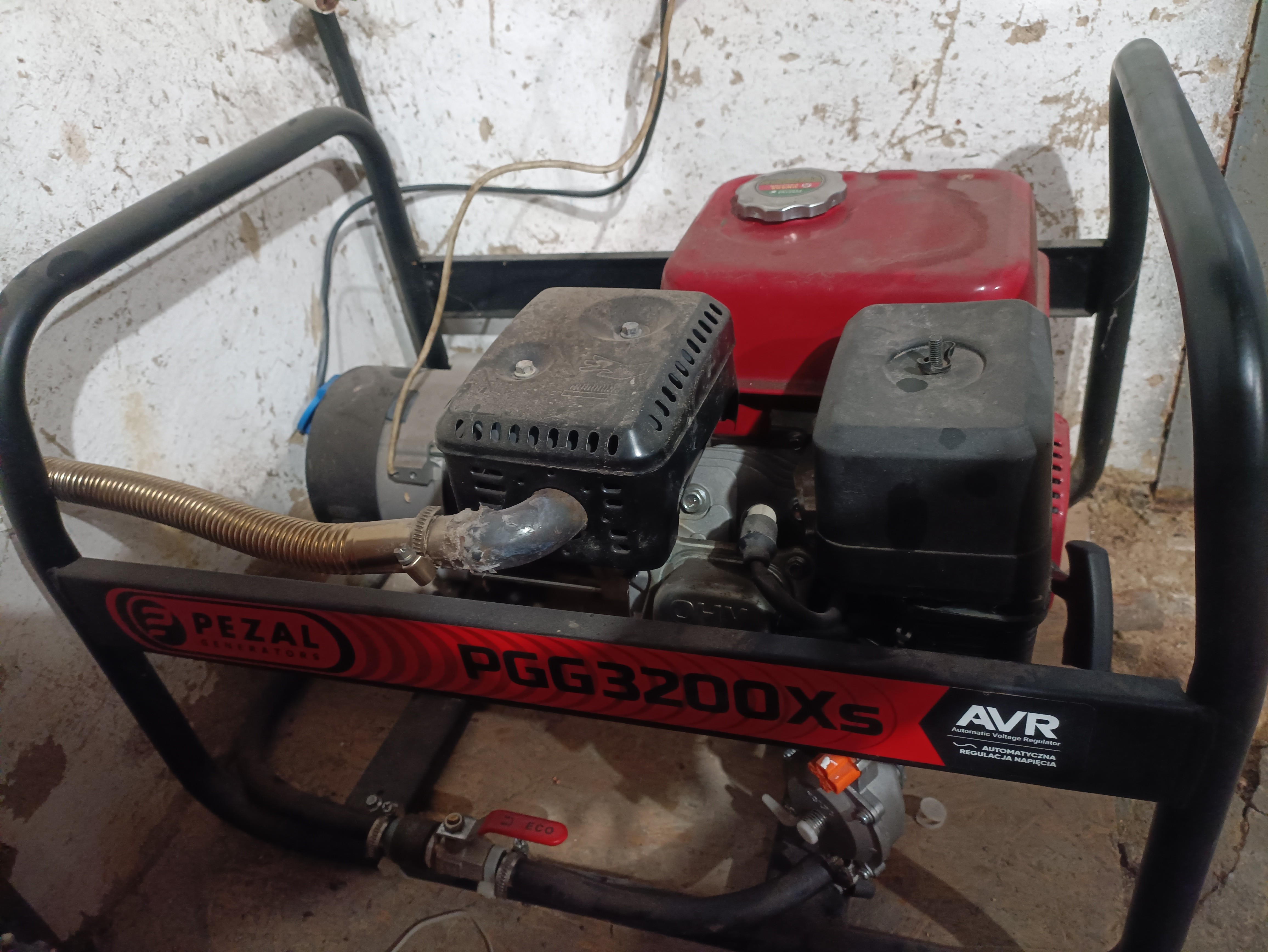

Photos - Generator Pezal PGG3200Xs
Outdated Product
Portable gasoline generator for powering construction equipment and power tools or temporary (backup) power supply to objects. Can be used to service loads with a total power of up to 2.7 kW. The device is equipped with a 4-stroke engine with a displacement of 208 cm³ and a power of 5.16 hp. The internal combustion engine is started using a manual starter. When operating at full power, the Pezal PGG3200Xs generator consumes 2.17 liters of fuel per hour (thus, a fully filled gas tank with a volume of 6.5 liters lasts for 3 hours at 100% load). Electricity is generated by a synchronous alternator with automatic voltage regulator (AVR). To connect electricity consumers there are two sockets (230 V, 16 A). Without fuel and oil, the generator weighs 38 kg.
add to listmy lists
Pezal PGG3200Xs
Main
Fuelpetrol
Output voltage230 B
Rated power2.7 kW
Max. power3 kW
Alternatorsynchronous
Engine
ICE type4-stroke
Engine size208 cm³
Power5.16 hp
Starter typemanual
Fuel consumption (100% load)2.17 l/h
Fuel tank volume6.5 L
Motor coolingair
Connection (sockets)
Total number of sockets2
Sockets 230 V16 A x2
Features
Featuresautomatic voltage regulator (AVR)
General
Protection levelIP 21
Dimensions620x490x510 mm
Weight38 kg
Added to E-Catalogdecember 2022

Portable gasoline generator for powering construction equipment and power tools or temporary (backup) power supply to objects. Can be used to service loads with a total power of up to 2.7 kW. The device is equipped with a 4-stroke engine with a displacement of 208 cm³ and a power of 5.16 hp. The internal combustion engine is started using a manual starter. When operating at full power, the Pezal PGG3200Xs generator consumes 2.17 liters of fuel per hour (thus, a fully filled gas tank with a volume of 6.5 liters lasts for 3 hours at 100% load). Electricity is generated by a synchronous alternator with automatic voltage regulator (AVR). To connect electricity consumers there are two sockets (230 V, 16 A). Without fuel and oil, the generator weighs 38 kg.

Information in model description is for reference purposes.
Before buying always check characteristics and configuration of product with online store manager
