LONGi LR7-72HVH-645M 645 W

Photos - Solar Panel LONGi LR7-72HVH-645M 645 W
Photos 4
Outdated Product
Features: stationary; Type: monocrystalline; STC Power (Pmax) (W): 645; Nominal voltage (Vmp): 44.46; Nominal power (Imp) (A): 14.51; Open-circuit voltage (Voc) (V): 53.8; Short circuit current (Isc) (A): 15.21; Efficiency (%): 23.9; USB-A: USB-C: MC4 connector; Dimensions (mm): 2382x1134x30
add to listmy lists
LONGi LR7-72HVH-645M 645 W
Main
Featuresstationary
Typemonocrystalline
Specs (STC)
STC Power (Pmax)645 W
Nominal voltage (Vmp)44.46 В
Nominal power (Imp)14.51 А
Open-circuit voltage (Voc)53.8 В
Short circuit current (Isc)15.21 А
Efficiency23.9 %
Specs (NOCT)
NOCT Power (Pmax)491 W
Rated voltage (Vmp)42.25 В
Rated current (Imp)11.63 А
Open circuit voltage (Voc)51.13 В
Short circuit current (Isc)12.22 А
Features
MC4 connector
WaterproofIP68
Operating temperature-40 °C ~ +85 °C
General
Number of cells144 (6x24)
Dimensions2382x1134x30 mm
Weight28.5 kg
Added to E-CatalogAugust 2025
The information in the model description is for reference purposes.
Always clarify the specifications and configuration of the product with the online store manager before purchasing.
Catalog LONGi 2026 - new arrivals, bestsellers, and the most relevant models LONGi.
How to choose a solar panelWe choose reliable solar panels with high efficiency over many years and a minimum payback period
Cool and high-quality panels. I hope for long-lasting performance.
30 June 2026

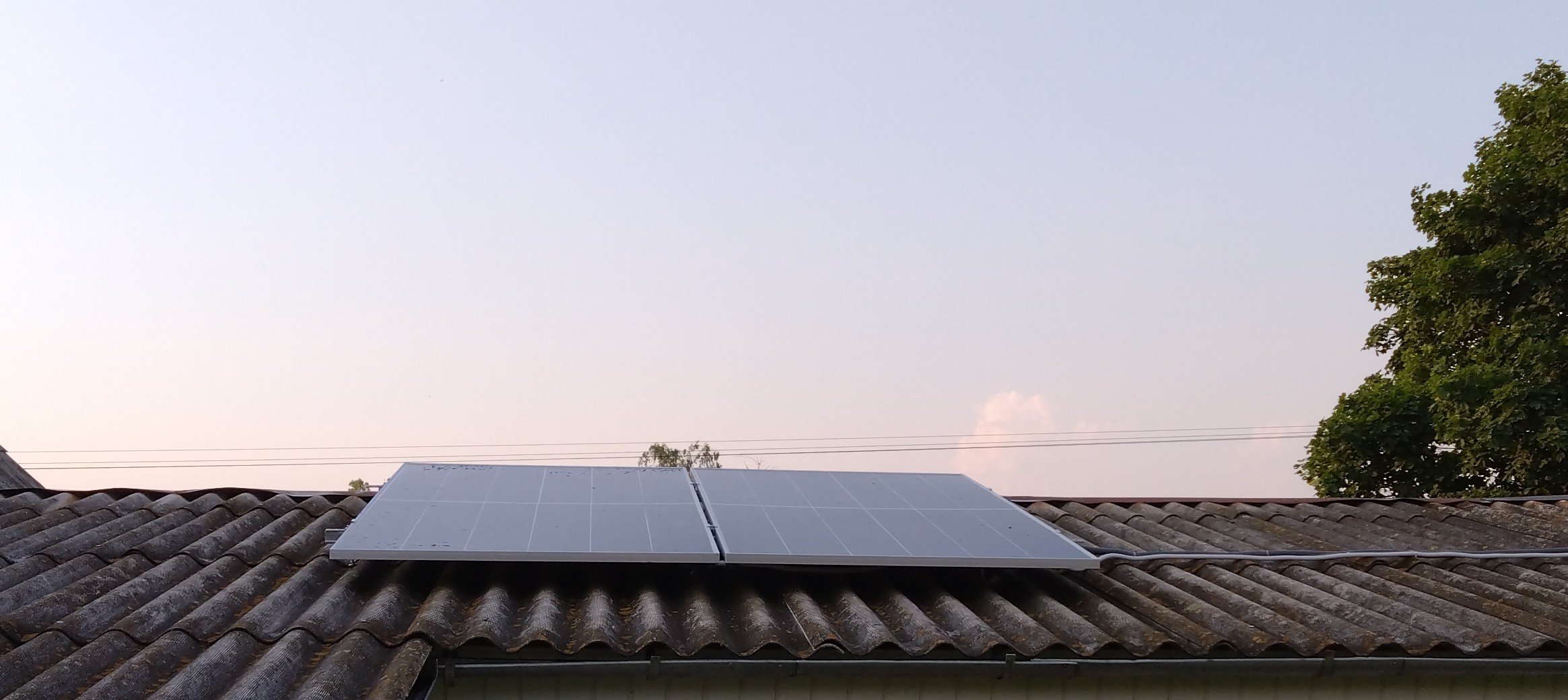

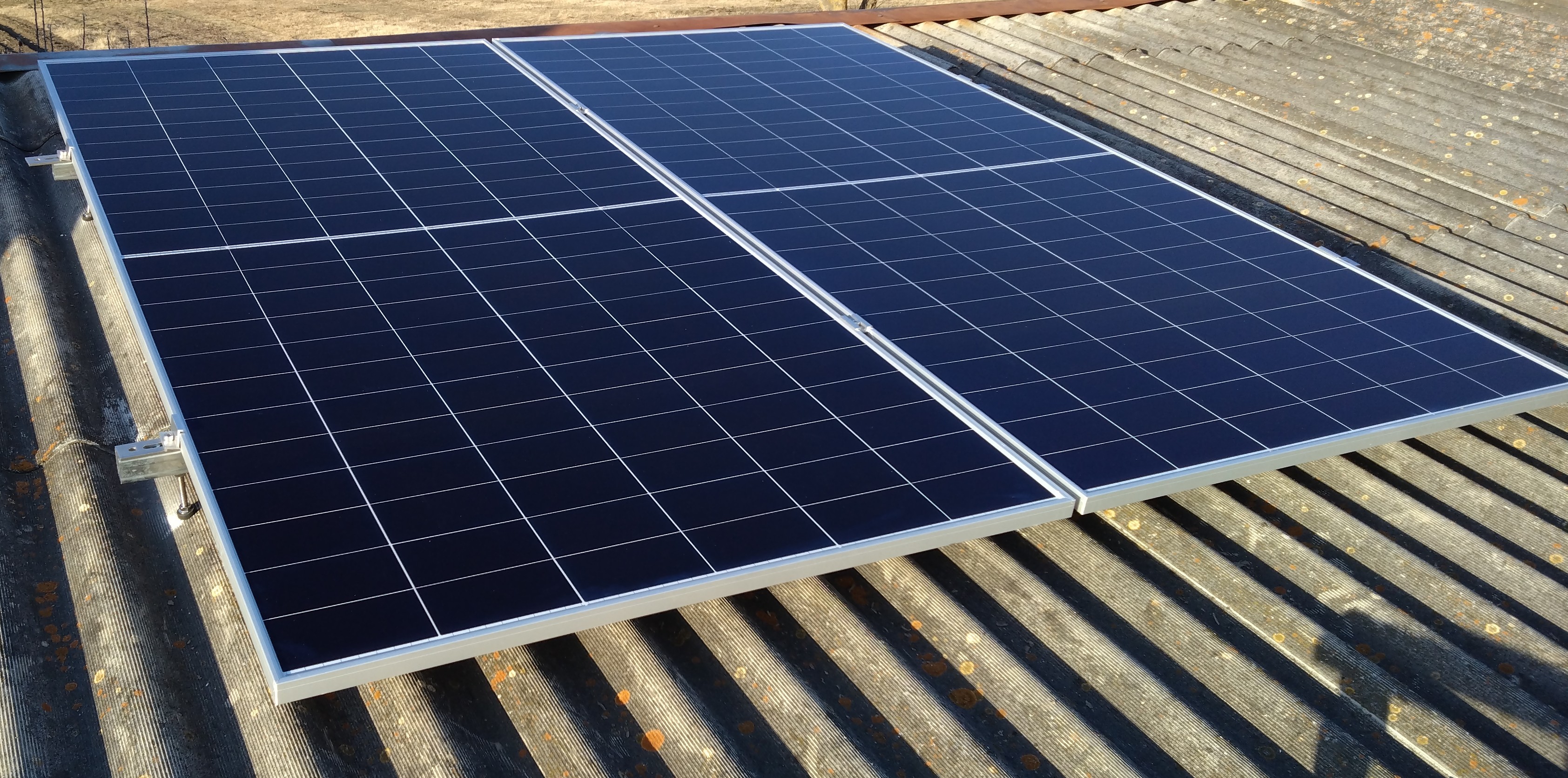

After winter power outages, I decided to set up minimal backup power for the house. I chose to install 2 panels with a hybrid inverter from Anern and a 140 Ah battery. I was looking for panels with high nominal voltage because the inverter starts at 30 V, and I only have 2 panels. The panels arrived via Nova Poshta, were well-packaged, though the delivery cost was astronomical. I installed them myself and also lifted them onto the roof (an upside-down ladder and a rope do wonders). The roof has a slight angle (20 degrees) with a slope to the south (a plus during installation, but a minus for winter operation and generation). The roof is made of slate. Installation was quick and trouble-free, using a galvanized profile with factory mounts. I had no experience in this, so I had to watch a lot on YouTube, installation instructions, etc., and used AI to discuss any unclear questions. It has been working for 4 months without any issues. I used "solar" cables, 6 square millimeters (in case I want to add panels in the future). I installed a pre-fabricated box with "breakers" between the panels and the inverter. The panels were grounded.
I decided to choose these because they had a number of advantages:
- A well-known manufacturer and one of the market leaders
- High level of efficiency in converting solar energy into electricity: 24.1%
- New model (released in 2025, purchased in February 2026)
- Many new technologies, developments, and implementations used (if one believes the official website)
- High power
- Generates quite well in cloudy weather, during light summer rain can generate 100-150 W/h with 2 panels. In cloudy summer weather without rain - up to 500 W.
The maximum generation of these two panels (with a nominal total power of 1300 W) that I observed was 1190 W (in the north of the Zhytomyr region). Whereas according to NOCT testing, the maximum is 990 W. In June, they generate 5 W as early as 5:40 AM (a funny figure, but the very fact pleased me).
They have already been tested by strong gusty winds, light hailstorms, thunderstorms - everything works. I wash them with a car brush (with soft bristles) and clean water from a hose + connect the hose to the car brush. It takes some effort, but they become clean. I haven't used detergents. I wash them once a month. Sometimes, I might additionally wash them spot-clean if birds make them very dirty. Dirt and bird droppings wash off relatively easily.
I would like a more detailed installation guide from the manufacturer.
Vladislav Muse LONGi LR7-72HVH-650M few months
